Fuel system generator assembly – Winco EC6010DR/R User Manual
Page 13
Page 11
60706-176
REF
PART NBR.
QTY
DESCRIPTION
5
72300-003
1
Hose Fitting
6
72303-001
1
Bulkhead Fitting
7
95145-001
1
Plug
8
40078-000
8"
Fuel Hose
9
81018-009
1
Hose Clamp
10
56879-000
1
Elbow Fitting
11
63644-000
1
#10-24 X 1/2 Screw
12
99671-000
1
#10 Flangenut
13
59944-016
1
Relay (12V)
14
99407-001
1
Engine Wiring Harness
15
463-000
2
1/4-20 X 1/2 Capscrew
16
16248-000
2
1/4-20 Flangenut
REF
PART NBR.
QTY
DESCRIPTION
1
81332-001
1
Fuel Pump
2
15799-001
1
Mounting Bracket
3
81018-009
1
Hose Clamp
4
40078-000
25"
Fuel Hose

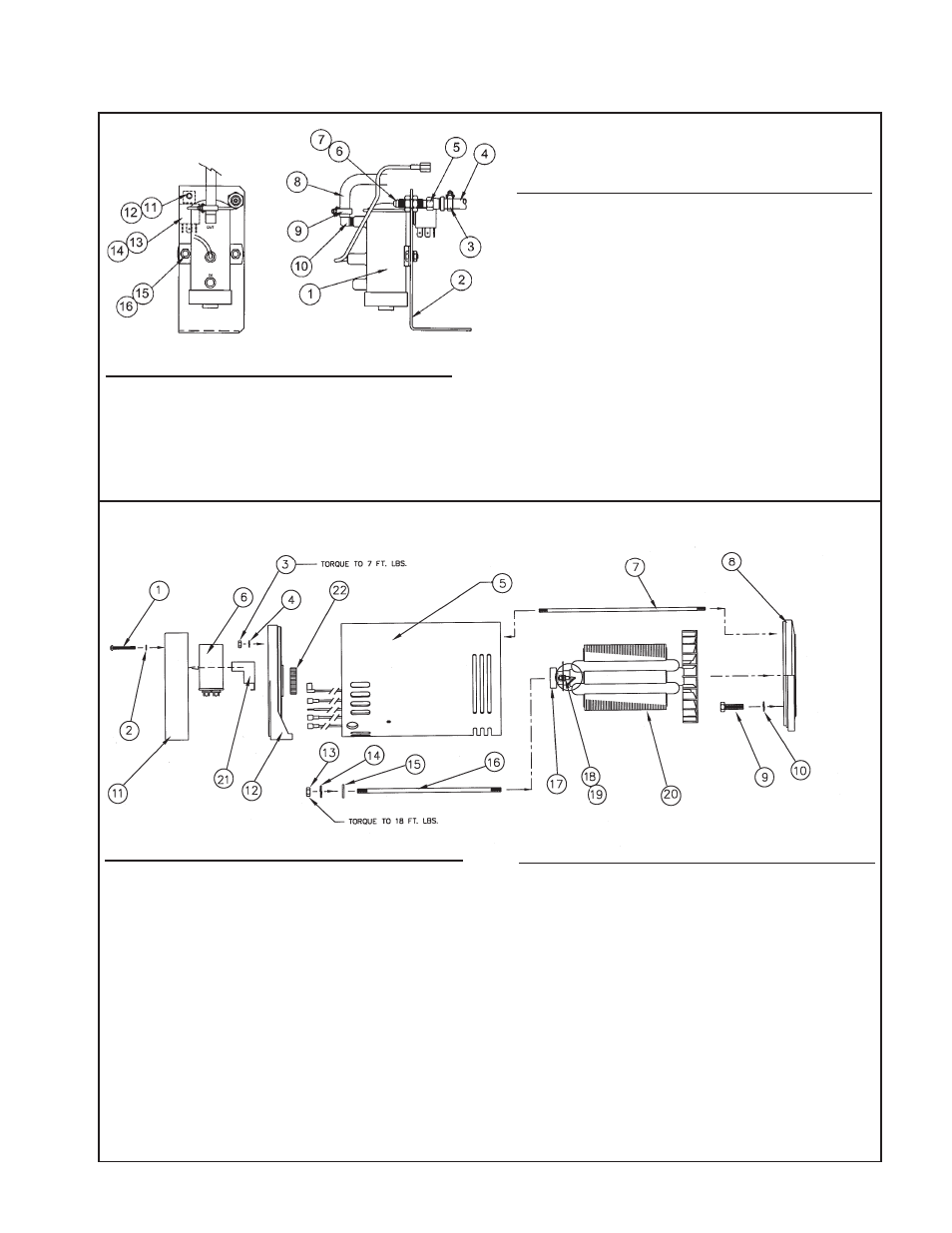

FUEL SYSTEM
GENERATOR ASSEMBLY
REF
PART NBR.
QTY
DESCRIPTION
1
15013-000
4
#10-32 X 3.5” Screw
2
21975-000
4
#10 Lockwasher
3
15192-000
4
¼ -20 Hex Nut
4
479-000
4
¼ Lockwasher
5
15857-000
1
Stator, Complete
6
15051-000
2
Capacitor
7
15068-008
4
¼ - 20 Stator Bolts
8
15008-001
1
Engine Mounting Bracket
9
96002-040
4
M8-1.25 X40MM Bolt
10
97436-008
4
M8 Lockwasher
11
15106-000
1
End Cover Bare
12
15156-003
1
Bearing Bracket
REF
PART NBR.
QTY
DESCRIPTION
13
15193-000
1
5/16” Hex Nut
14
480-001
1
5/16” Lockwasher
15
23558-000
4
5/16” X 1” DIA. X .125
THK Flat Washer
16
23197-009
1
Generator Thru Bolt
17
50215-000
1
Bearing
18
15047-001
1
Diode, STD
19
15047-002
1
Diode, REV
20
15045-007
1
Rotor, Complete
21
15088-000
1
Capacitor Strap
22
NOT USED
