Winco AVC63-4A - Manual (Page 4)

Publication
9285800991
Revision
C
Instructions
Date
09/12
Page
4 of 4
For terms of service relating to this product and software, see the Commercial Terms of Products and Services document available at www.basler.com/terms .

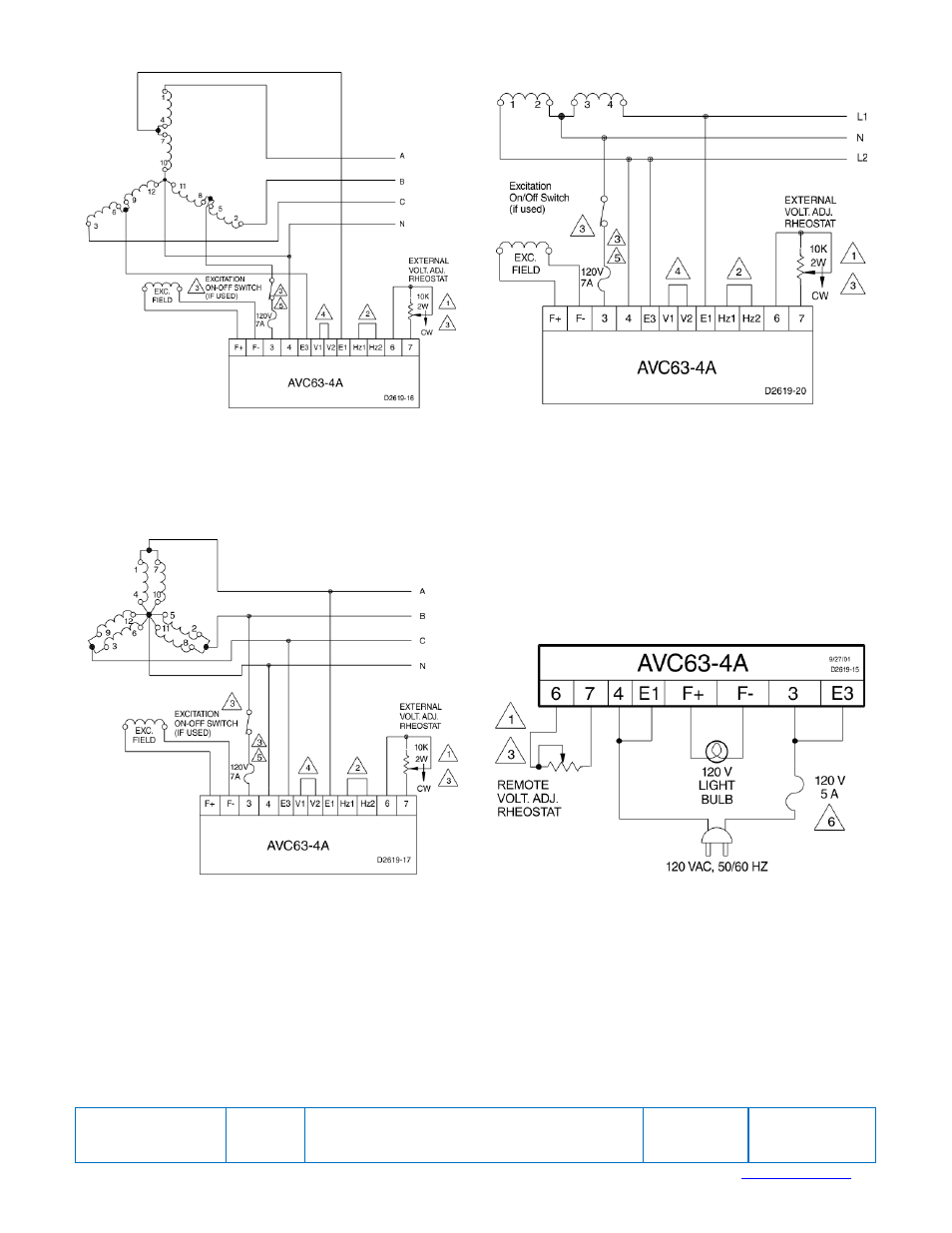

Figure 4. Interconnection Diagram, 277/480 Vac Nominal,
Three-Phase, Four-Wire, Wye Connection
Figure 5. Interconnection Diagram, 120/208 Vac Nominal,
Three-Phase, Four-Wire, Wye Connection
Figure 6. Interconnection Diagram, 120-240 Vac Nominal,
Single-Phase, Three-Wire Connection
Figure 7. Interconnection Diagram, Operational Test
