60706-187 Page 9
7263-00
B - Generator Circuit Breaker, This circuit breaker provides
overload protection for the generator. Your power feeds from the
transfer switch will connect to the bottom lugs on the circuit
breaker. The generator power feeds have already been wired
into the upper lugs.
The table below gives you the circuit breaker size, lug wire sizes
and torque specification. (see the actual breaker for additional
information and restrictions)
kW Voltage PH Amp Wire Capability Lug Torque
75 120/240 1 300 #1 AWG - 600 MCM 375 in lbs
75 120/208 3 250 #1 AWG - 600 MCM 375 in lbs
75 120/240 3 225 #4 AWG - 300 MCM 250 in lbs
75 277/480 3 100 #14 - #1/0 AWG 80 in lbs
50 120/240 1 200 #4 AWG - 300 MCM 250 in lbs
50 120/208 3 175 #4 AWG - 300 MCM 250 in lbs
50 120/240 3 150 #4 AWG - 300 MCM 250 in lbs
50 277/480 3 80 #14 - #1/0 AWG 80 in lbs
Minimum Conductor Sizes between the Generator and the ATS.
Based on wire type and temperature rating. Wire has been
derated for 40
o C ambient temperatures.
CU Conductor AL Conductor
C/B Wire Temperature Rating
kW Voltage PH Amp 75 0 C 90 0 C 75 0 C 90 0 C
75 120/240 1 300 500 MCM 350 MCM 600 MCM 500 MCM
75 120/208 3 250 300 MCM 250 MCM 400 MCM 350 MCM
75 120/240 3 225 300 MCM 4/0 AWG 350 MCM 300 MCM
75 277/480 3 100 #2 AWG #2 AWG 1/0 AWG #1 AWG
50 120/240 1 200 3/0 AWG 3/0 AWG 300 MCM 250 MCM
50 120/208 3 175 3/0 AWG 2/0 AWG 250 MCM 4/0 AWG
50 120/240 3 150 2/0 AWG 1/0 AWG 4/0 AWG 3/0 AWG
50 277/480 3 80 #3 AWG #4 AWG #1 AWG #2 AWG
For additional information on wire sizing refer to table 310-16 of
the National Electrical Code ANSI/NFPA 70.
C - Ground Lug, These ground lugs are bonded to ground and
are provided for you to connect your ground wire from the transfer
switch to. The lugs on the 75 kW will handle wire sizes #4 AWG
to 300 MCM and should be torqued to 250 in. lbs. The lugs on
the 50 kW will accommodate #1 AWG to 250 MCM and should
be torqued to 250 in. lbs.
*************
***** WARNING *****
*************
A main line circuit breaker has been provided inside the genera-
tor housing. During all wiring installations make sure the breaker
is in the off position and the generator operation switch is in the
off position.
*************
***** WARNING *****
*************
EQUIPMENT DAMAGE - When installing a Three Phase 240 volt
system be sure you know which lead is the high voltage "wild" leg
(208Volt line to neutral). The generator normally carries the high
voltage on the G2 lead.
The load current carrying wires (L) and (T) must be sized to
handle the maximum load current without excessive voltage drop.
By code, the wire must be heavy enough to handle the full current
rating of the main line circuit-breaker (or fuse) in the entrance (or
sub-panel) protecting the contactor switch.
All wires should be installed in rigid or flexible conduit. (Knock-
outs are provided in the control box).
See the manual shipped with the Automatic Transfer Switch for
connection locations in the switch. Connections in each switch
will vary depending on the type of switch and the manufacturer.
GROUNDING
A grounding lug has been provided on the engine generator set
and the generator set must be properly grounded to good earth
ground. Generally a 6 foot copper rod driven into the earth will
provide a proper earth ground.
D.C. ELECTRICAL
CONNECTIONS

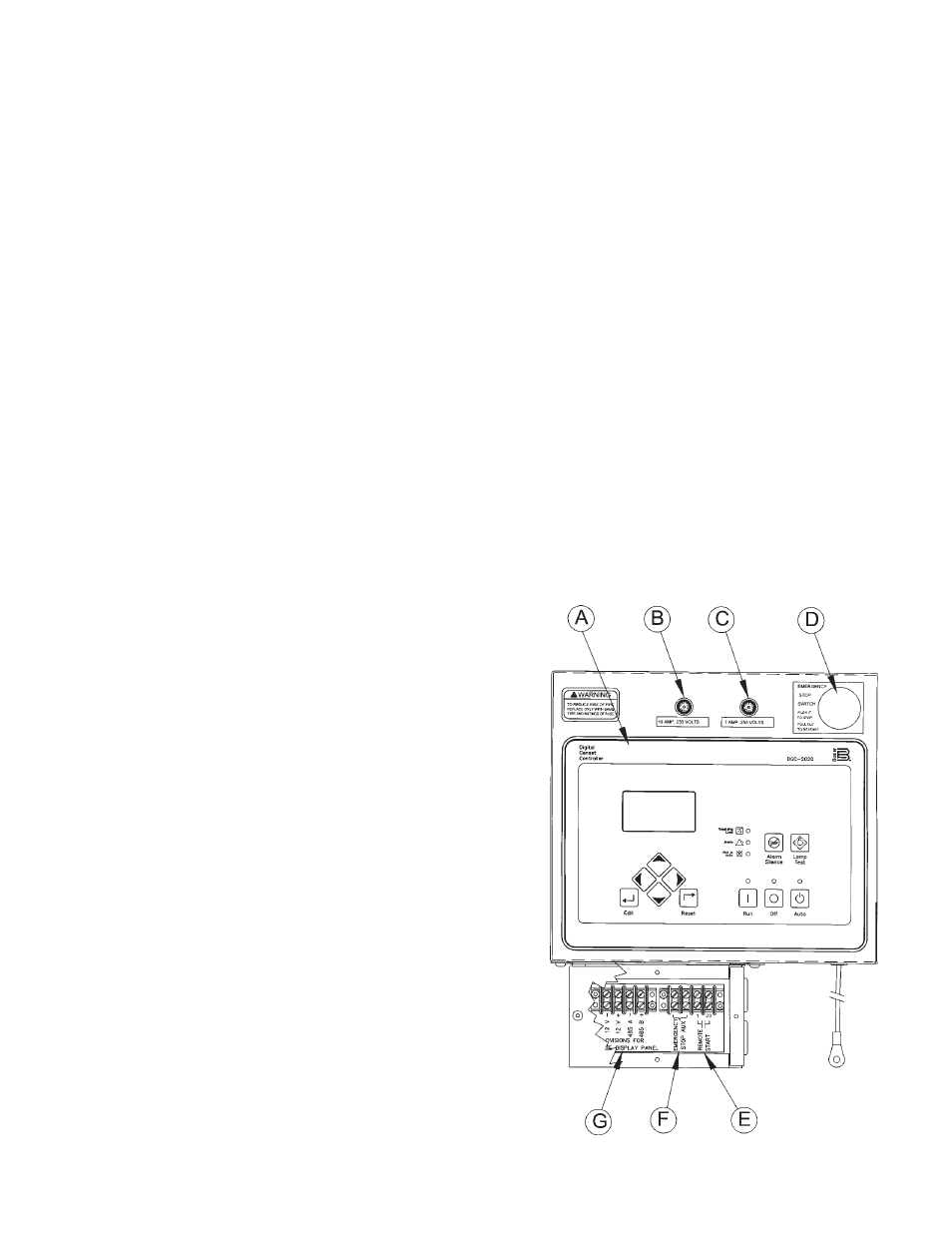

All DC connections are completed in the small box just below the
engine control cabinet. In addition there are two small fuses
mounted on the top of the engine control cabinet that protect both
the engine control and all the other DC connections. See the
display below for additional information.
