INSTALLATION INSTRUCTIONS
FOR 2-WIRE AUTO START CONTROL
The following instructions are provide to convert the PSS8B4W and the
PSS12H4W from a special 4-wire start system to a standard 2-Wire Auto
Start system.
Items required:
WINCO Conversion Kit # 16448-002 Auto Start
T25 Torx Screwdriver
7/16” End Wrench or Socket & Driver
Side Cutter
PROCEDURE
1. Move the toggle switch to the
off and stop position.

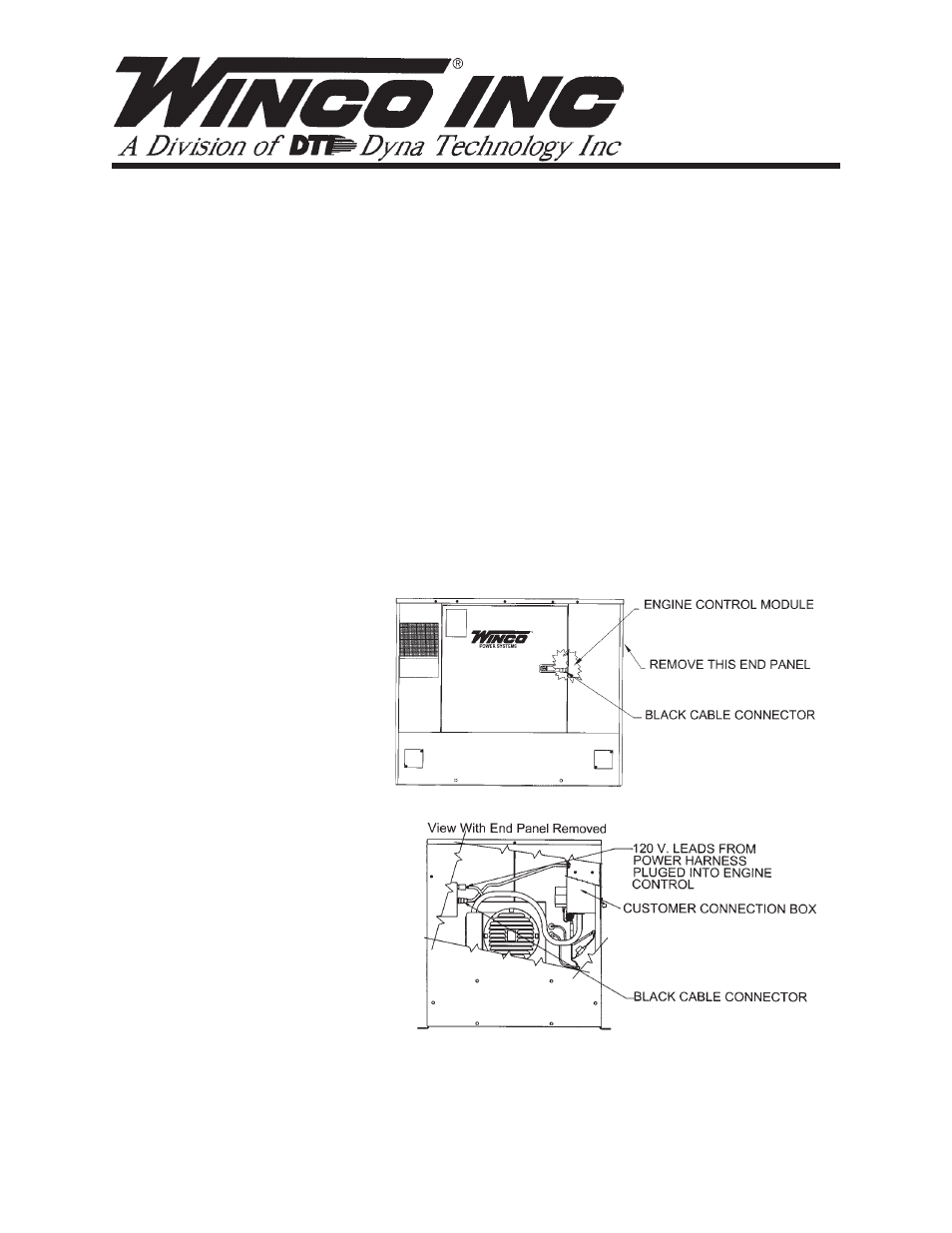

2. Remove the generator end
panel opposite the air discharge.
3. Remove the battery negative
cable if the battery is installed.
4. Remove the cover over the
customer connection box.
5. Remove both black wiring cables
plugged in the current 4-wire engine
control. These connectors have
threaded retaining collars. Turn the
collars counterclockwise to release
and pull to remove the connectors.
6. Remove the two sheet metal
screws (T-25 Screws) holding the 4-
wire engine control in place. Remove
the engine control and set aside.
7. Reuse the two sheet metal screws to install the new 2-wire engine control. Be sure the
toggle switch is in the OFF (center) position,
