GENERATOR WINDING SPECIFICATIONS

RESISTANCES:

ROTOR

7.54 Ohms

STATOR

0.248 Ohms

CAPACITOR

LEADS

0.55 Ohms

225 S. CORDOVA AVE.

LECENTER, MN 56057

507-357-6821

SERVICE DEPT.

507-357-6831

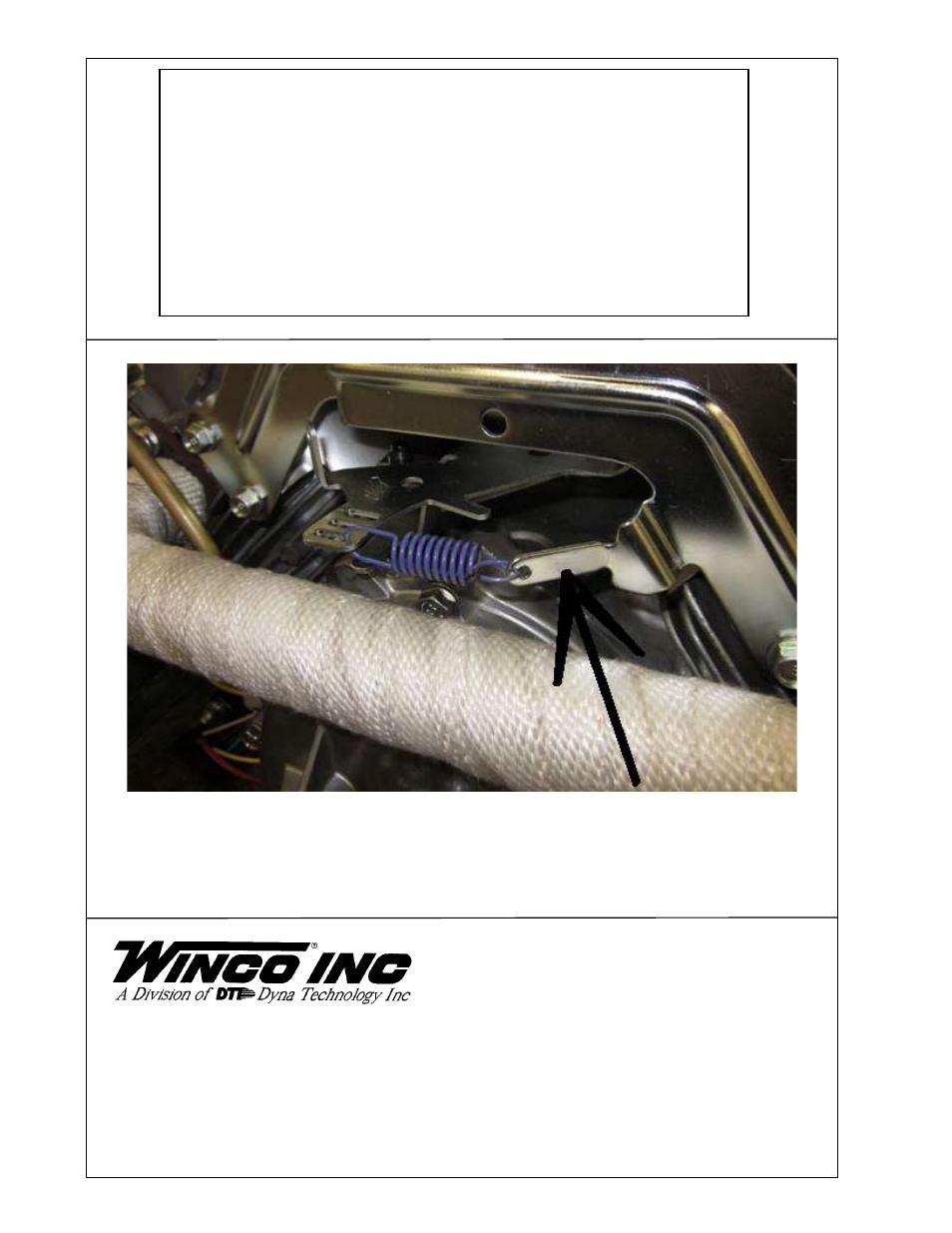

BEND THIS TAB TO CHANGE THE ENGINE SPEED (FREQUENCY).

STRETCHING SPRING INCREASES THE FREQUENCY (INCREASES ENGINE

SPEED).

RELAXING SPRING DECREASES THE FREQUENCY (DECREASES ENGINE SPEED).
