SPECIFICATIONS
MODEL HD6010DEX/P
Generator
Surge Watts 6000
Continuous Watts 5500
Volts 120/240
AMPs @ 240 Volts 22.9
Receptacles
NEMA 5-15 (120V) GFCI 2 (15A Duplex)
NEMA 15-20 (120V) GFCI 2 (20A Duplex)
NEMA 5-50 (120V) 1 (50A straight blade)
NEMA L6-30 (240V) 1 (30A twist lock)
Engine
Size 10 HP
Model L-100-AE 406c.c.
Fuel Capacity 4.5 GAL
Fuel Consumption 0.63g/hr
Starting System Key-Electric
Muffler Low Tone
Type See Engine Shroud
Above Recoil For Type
Stop System Engine Key-Switch
Complete Unit
Weight (dry) 285 LBS
Dimensions LxWxH 29x21x23.7
Owner Must Provide
Fuel #2 Diesel
Oil Type 10W-30 SF, SE, SD, SC
See engine manual for
additional information.
Oil Capacity 1.75 Quarts
Battery Size (Min - Not Incl) U1 - 235 CCA
INTENDED USES
1. These engine generator sets have been designed specifically for portable use.
Receptacles are provided in the “control box” for you to plug in your loads
(portable appliance and tool). These units are dual wound generators, with a
full load 120 Volt winding AND a full load 240 Volt winding. 120 and 240 Volt
loads do not need to be split and can be operated at the same time. See unit
capabilities for further explanation.
2. These units require large quantities of fresh air for cooling of both the engine
and the generator. Fresh air is drawn from both the engine end and the generator
end and is exhausted at the center of the unit. For safety, long life and adequate
performance, these units should never be run in small compartments without
positive fresh air flow.
RESTRICTED USES
1. DO NOT remove from the cradle assembly. Removal of the generator from
the cradle assembly may cause excessive vibration and damage to the engine
generator set.
2. DO NOT operate these portable generators in small compartment., i.e.
generator compartment of vehicles, motor homes or travel trailers. Compart-
ments will not allow enough free flow fresh air to reach the engine generator
set for cooling. Overheating will cause damage to both the engine and the
generator. Small compartments will also develop hot spots where there is very
little air flow and may cause a fire.
3. DO NOT attempt to operate this unit at 50 cycles. These units are designed
and governed to operate at 60 Cycles only.
UNIT CAPABILITIES

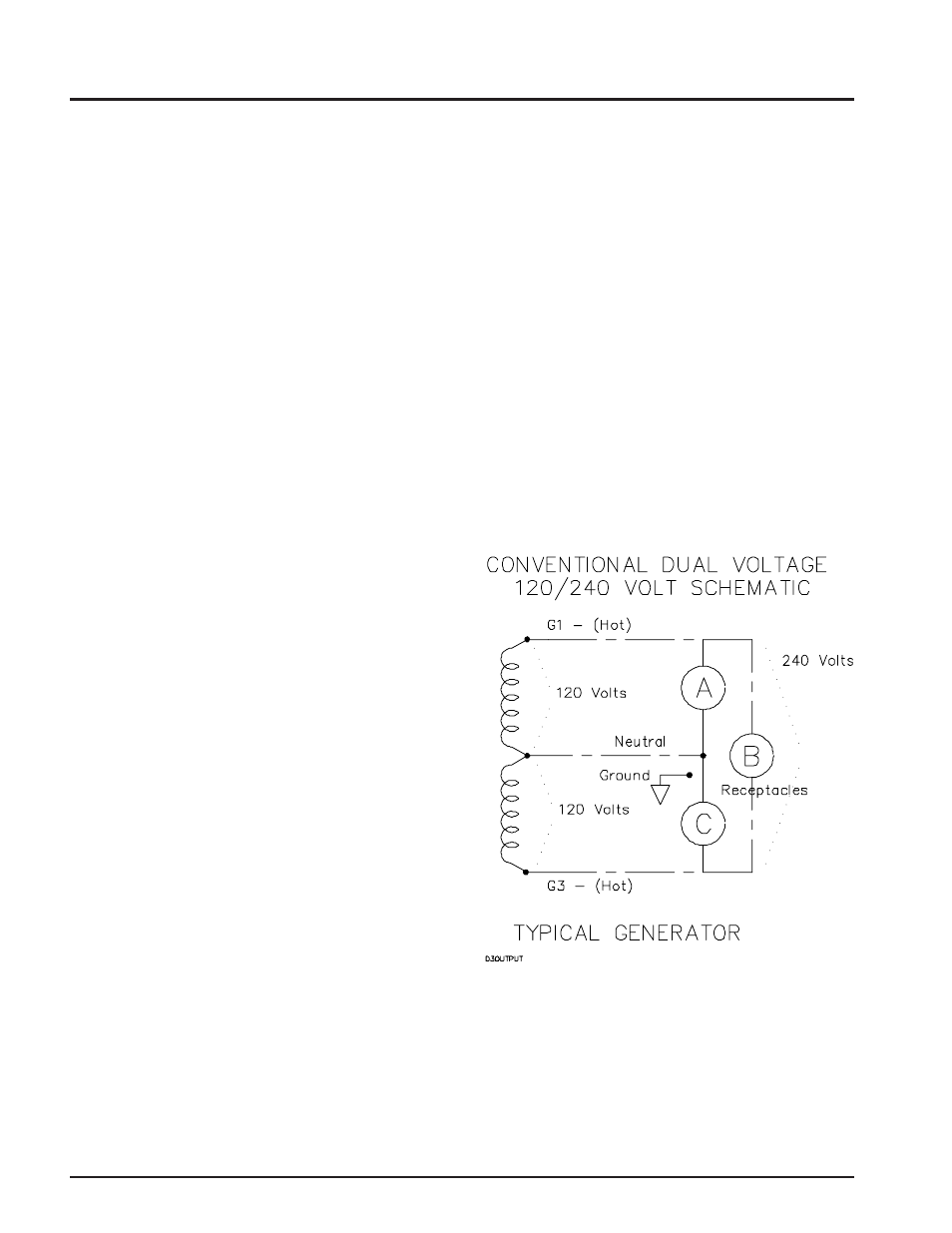

1. Generator Connections - The diagram below represents a typical ordinary 4000
watt generator. Only 2000 watts at 120 volts (16.7 Amps) can be taken from
the generator at receptacle A and up to 2000 watts at 120 volts from receptacle
C. On an ordinary generator, CAUTION MUST BE EXERCISED TO
PREVENT OVERLOADING EITHER OF THE 120 VOLT CIRCUITS (A
OR C).
The Winco Heavy Duty series generators have the EXTRA Heavy FULL
POWER winding to allow the use of all the power available from the engine
at either 120 Volts, 240 Volts or any combination of 120 or 240 Volts. You are
not restricted to splitting up your large 120 volt loads or choosing to power them
OR a 240 Volt load. There are no switches or connectors to change. Simply
plug in and use the power without being concerned about overloading the
generator.
The following currents (measured in amps) are produced at 120 & 240 volts for
typical wattage shown.
