2 3256-00 64854-005I

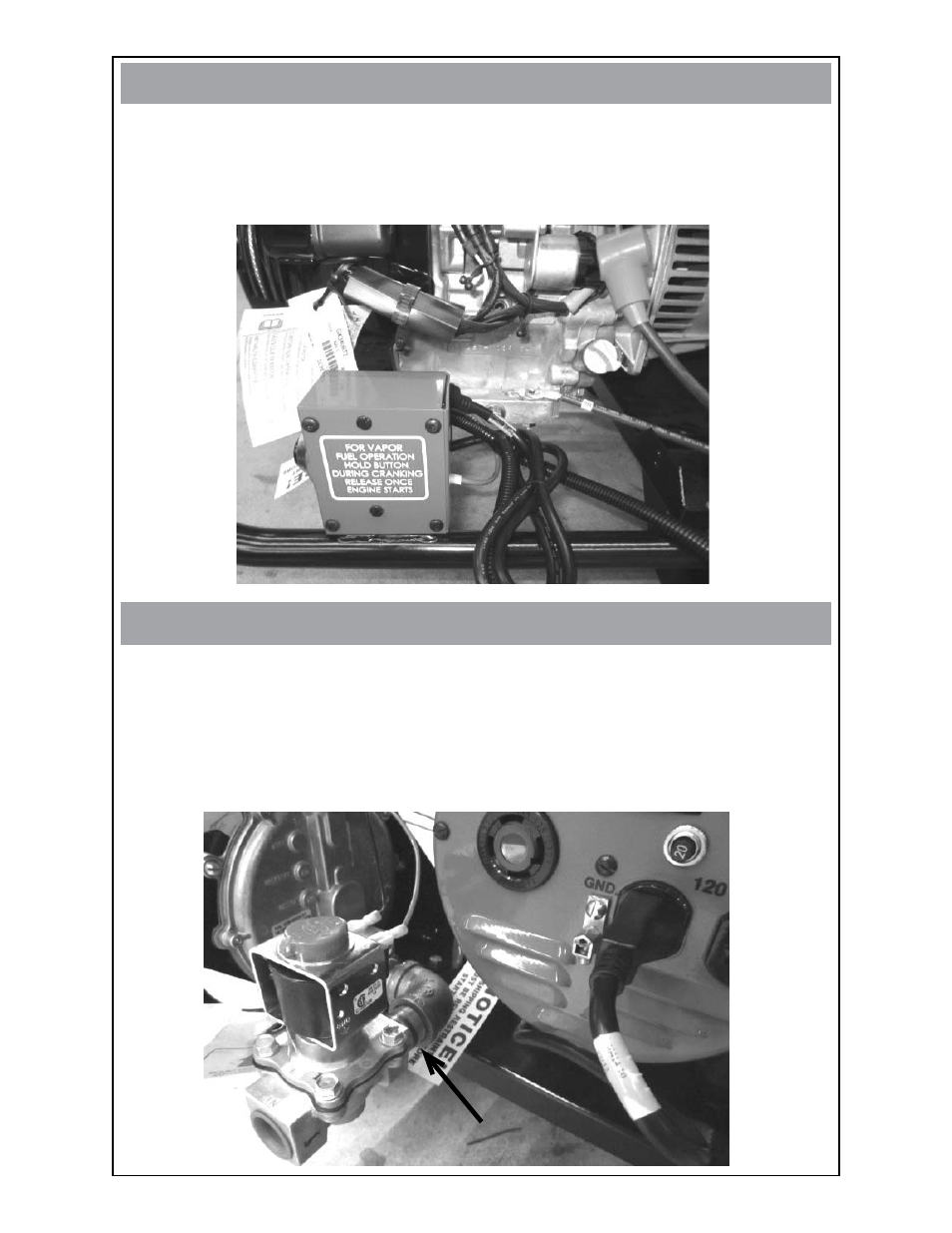

Install control box assembly (ref. 2) onto the frame of the gen-set (battery side) us-
ing 2 bolts (ref. 6) and lock washers (ref. 5).
Tighten with a /2” end wrench.
Run the cord to the rear of the generator and plug into one of the receptacles.
•
•
•
STEP 1
STEP 2 HPS6000HE/I
Thread the pipe nipple (ref. 7) onto the 90° elbow using pipe sealant.
Thread the gas solenoid valve (ref. ) onto the pipe nipple using pipe sealant.
Make sure the solenoid end marked “OUT” is toward the generator and the
solenoid end marked “IN” is toward the supply line.
Tighten with a pipe wrench.
Connect wires labeled & 2 from control box harness to the solenoid. Polarity
does not matter.
•
•
•
•
•
