24
DVBR Series Direct Vent Gas Fireplace
20000584
1 . Remove front glass. (See “Glass Remov-
al” Section, Fig. 48)
2. Remove logs from packaging.
As with all plastics — these are
not toys and should be kept
away from children and infants.
3. Place Right Rear Log onto the two pem
studs on the rear log support. Place the
Left Rear Log on the left side of the rear
log support and push the log up against
the Right Rear Log. (Fig. 50)
4. Place the Left Log on the pem studs on
the left side of the burner. Place the Right
Log on the pem studs on the right side of
the burner. (Fig. 51)
5. Place the front edge of the Left Cover
Log on the front top edge of the burner
between the last two left tines of the
grate. Allow the bottom edge of the log to
sit on the hearth. Place the Right Cover
Log between the right two tines and rest
the log up against the front face of the
burner. (Fig. 52)
6. Place the Center Log between the sec-
ond and third tines as shown. Place the
v-notch on the left side of the Center Log
against the left tine of the grate. Rest the
right side of the Center log up against the
face of the Right Log. (fig. 52)
7. Place the left Cross Log over the pin of
the Right Rear Log and the pin of the Left
Log. (Fig. 3)
8. DVBR42 only. Place the Right Cross Log
over the Right Rear Log and the Right
Log as shown. (Fig. 53) When positioned
correctly, the right rear flame will come up
through the hole in the Right Cross log.
Carefully adjust the log as needed to al-
low the flame to come through the hole.
Logs DVBR36 DVBR42
Left Log 20008817 20008508
Right Log 20008819 20008510
Right Rear Log 20008818 20008509
Left Cross Log 20008820 20008515
Log Top Right -- B29
Right Cover Log 20008822 20008515
Left Rear Log 20008513 20008816
Center Log 20008821 20008514
Left Front Log 20008823 20008823
Left Cover Log 20008512 20008512
Log Chart
Installation of Logs
�����
���������
����
Right Rear Log
Left Rear
Log
LG340

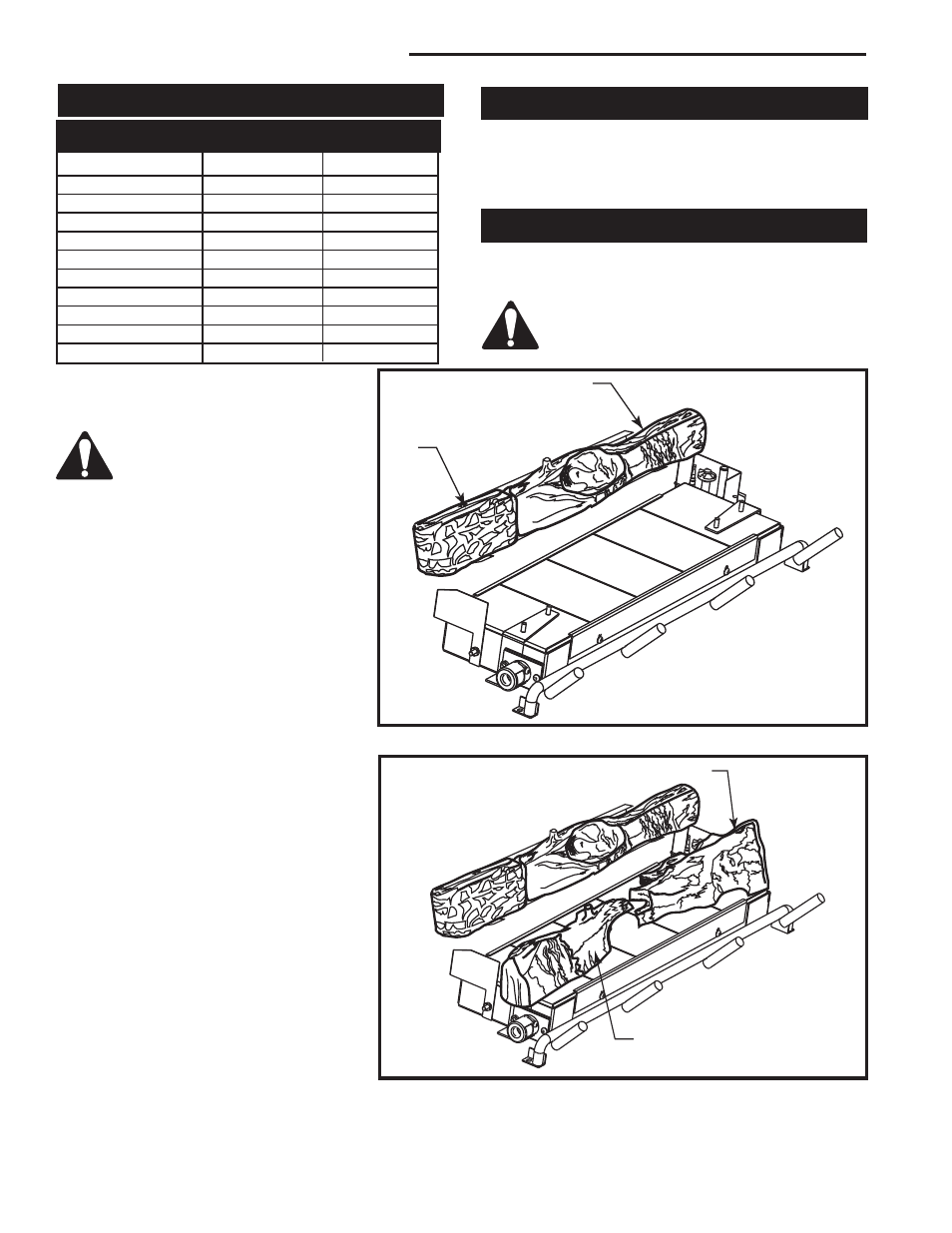

Fig. 50 Place Right and Left Rear Logs on rear log support.
�����
���������
����
Right Log
Left Log
LG390
Fig. 51 Place Left and Right Logs on pem studs on burner.
Lava Rock
The lava rock provided with this fireplace must be placed
on the firebox base around the burner assembly.
Under no circumstances should this lava
rock be placed on any part of the burner
assembly.
Ember Material Placement
Separate the ember material into small pieces, roughly
1/2” in diameter and place onto the burner in front of
the front logs. Do NOT pack down, leave in fluffy, loose
condition for most realistic ember effect.
