Once again, experiment with various settings until you find the combination
perfect for you. The availability of this fine tuning is what separates a cheap basic
audio system from a Cadence Cinema Series Home Theater System.
AUTO TURN ON CIRCUIT:
The sub woofer features an Auto Turn On circuit. You never have to manually
reach behind the sub woofer to turn it on or off. The sub woofer automatically
turns on and off when it senses musical input. The system will shut down after 5
minutes of no musical input. The On/Off switch will remain lit even when the
system is off, but the AMP ON LED will light only when a musical signal is or was
present in the past 5 minutes.
FUSE AND POWER CABLE:
Please be sure that the power cable is plugged in tightly in to the sub woofer.
Should the sub woofer stop working, the first step in trouble shooting is to check
the fuse. To do this you must first disconnect the power cable from the sub woofer.
The fuse holder should now be visible. Carefully remove the fuse, if it is blown it
should be replaced with the same value 3 amp fuse. The fuse is there to protect
the system for voltage spikes.
SIGNAL INPUT:
The sub woofer accepts input via low level RCA cables or high level speaker
connections. If your receiver has a sub woofer RCA pre-amp output channel(s)
then this is the preferred method to input the signal to the sub woofer.
If your receiver does not have RCA pre amp out put channels, you can simply
connect your receivers speaker wires to the High Level input and then use the
High Level output to power your system speakers.
( ) ( ) dB dB ( ) ( ) Hz Hz
MAX MAX MIN MIN 120 120
115 115
110 110
50 50
70 70
40 40
R R
L L
ON ON
AMP AMP
INPUT INPUT
LEFT LEFT RIGHT RIGHT
CONTROL CONTROL EQ EQ FREQ FREQ
HIGH LEVEL INPUT HIGH LEVEL INPUT
LOW LEVEL LOW LEVEL
PHASE PHASE
00 180 180
VOLUME VOLUME BASS BASS CROSSOVER CROSSOVER
ACTIVE SUBWOOFER XLNS-12 ACTIVE SUBWOOFER XLNS-12
+ 12 + 12 12 12 HIGH LEVEL OUTPUT HIGH LEVEL OUTPUT
NOT SUITABLE FOR IN WALL MOUNTING NOT SUITABLE FOR IN WALL MOUNTING
DO NOT EXPOSE THE APPLIANCE TO RAIN OR MOISTURE DO NOT EXPOSE THE APPLIANCE TO RAIN OR MOISTURE
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, WARNING: WARNING:
OFF OFF
ON ON
POWER POWER
120V 60Hz 300W 120V 60Hz 300W
CAUTION CAUTION
RISK OF ELECTRIC SHOCK RISK OF ELECTRIC SHOCK
DO NOT OPEN DO NOT OPEN
WARNING:SHOCK HAZARD-DO NOT OPEN WARNING:SHOCK HAZARD-DO NOT OPEN
AVIS:RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR AVIS:RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR
CAUTION CAUTION
DO NOT OPEN DO NOT OPEN
WARNING:SHOCK HAZARD-DO NOT OPEN WARNING:SHOCK HAZARD-DO NOT OPEN
R R L L
AMP ON AMP ON
LE
F T
LE
F T
LE
F T
LE
F T
R
IG
H T
R
IG
H T
R
IG
H T
R
IG
H T
H
IG
H L
E V E
L
IN
P U
T
H
IG
H L
E V E
L
IN
P U
T
LOW LEVEL INPUT LOW LEVEL INPUT
OFF OFF
ON ON
POWER POWER
120V 60Hz 300W 120V 60Hz 300W
H
IG
H
L
E V
E L
O
U
T P U
T
H
IG
H
L
E V
E L
O
U
T P U
T
TO REDUCE THE RISK OF FIRE TO REDUCE THE RISK OF FIRE WARNING: WARNING:
OR ELECTRIC SHOCK, DO NOT EXPOSE OR ELECTRIC SHOCK, DO NOT EXPOSE
THE APPLIANCE TO RAIN OR MOISTURE THE APPLIANCE TO RAIN OR MOISTURE ( ) ( ) Hz Hz
( ) dB
( ) ( ) Hz Hz
( ) ( ) dB
MAX MAX MIN MIN
120 120
110 110
90 90
70 70
40 40
FREQ FREQ
PHASE PHASE
00 180 180
VOL VOL
BASS BASS
+ 12 + 12 12 12
90 90
ACTIVE SUBWOOFER XSUB-12 ACTIVE SUBWOOFER XSUB-12
RISK OF ELECTRIC SHOCK, DO NOT OPEN RISK OF ELECTRIC SHOCK, DO NOT OPEN
NOT SUITABLE FOR IN WALL MOUNTING NOT SUITABLE FOR IN WALL MOUNTING

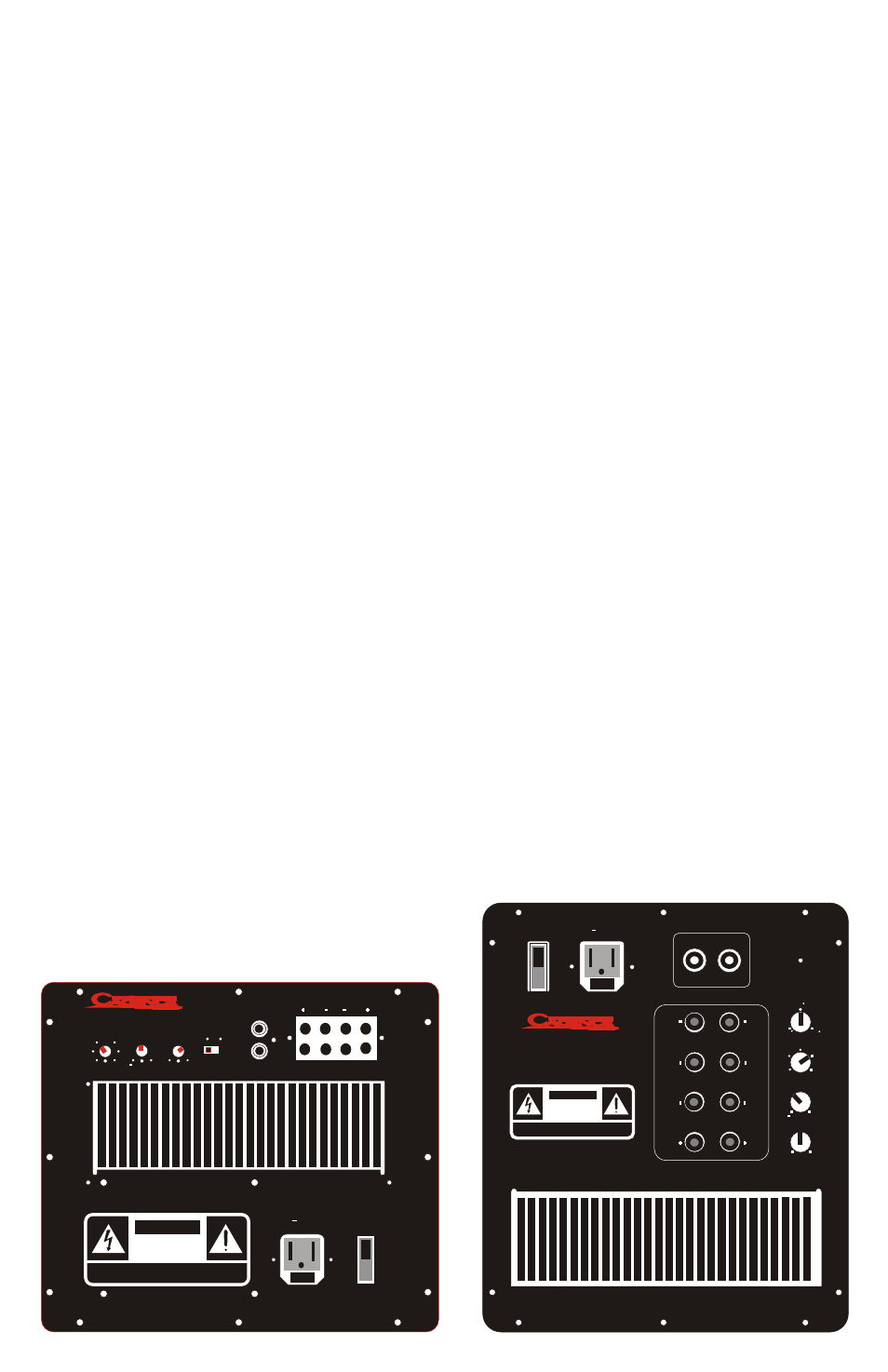

XLNS-12
REAR PANEL
XSUB-12
REAR PANEL
