Traxxas 2970 EZ-Peak Plus 4-amp - Manual

Thank you for purchasing the Traxxas EZ-Peak Plus charger. This charger features exclusive
Traxxas innovations that make charging batteries easier and safer than ever. If you have any
questions or concerns about your charger, please contact our customer support team for
fast, friendly answers and solutions. Contact information is at the bottom of this page.
WARNING! For best charging results and your safety, it is essential that you read and
understand these instructions before using the charger. Charging and discharging batteries
has the potential for serious injury and damage to property. Use care when charging and
follow all instructions and cautions.
NiMH/LiPO FAST CHARGER INSTRUCTIONS
HKC14012-R01 140926
TRAXXAS.com
Traxxas, 6200 Traxxas Way, McKinney, TX 75070, Phone: 1-888-TRAXXAS (Toll-free, US only) or 972-549-3000, Fax: 972-549-3011, e-mail: [email protected]

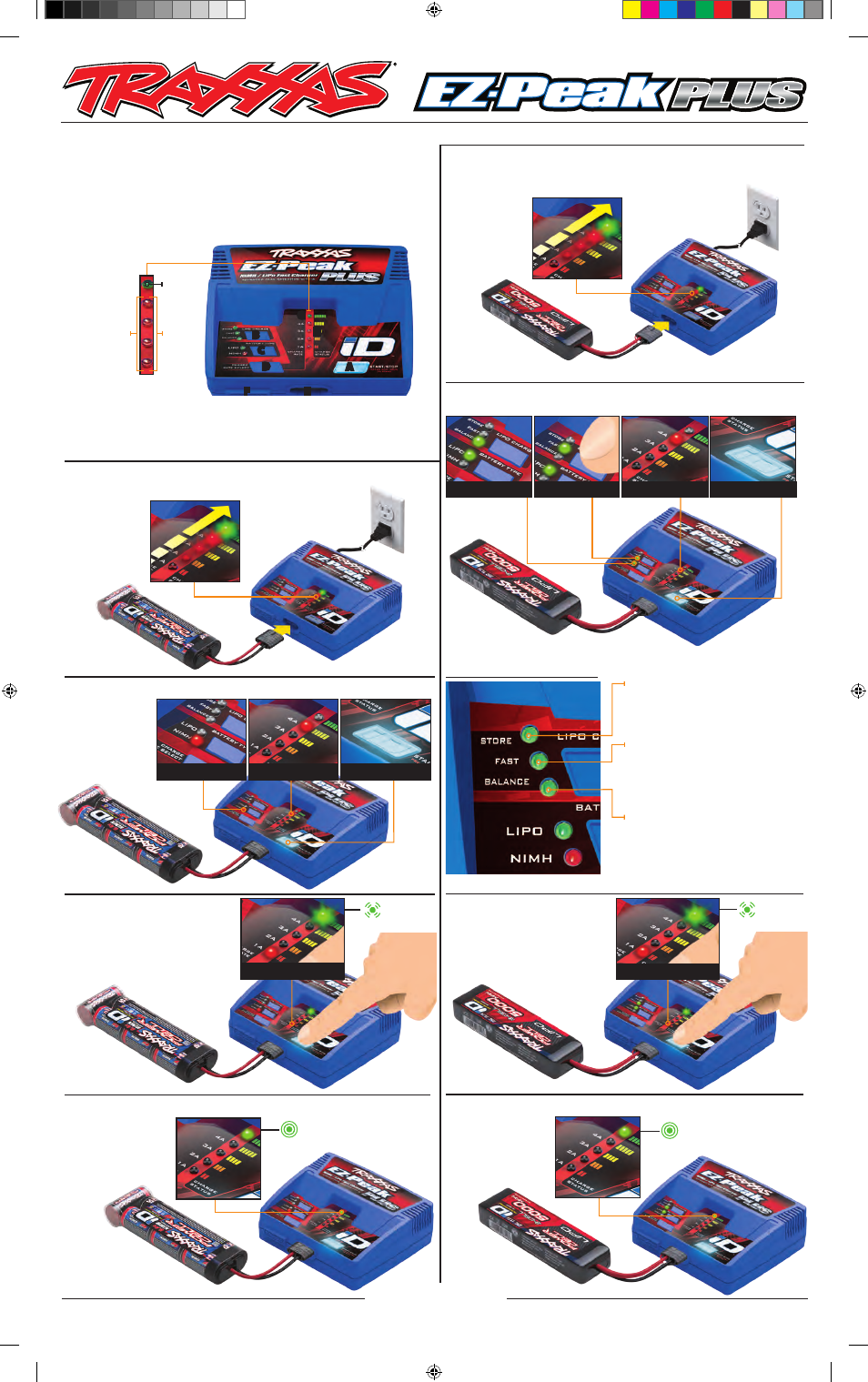

1. Power up the charger and connect the battery
2. Verify charge settings
3. Charging
Charging Traxxas iD LiPo Batteries
Charging Traxxas iD NiMH Batteries
Covers Part #2970
A. Battery iD Start/Stop
B. LiPo Charge Mode Select
C. Battery Type Select
D. Charge Rate Select
A
B
C
D
E F
G
H
Press and hold Start
button 2 seconds to start.
Press once to stop.
Battery type
selected must
match the battery
type shown on
the battery.
Battery type selected must match the battery type shown on the battery.
Charge
Status
Charge
Progress
Charge Rate
(Amps)
E. Charger Output Port (Traxxas High-Current Connector)
F. 2S/3S Lipo Balance Ports (pull to remove cover)
G. Charge Status LED
H. Charge Progress/Charge Rate LEDs
LiPo Charging Modes
Storage charge
Makes it easy to charge or discharge the
battery to the proper storage voltage. Use this
mode whenever the battery will be stored
unused for more than 7 days.
Fast charge
Fast charges your battery without balancing
your cells. Stops charging when the first cell
reaches peak voltage. Depending on the
battery, this may reduce the charge time by a
few minutes.
Balance charge
Always balance charge your LiPo batteries
for maximum capacity, voltage, and battery
life. This is the default setting for Traxxas iD
batteries. The EZ-Peak Plus performs a balance
charge quickly and efficiently.
4. Charge cycle complete
3. Charging
Press and hold Start
button 2 seconds to start.
Press once to stop.
4. Charge cycle complete
Charging
(flashing)
1. Power up the charger and connect the battery
2. Verify charge settings
Battery Type Charge Rate Start
Charge Rate Start Battery Type Charge Mode
Charging
(flashing)
Charge Cycle Progress Charge Cycle Progress
Cycle Complete
(solid) Cycle Complete
(solid)
The EZ Peak Plus will
trickle charge your
NiMH battery at up to
200mA for 12 hours
after the charge cycle
is complete.
HKC14012-R01_2970-TraxxasID-4amp AC fast charger-INST - EN.indd 1 9/26/14 2:04 PM
