4

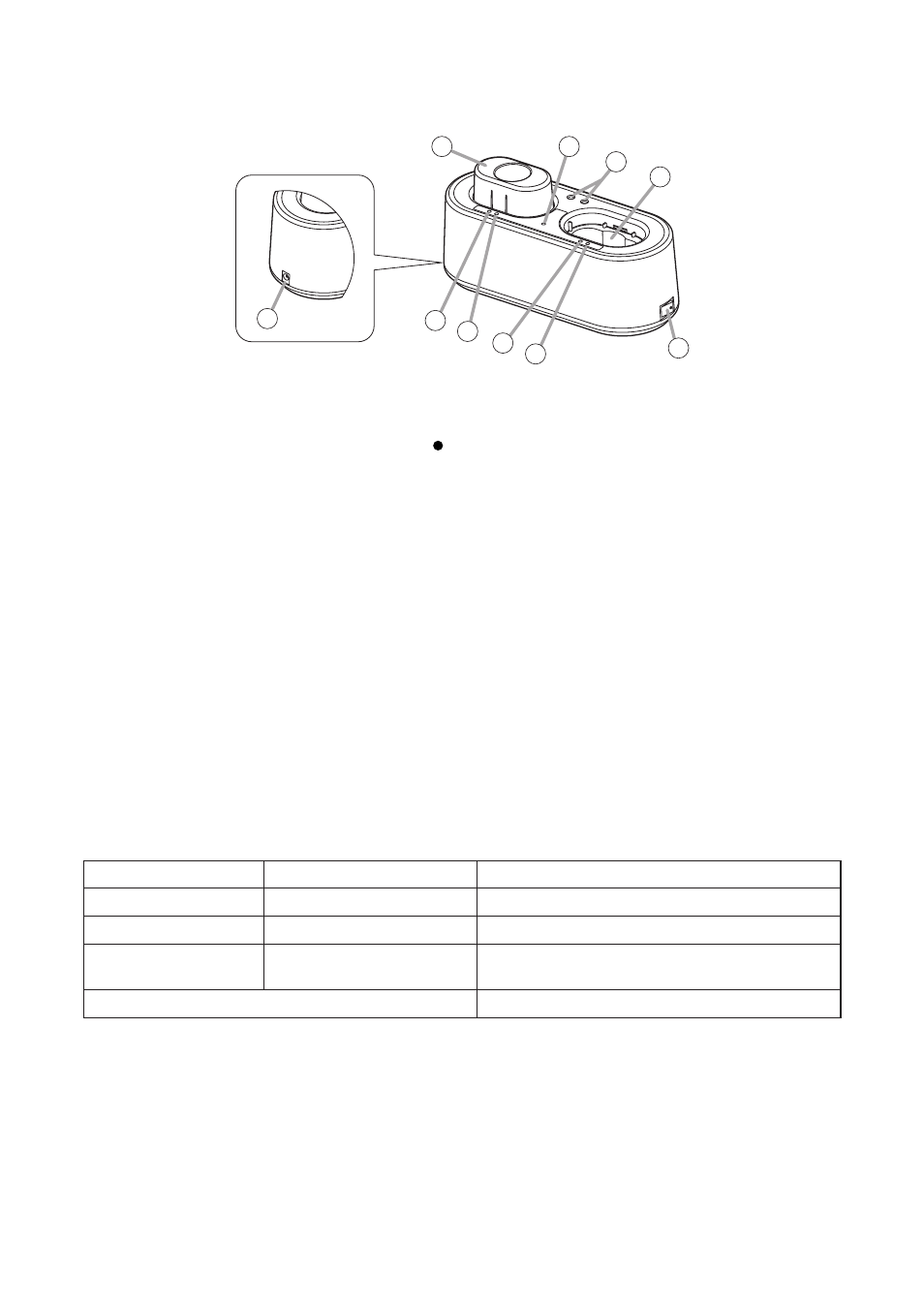

4. NOMENCLATURE AND FUNCTIONS
1. Power switch
To turn on the power, set this switch to the [ ]
position. To turn off the power, shift this switch
back.
2. Mounting Adapter
(factory-attached to the charger)
Used when charging the IR-200M handheld
infrared wireless microphone.
Remove this adapter when charging the IR-300M
hands-free infrared wireless microphone. (Refer to
p. 5 "Charging.")
3. Power indicator
Lights when the power is switched on.
4. Screwdriver inlet
Insert the setting screwdriver supplied with the
infrared wireless microphone into this inlet when
storing it.
5. Infrared wireless microphone receptacle
• Use the mounting adapter when charging the
IR-200M microphone.
• When charging the IR-300M microphone,
remove the mounting adapter and insert the
microphone directly into the receptacle.
6. Full-charge indicator
Lights green once the battery is fully charged.
7. Charging indicator
Lights red continuously while charging is in
progress.
8. Power input terminal
Connect the supplied AC adapter to this terminal.
1
2 3
4
5
8
7
7
6
6
Charging indicator (red)
Lit
Unlit
Flashing
Unlit
Lit
Unlit
Both indicators light alternately.
Charging in progress
Charging completed
Outside the operating temperature range
(refer to p. 7 "Troubleshooting.")
Charging failure (refer to p. 7 "Troubleshooting.")
Full-charge indicator (green) Status
[Indicator status table]
