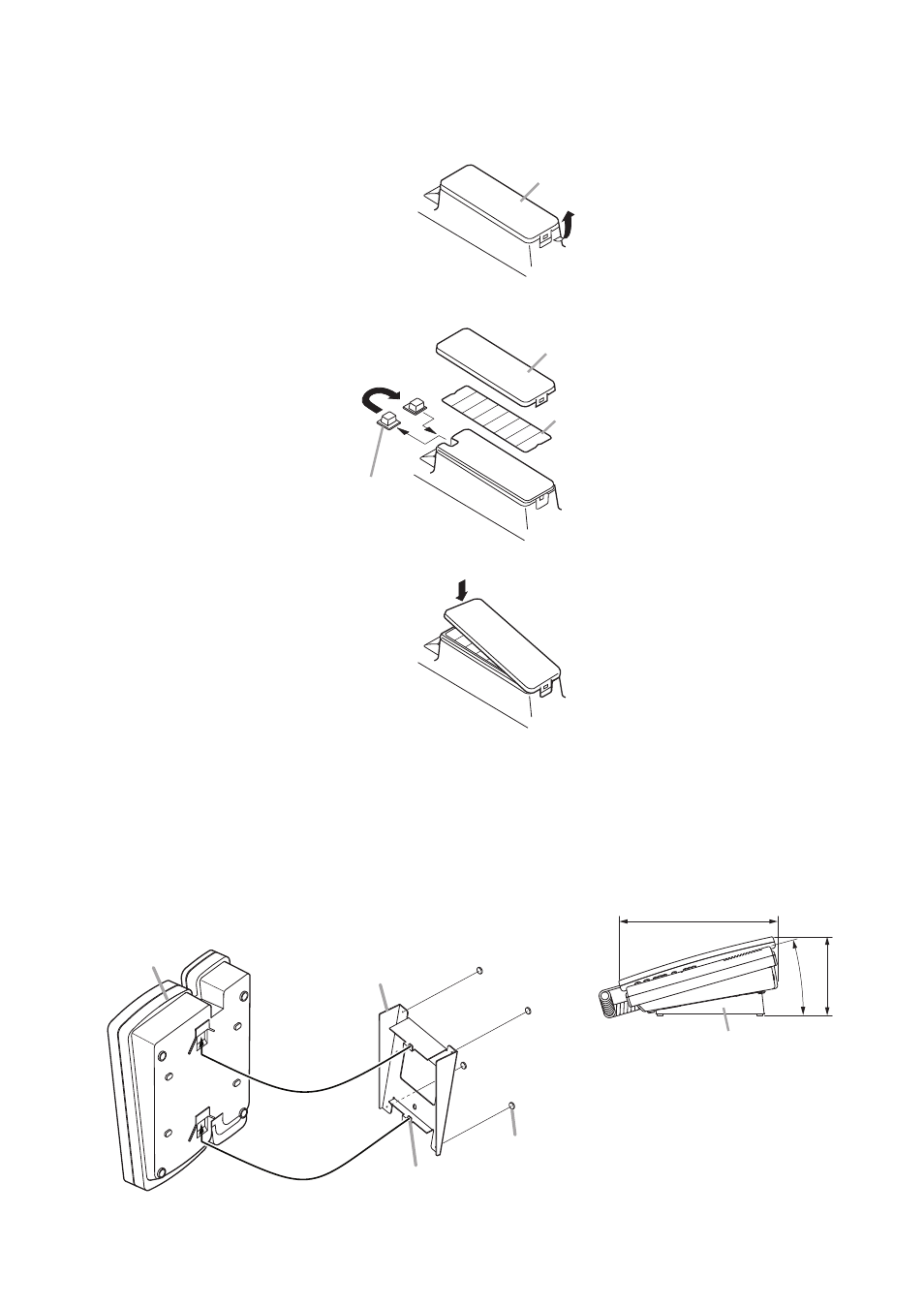

3. WALL MOUNTING
When mounting the N-8410MS on a wall, the orientation of the handset hook needs to be changed.
Step 1. Raise the number directory cover forward tab.
Number directory cover
S tep 2. Remove both the number directory cover and the directory.
Remove the handset hook and reverse its orientation, then replace.
Step 3. After replacing the directory on the station, hook the directory cover's forward tab and push on the
upper part of the directory cover.
Number directory cover
Number directory
Handset hook
Reverse the orientation
4. DESk-TOP INSTALLATION
In desktop installation, the front operation panel can be inclined 16˚ from the desk surface for easier operation
by attaching the YC-280 to N-8410MS bottom surface.
4.1. Mounting Example 4.2. Installation Completion Drawing
Hang the YC-280's hook on the N-8410MS's wall
bracket mounting slot to install.
Push up the YC-280 in the direction indicated by the
arrows.
Unit: mm
205.2
YC-280
16
°
101.8
YC-280 Wall
mounting bracket
N-8410MS
Hook
Rubber foot
(supplied with the YC-280)
