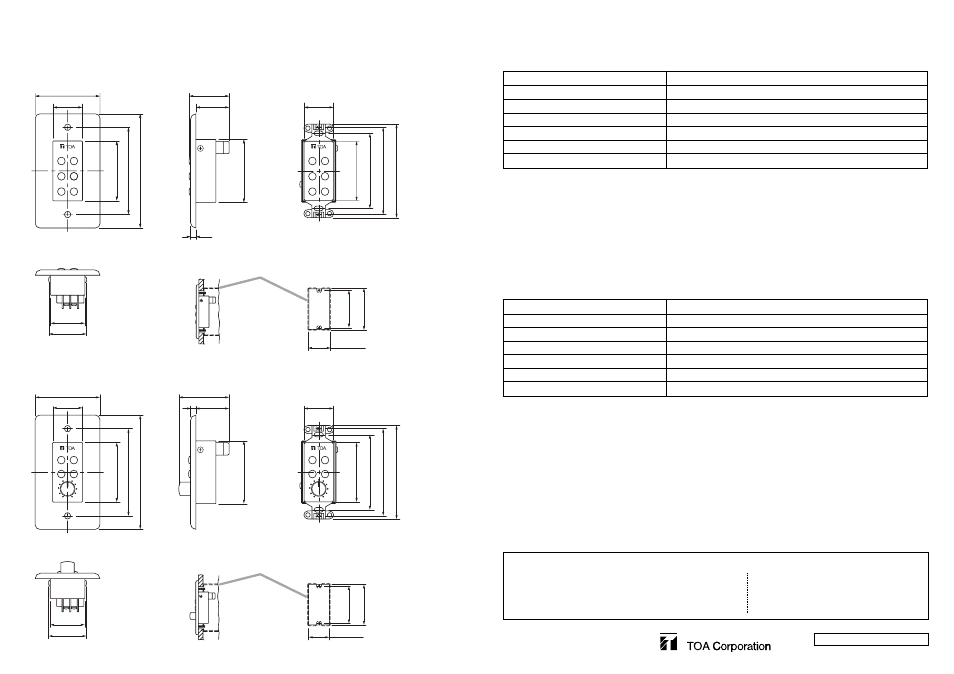

5. SPECIFICATIONS 4. DIMENSIONAL DIAGRAMS
5.1. ZM-9001
5.2. ZM-9002
Single conductor shielded cable
50 Ω or less (per line)
M3 screw terminal, distance between barriers: 7.62 mm
–10 to +40°C
Surface-treated steel plate, white, paint
72 (w) x 127 (h) x 45 (d) mm
170 g Applicable Cable
Line Resistance
Terminal
Operating Temperature
Finish
Dimensions
Weight
Note: The design and specifications are subject to change without notice for improvement.
• Accessories
Machine screw (for box mounting)
No.6-32UNC x 30 .................................................................................. 2
M4 x 30 .................................................................................................. 2
Machine screw (for panel mounting) No.6-32UNC x 6 ............................... 2
Single conductor shielded cable
50 Ω or less (per line)
M3 screw terminal, distance between barriers: 7.62 mm
–10 to +40°C
Surface-treated steel plate, white, paint
72 (w) x 127 (h) x 56 (d) mm
170 g Applicable Cable
Line Resistance
Terminal
Operating Temperature
Finish
Dimensions
Weight
Note: The design and specifications are subject to change without notice for improvement.
• Accessories
Machine screw (for box mounting)
No.6-32UNC x 30 .................................................................................. 2
M4 x 30 .................................................................................................. 2
Machine screw (for panel mounting) No.6-32UNC x 6 ............................... 2
[Front] [Front View without panel] [Side]
[Figure when mounted] [Dimensions of mounting opening] [Bottom]
1-gang electrical box (American type, not supplied)
1-gang electrical box (American type, not supplied)
[Figure when mounted] [Dimensions of mounting opening] [Bottom]
[Front] [Front View without panel] [Side]
Unit: mm
Unit: mm
72
33
45
37
66.4 97 70 66 83.5 97 104 127
6
32.6
38
42
83.5
90 – 98
46 – 50
46 – 50
83.5
90 – 98
38
42
66 83.5 97 104
32.6
70
56
6 37
72
33
66.4 97 127
4.2. ZM-9002
4.1. ZM-9001
133-05-401-5D
