Toa BS-1030W - Manual (Page 4)

2-way bass-reflex system
30 W
8 Ω
High impedance (100 V line):
330 Ω (30 W), 500 Ω (20 W), 670 Ω
(15 W), 1 kΩ (10 W), and 2 kΩ (5 W)
High impedance (70 V line):
170 Ω (30 W), 250 Ω (20 W), 330 Ω
(15 W), 500 Ω (10 W), and 1 kΩ (5 W)
Note: Impedance is changeable by
means of the rotary switch.
90 dB (1 W, 1 m)
80 – 20,000 Hz
Low frequencies:
12 cm dynamic speaker
High frequencies:
2.5 cm dome tweeter
–10°C to +50°C
IP-X4 (when the angle is specified in
vertical or horizontal installation)
196 (w) x 290 (h) x 150 (d) mm
Refer to the table below.
2.5 kg (speaker only)

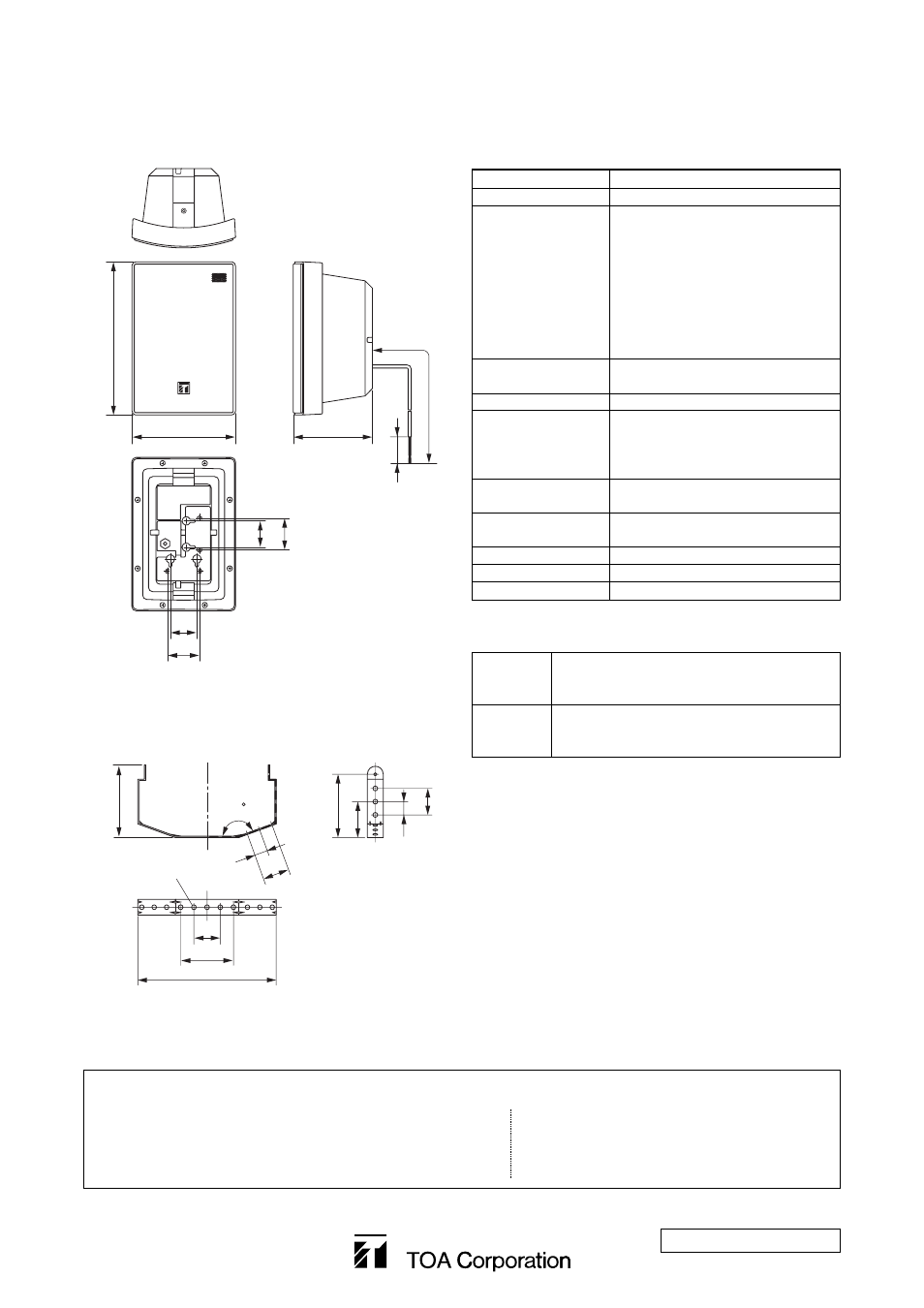

6. DIMENSIONAL DIAGRAM
• Speaker
• Bracket (standard accessory)
7. SPECIFICATIONS
• Specifications common to both the BS-1030B
and BS-1030W
290
50 60
50
60
196 150
600
100
Unit: mm
50
50
25
141
100
262
160
50
25
68
123
17- ø9
Note: The design and specifications are subject to change without
notice for improvement.
• Accessories
Bracket .................................................. 1
M5x10 machine screw ........................... 2
M5 plain washer .................................... 2
Enclosure Type
Rated Input
Rated Impedance
Sound Pressure
Level
Frequency Response
Internal Speakers
Operating
Temperature Range
Splash-Proof Capability
Dimensions
Finish
Weight
Case: ABS resin, black, paint
Grille: Pre-coated steel plate, black, paint
Bracket: Pre-coated steel plate, black, paint
Case:
ABS resin, white, paint
Grille: Pre-coated steel plate, white, paint
Bracket: Pre-coated steel plate, white, paint
BS-1030B
BS-1030W
