Finish Bracket A and B:
Surface-treated steel plate, black, paint
Stay and bracket stopper:
Surface-treated steel plate,
electrogalvanizing
Weight 510 g
Printed in Taiwan
1 3 3 - 0 5 - 3 6 4 - 3 0

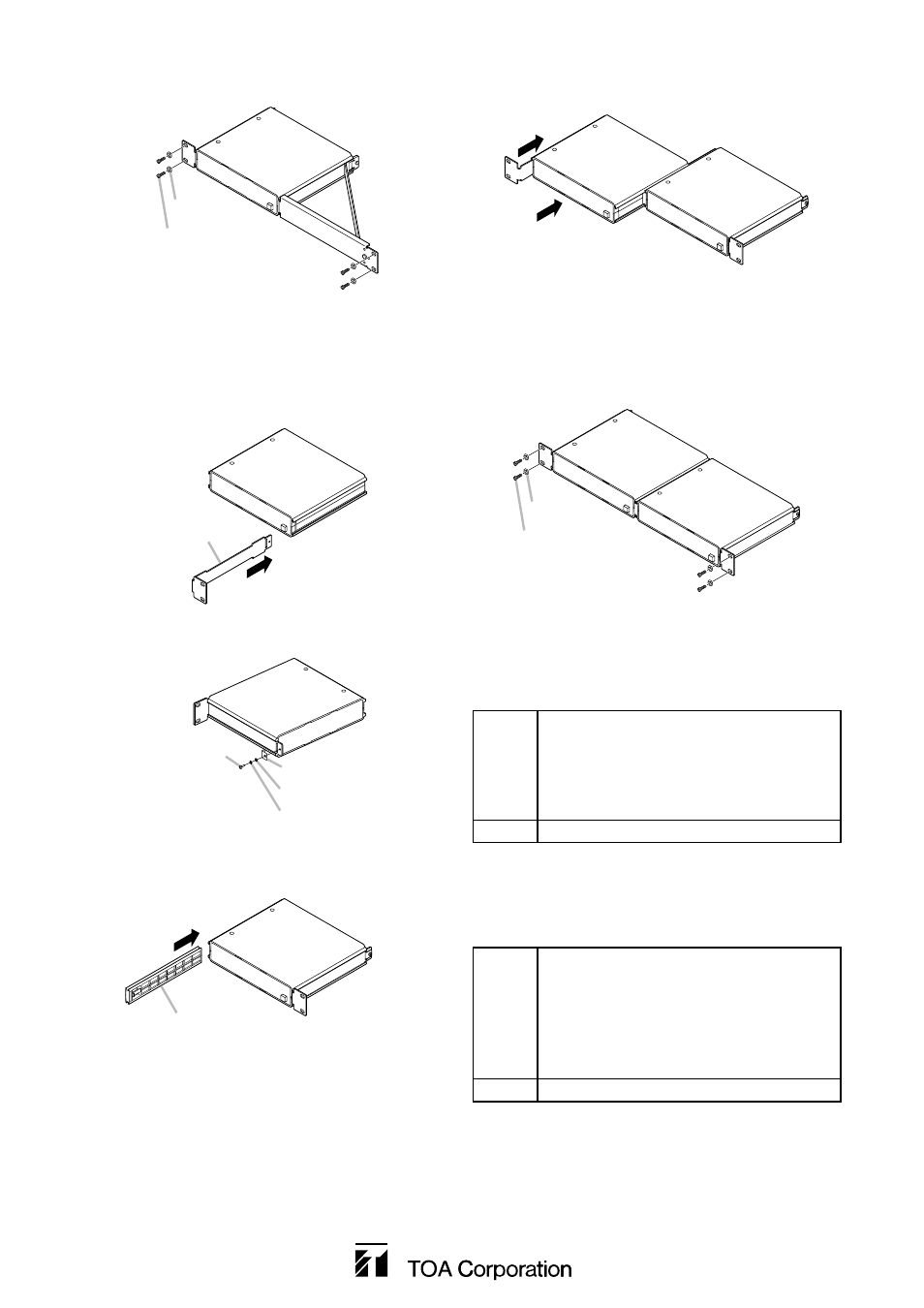

Step 5. Install the unit assembly in an equipment
rack.
Fiber washer
(for M5)
Rack mounting screw
5 x 12
3. MB-WT4 INSTALLATION
Step 1. Slide the Bracket into the first unit's guide rail
until it stops.
Bracket
Step 2. Secure the Bracket Stopper to the Bracket.
Bracket Stopper
Flat washer (for M3)
Spring washer (for M3)
Machine screw
M3 x 6
Step 3. Slide the Connector into the unit's guide rail
on the other side until it stops.
Connector
Step 4. Repeat Steps 1 and 2 to mount the Bracket
and the Bracket Stopper to the second unit.
First unit
Second unit
4
5
Fiber washer
(for M5)
Rack mounting screw
5 x 12
Step 5. Engage the second unit's guide rail to the
first unit's Connector mounted in Step 3.
Slide the second unit until it stops.
Step 6. Install the unit assembly in an equipment
rack.
4. SPECIFICATIONS
[MB-WT3]
Note: The design and specifications are subject to
change without notice for improvement.
[MB-WT4]
Note: The design and specifications are subject to
change without notice for improvement.
Finish Bracket:
Surface-treated steel plate, black, paint
Bracket stopper:
Surface-treated steel plate,
electrogalvanizing
Connector: POM resin, black
Weight 240 g
