TechniSat TechniStar K2 ISIO - Manual (Page 2)

2

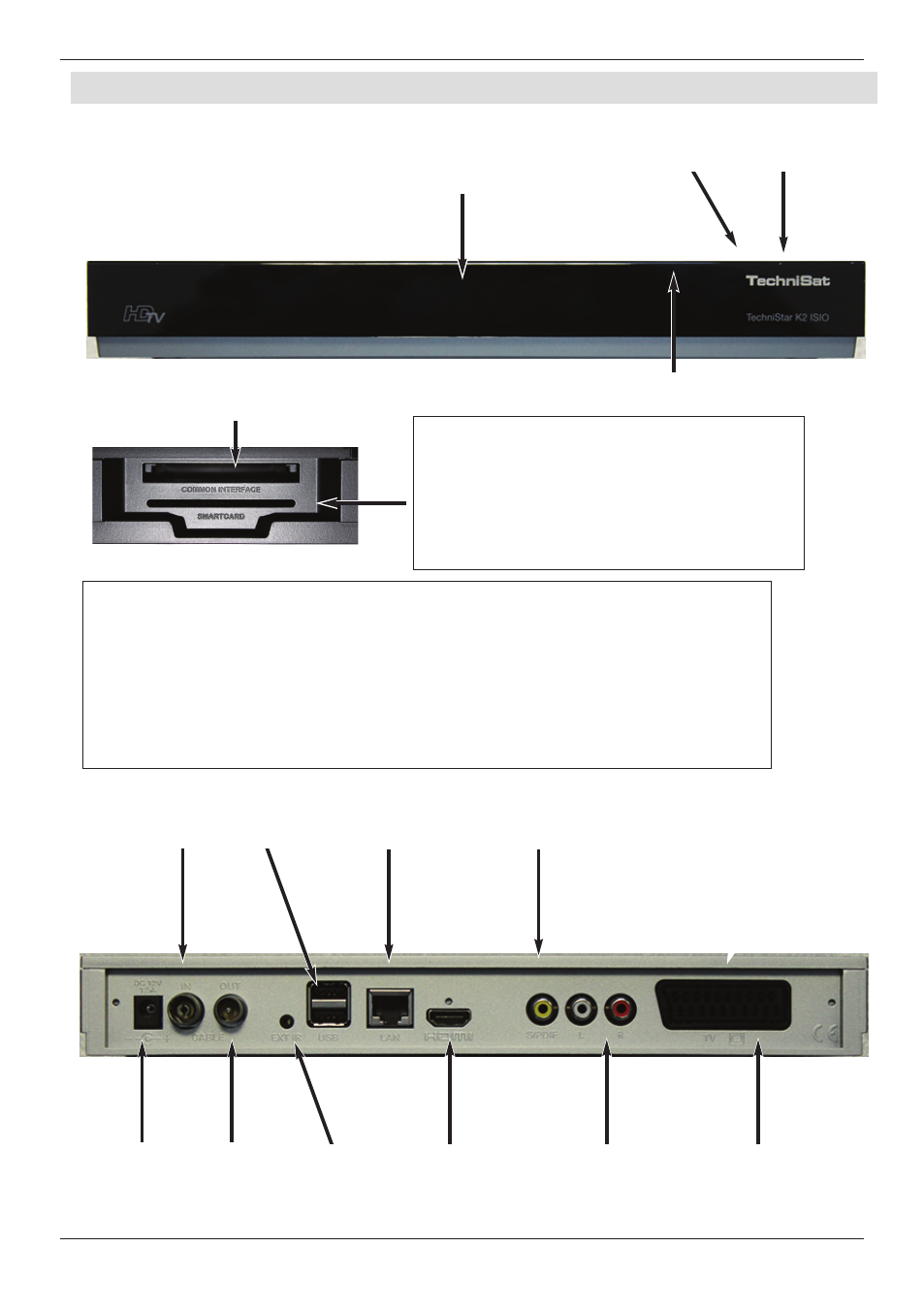

1 illustration
cable-
out
DC-in
digital audio
out
analogue audio
out
SCART-socket
TV
analogue audio
out
Ethernet-
interface
cable-in
HDMI-
out
IR-
connection
USB-
interfaces
ON/Standby
arrow button up/down
TV/Radio LED-display
CI-slot
card reader:
> Insert the CONAX-Smartcard
(golden Chip face down and alingned
in insertion direction) till the as far as
it willl go.
Inserting the CI / CI+ -module:
> Please refer to the manual of the manufacturer of the CI / CI+ -module
and the card.
> Insert the appropriate smartcard in the corresponding
CI-module.
> Insert the CI-module into the CI-slot carefully.
