Sutherland DUO User Manual
Page 6
OWNER’S MANUAL INFO
Initial Set Up

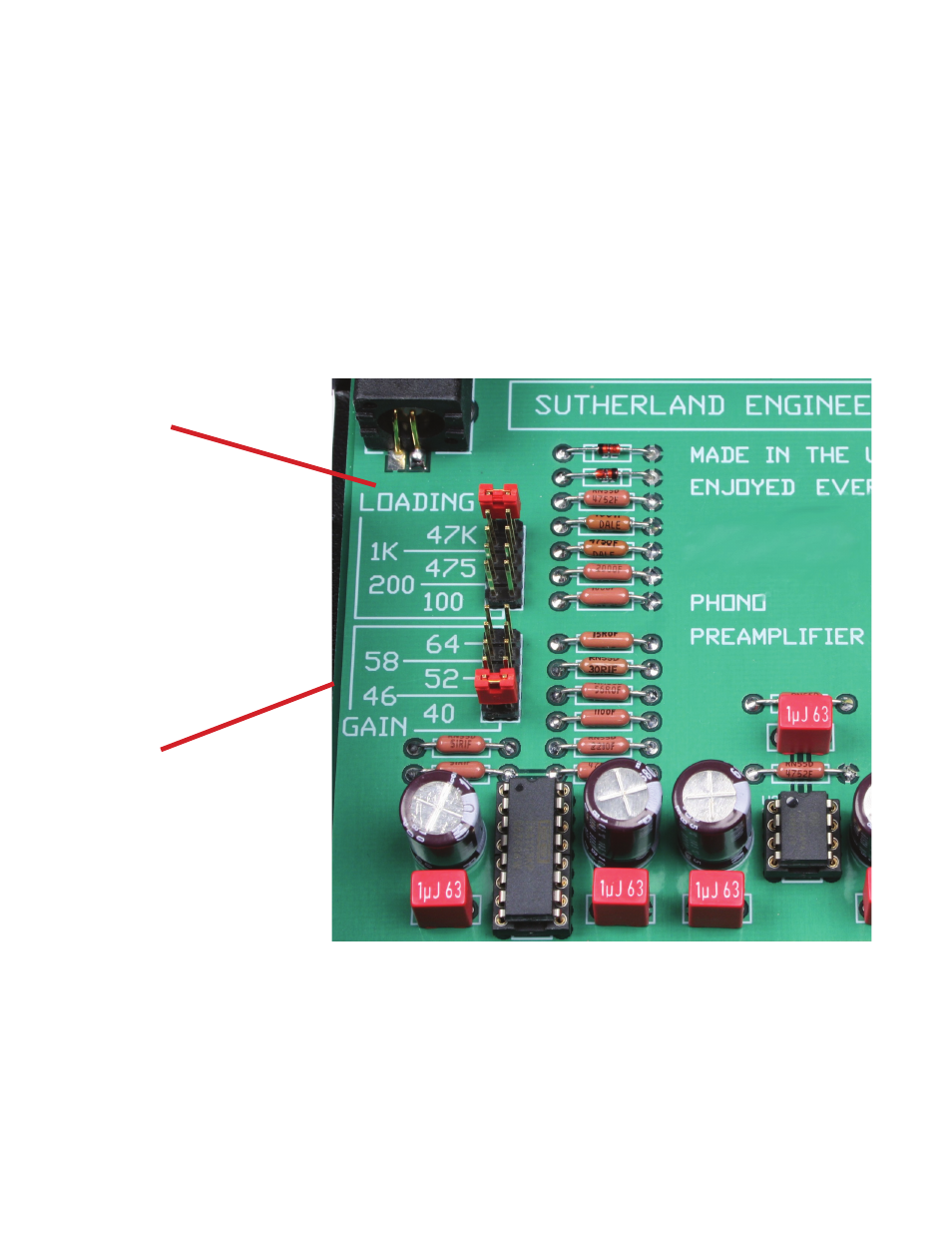

Release the top cover by removing the four knurled screws. Audio boards are located
on the right side of the enclosure. On the left side of each circuit board you will find
headers for receiving the plug-in configuration shunts. Legends printed on the circuit
board clearly indicate position and function.
Loading Options
47 k Ohms
1 k Ohms
475 Ohms
200 Ohms
100 Ohms
Gain Options
64 dB
58 dB
52 dB
46 dB
40 dB
M
ake sure that loading and gain options are set so that each
chassis has identical settings.
