Installation Instructions
7
Adjusting Roll
1. Using a 9/16" wrench, loosen the Nylock roll adjustment nut
on back of mounting plate. (See Figure 6)
2. Tilt the faceplate left or right as required.
3. TIghten nut.
NOTE:
Do NOT overtighten fasteners.
Adjusting Pitch
1. Adjust display to the desired pitch.
2. Using the 5/32" hex head wrench (C), tighten the pitch
adjustment screw to hold mount in position. (See Figure 6)

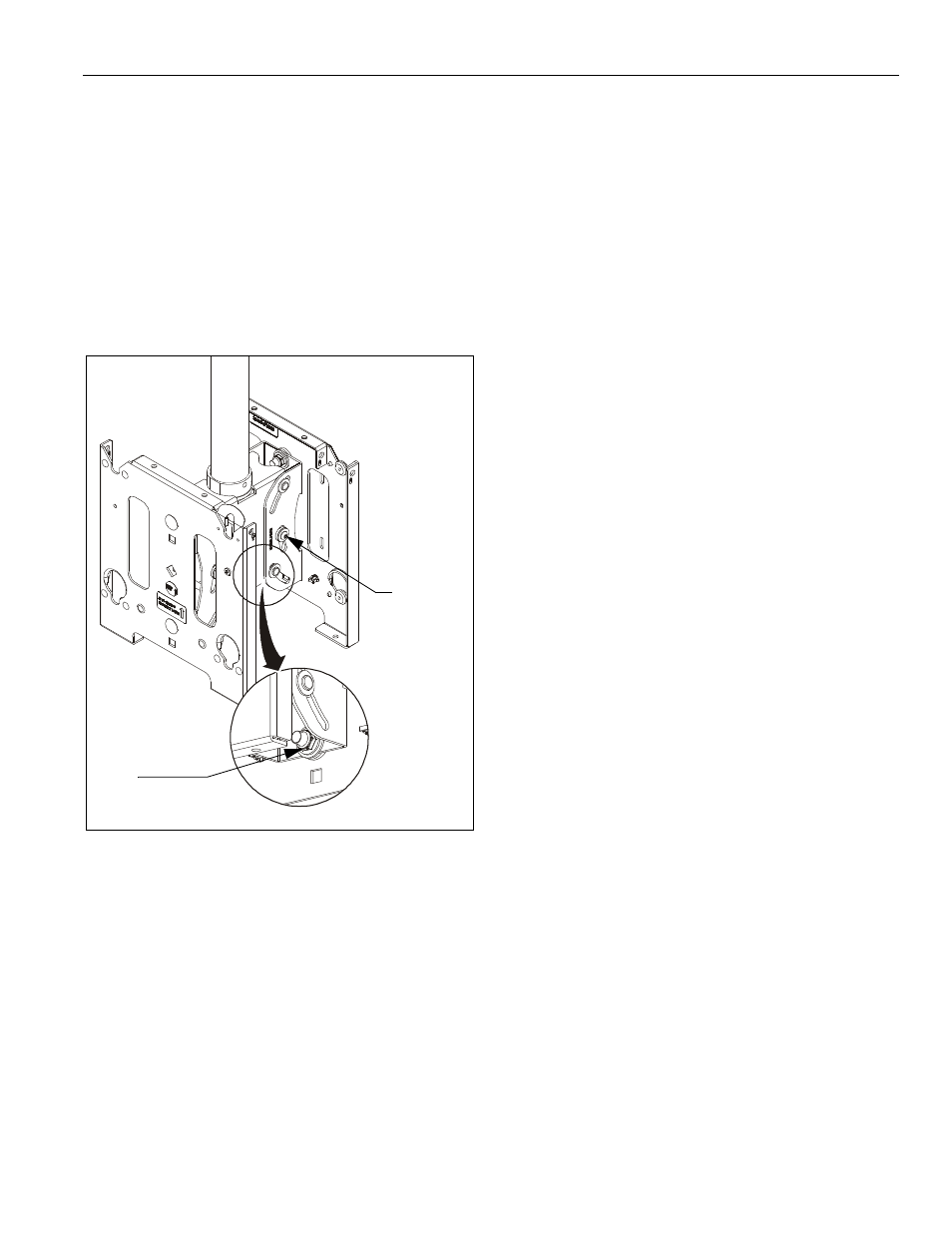

Figure 6
Roll
Adjustment
Pitch
Adjustment
Screw
Nut
