NOTE: It is important to replace the point and cutting edges when they show signs of excessive wear.

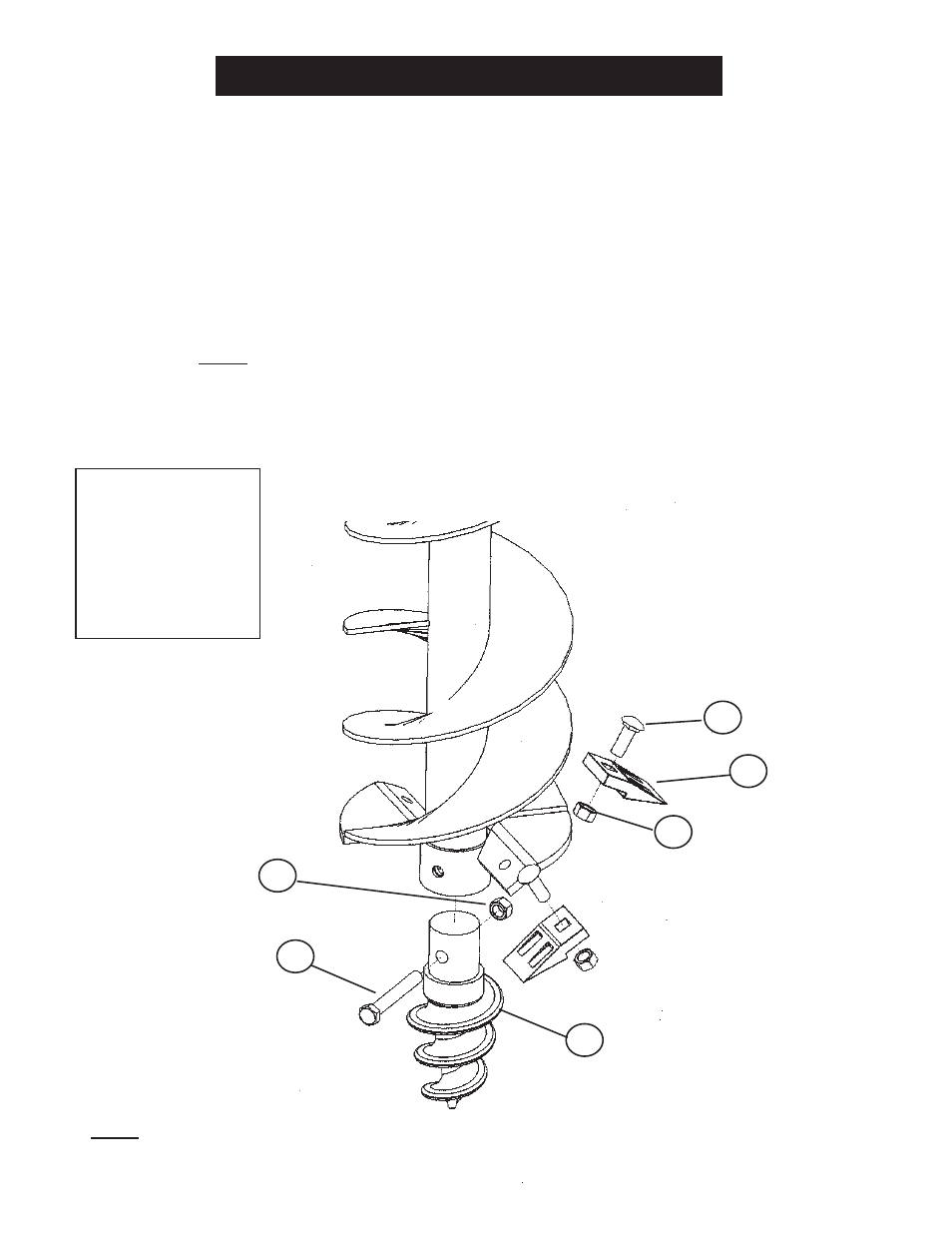

CUTTING EDGES AND POINT PARTS BREAKDOWN
O/L- Obtain locally. Common fasteners available through hardware and farm stores.
ILLUSTRATION D
*NOTE:The number of cutting edges varies by auger size. Check your auger
when ordering replacement cutting edges. See information below.
1
2
3
4
5
6
6 in Number of Cutting Edges
Per Auger
6 in. (24121100)- 2
9 in. (24121400)- 2
12 in.(24121700)- 4
18 in.(24054800)- 4
24 in.(24054900)- 6
in. auger (
REFERENCE
NUMBER
SKU
NUMBER
PART
NUMBER DESCRIPTION
NUMBER
REQUIRED*
1 24122200 PD241222 Cutting Edge varies by auger
2 O/L O/L 1/2 in.-1 in. UNC Carriage Bolt 1 per cutting edge
3 O/L O/L 1/2 in. UNC Lock Nut 1 per cutting edge
4 O/L O/L 1/2 in. x 3 -1/2 in. Bolt 1
5 O/L O/L 1/2 in. Lock Nut 1
6 24121900 PD241219 Auger Point 1
