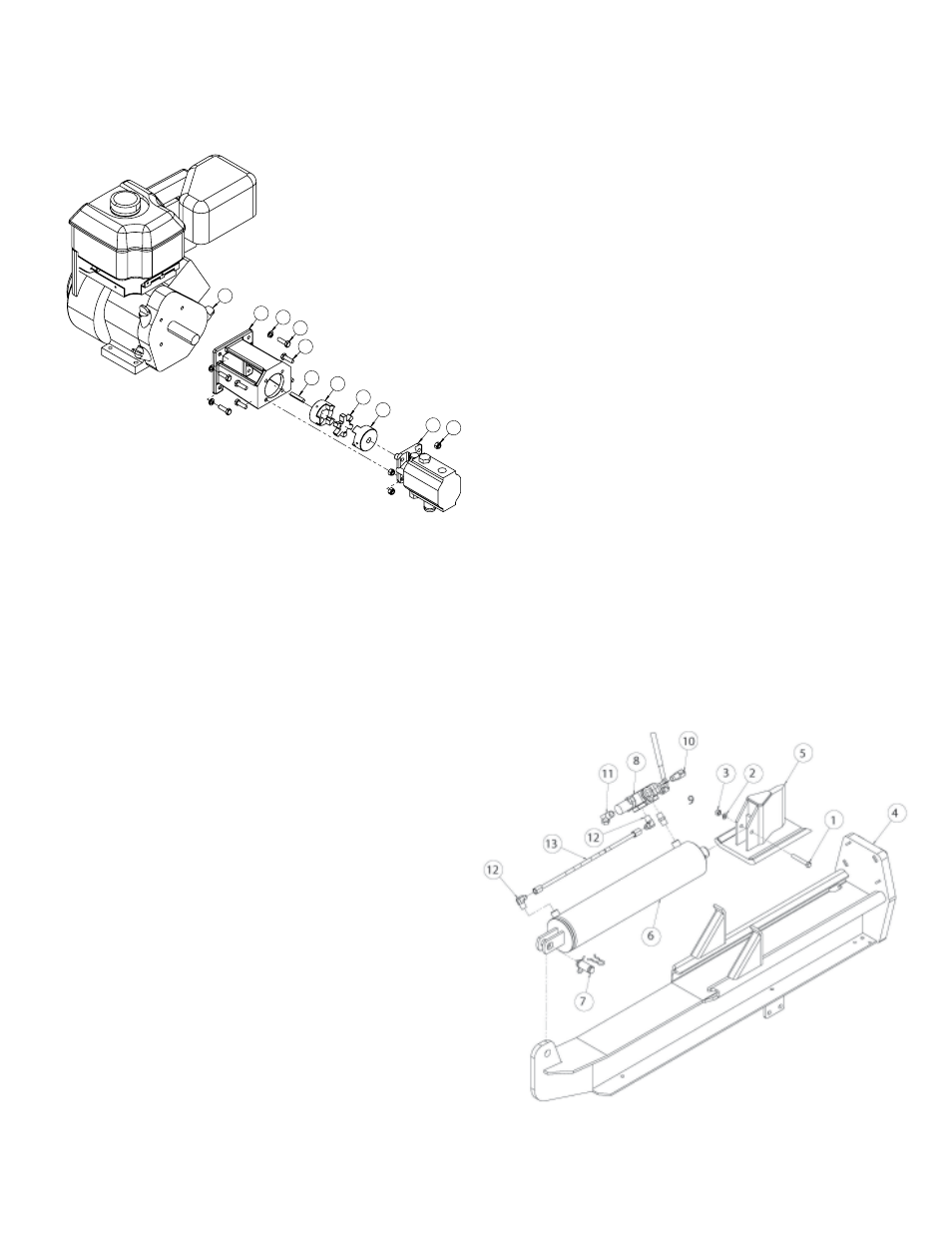

BEAM ASSEMBLY BREAKDOWN
O/L- Obtain locally. Common fasteners available through
hardware and farm stores.
ITEM NO. PART NO. DESCRIPTION QTY.
1 O/L 1/2” x 3-1/4” GR 5 Bolt 1
2 O/L 1/2” Regular Lock Washer 1
3 O/L 1/2” Hex Nut 1
4 401413S0 Beam 1
5 40141800 Wedge 1
6 390117B0 5” Cylinder 1
7 07073100 Cylinder Pin 1
8 390406SC Valve 1
9 39034300 1/2” NPT Nipple 1
10 39032000 3/4” x 3/4” NPT Tube 1
11 39039000 45° Swivel Fitting, 3/4” male, 1
1/2” female
12 39034700 1/2” Pipe to Steel Tubing 2
13 39034600 1/2” Steel Tubing 1
4
5
3
1
2
9
6
8
7
11 10
ITEM NO. PART NO. DESCRIPTION QTY.
1 17054400 5/16” X 1” UNF GR5 Bolt 4
2 17053900 5/16” x 1-1/4” GR5 Bolt 4
3 17030900 5/16” Regular Lock Washer 4
4 39053100 Honda 240 Engine 1
5 40081800 Pump Mount 1
6 400825L0 Jaw Coupler, 1” Bore 1
7 400826L0 Jaw Coupler, 1/2” Bore 1
8 400827L0 Rubber Spider 1
9 40034300 1/2” SQ. x 1-1/2” SQ. Key 1
10 39070900 Pump, 16 GPM 1
11 17020700 5/16”-18 UNC, Nylock Nut 4
ENGINE/PUMP ASSEMBLY BREAKDOWN
