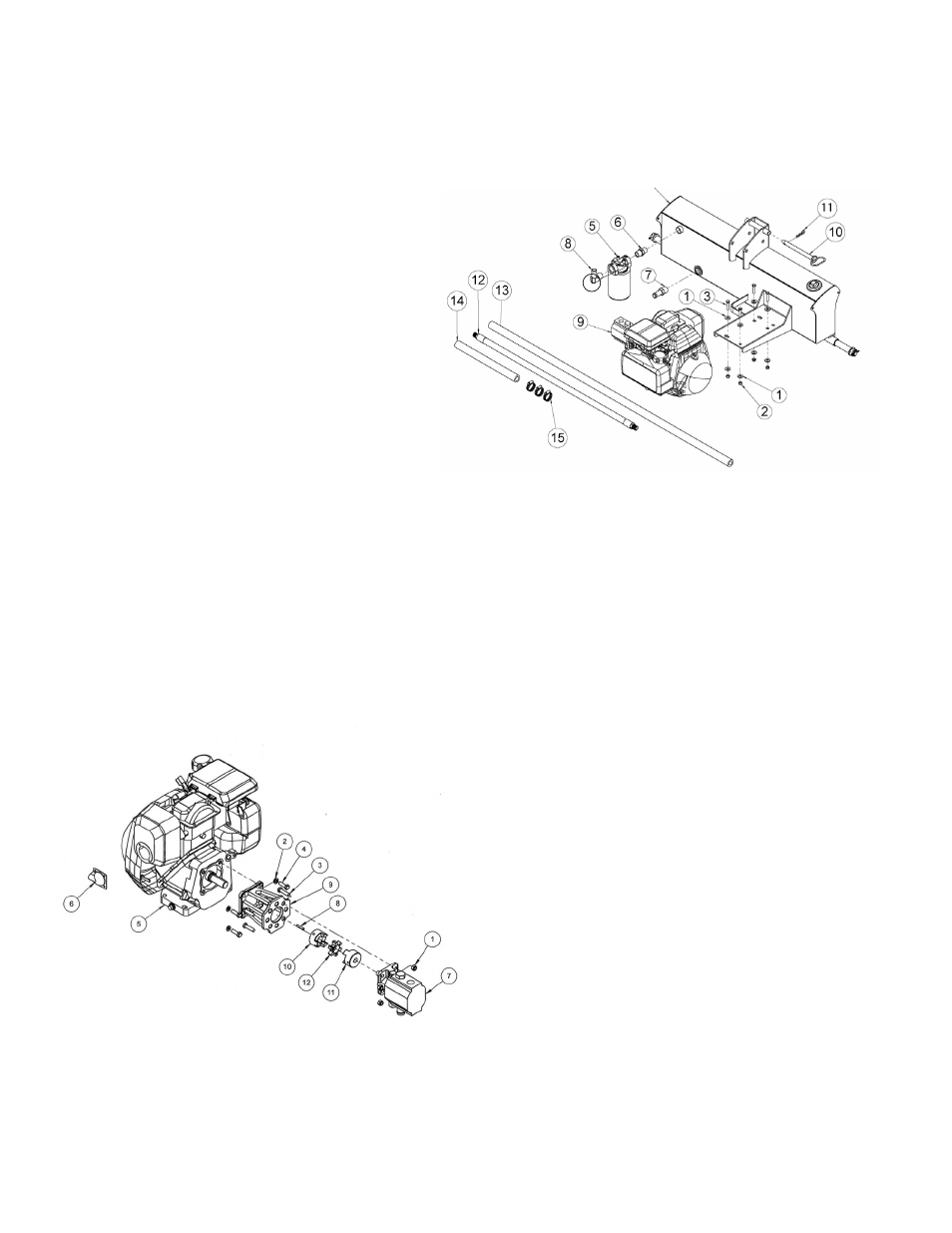

TANK/ENGINE ASSEMBLY BREAKDOWN
ITEM NO. PART NO. DESCRIPTION QTY.
1 O/L 5/16” Flat Washer 8
2 O/L 5/16”-18 UNC Nylock Nut 4
3 O/L 5/16” x 1-1/2” GR 5 Bolt 4
4 S40118800 Tank 1
5 S390604B0 25 PSI Filter Base 1
5A S3920601A0 Filter Element 1
6 S39049000 Hex Nipple 1
7 S39038300 Straight Fitting, 3/4” NPT 1
to 3/4” ID Tube
8 S39032000 3/4” NPT x 3/4” Tube 1
9 S39073100 Pump/Honda GC190 Assy. 1
10 S071022WC Pivot Pin 1
11 O/L 1/2”-3/4” Hairpin Cotter 1
12 S39027500 1/2” x 38” Pressure Hose 1
13 S39027400 3/4” Return Hose 1
14 S39027300 3/4” Suction Hose 1
15 S39031600 Worm Gear Clamp 3
5A
Page 10
PUMP/ENGINE ASSEMBLY BREAKDOWN
ITEM NO. PART NO. DESCRIPTION QTY.
1 O/L 5/16”-18 UNC Nylock Nut 4
2 O/L 5/16” Regular Lock Washer 4
3 O/L 5/16” x 1-1/4”GR5 Hex Bolt 4
4 O/L 5/16” x 1 UNF GR5 Hex Bolt 4
5 S39054200 Honda GC190 Engine 1
6 S39069500 Exhaust Deflector 1
7 S390705B0 11 GPM Pump 1
8 S40034800 3/16” x 1” Square Key 1
9 S40081200 Pump Mount 1
10 *N/A Jaw Coupler, 3/4” Bore 1
11 *N/A Jaw Coupler, 1/2” Bore 1
12 *N/A Rubber Coupler Spider 1
* Available as complete coupler assembly only. Order part number
S400820L0. Includes item numbers 10, 11 and 12.
REPLACEMENT PARTS
O/L- Obtain locally. Common fasteners available through
hardware and farm stores.
O/L- Obtain locally. Common fasteners available through
hardware and farm stores.
