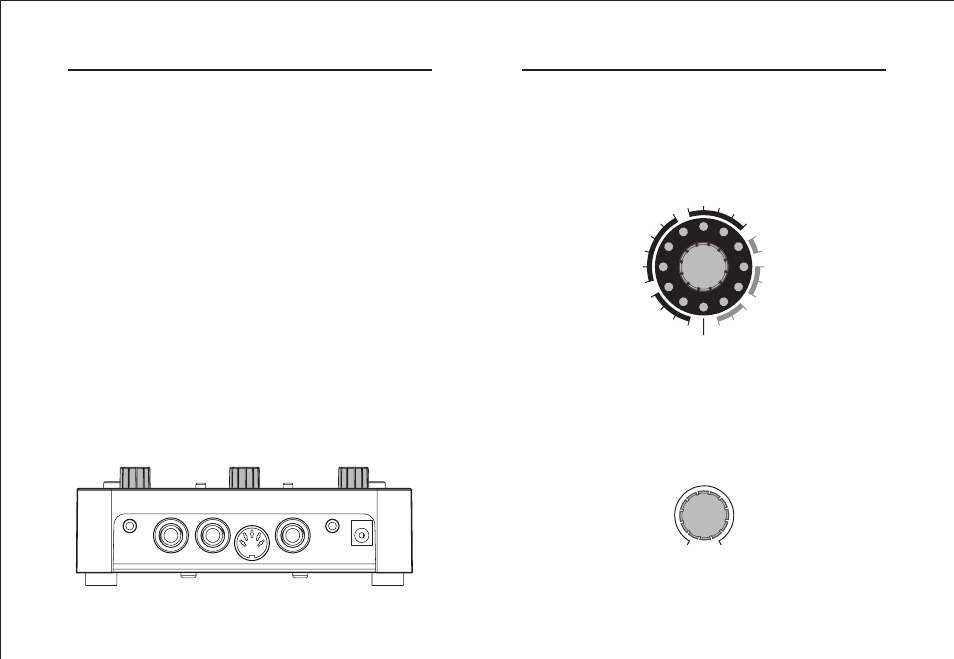

CONTROLS: KNOBS
EFFECT (not labeled)
The effect knob selects which distortion type will be used. There are
23
effect positions ( 0 through 22 ) around the knob as well as a setting for
CLEAN BOOST/EQ . In the CLEAN BOOST/EQ mode, the distortion effect is
bypassed but the output, mix, and equalizer still apply. For information
on the individual settings see the Effect Types section.
EQ AMOUNT
This is a master control for the equalizer. It changes the amount of the
equalizer curve that is applied to the signal. To utilize the full effect of
the
EQ , this knob should be turned fully clockwise to the FULL mark. The
other settings for this control can be useful for morphing applications or
for tweaking the overall tone.
CONNECTIONS
GUITAR IN
Connect your bass guitar or other instrument here using a standard
MONO ¼" cable.
GUITAR OUT
Connect this to your amp, pedal, or other audio device.
EXPRESSION IN (optional)
Connect a passive expression pedal that uses a
TRS plug here. Allows
morphing of sounds between banks A and B.
SENSOR IN (optional)
Connect an optional Hot Hand sensor here, either wired or wireless.
SENSOR OUT (optional)
Use a Source Audio daisy-chain cable to connect this jack to the sensor
input of another pedal.
MIDI IN (optional)
MIDI program and continuous control input. Connect to a MIDI output
with a standard MIDI cable
9V DC
Connect the included
9 Volt DC power supply here. Use of a non-Source
Audio power supply may cause damage and void the warranty.
17
MULTI BAND
SINGLE BAND
02
03
04
05
06
07
08
09
10 11 12
13
14
15
16
18
19
21
22
CLEAN BOOST / EQ
00
20
01
OCTAVE
NORMAL
FOLDBACK
OCTAVE
NORMAL
FOLDBACK
EQ AMOUNT
FULL 0
SENSOR
IN
SENSOR
OUT
GUITAR IN GUITAR OUT
9V DC
EXP IN
MIDI IN
