8 | Connections

CONNECTIONS

GUITAR IN: Connect your bass or other instrument here using a standard

MONO ¼" cable.

GUITAR OUT: Connect this to your amp, pedal, or other audio device.
MULTI-FUNCTION IN (optional): The multi-function input is a flexible
control input for use with external controllers. It can accept digital or

analog signals which allows the Soundblox 2 Multiwave Bass to interface
with the following accessories:

SA110/SA115 Hot Hand Wireless Adapter

SA111 Hot Hand Wired Sensor

SA161 Source Audio Dual Expression Pedal

Source Audio Soundblox 2 MIDI Adapter

MULTI-FUNCTION OUT (optional): Use a Source Audio daisy-chain cable

to connect this jack to the sensor input of another Soundblox pedal.

9V DC: Connect the included 9 Volt DC power supply here. Use of a non-
Source Audio power supply may cause damage. Please be very cautious

when using a 3rd party power supply.

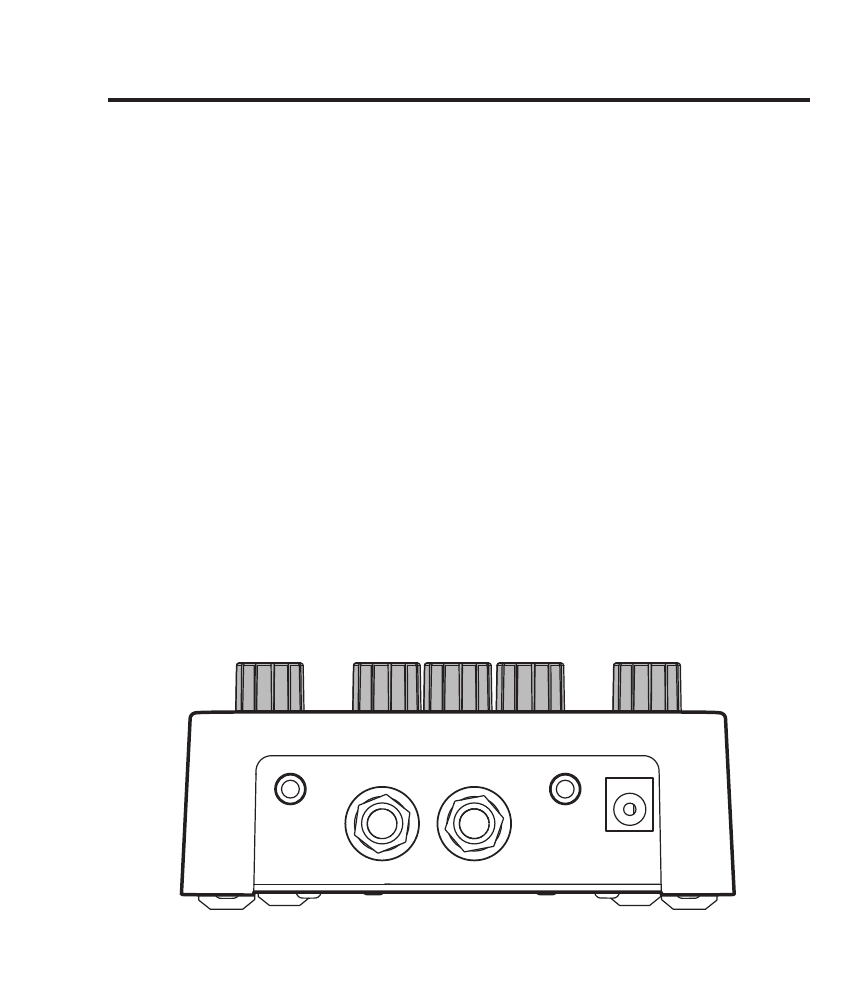

GUITAR IN

MULTI-

FUNCTION

IN

MULTI-

FUNCTION

OUT

GUITAR OUT

9V DC
