Source Audio Hot Hand USB - Manual (Page 7)

Additional Software Features

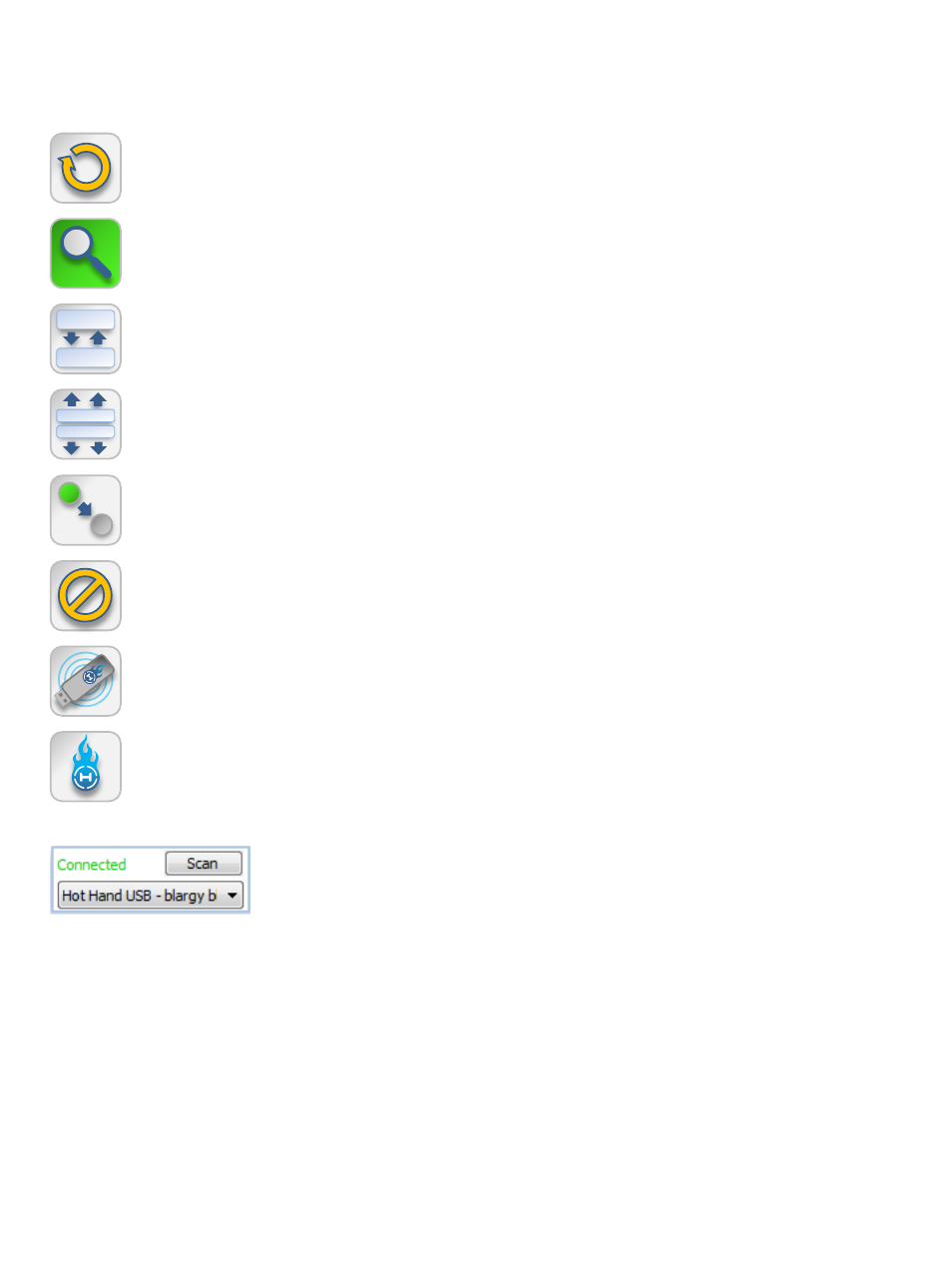

Toolbar Controls:
S
S
Reload – refreshes the current settings from the Editor to the USB Receiver. This
function will NOT burn settings to the flash memory.
Monitor ON/OFF – Enables or disables the monitor graph for each module. The
graphical updates require a small amount of CPU cycles so you might want to
turn them off in some cases.
Collapse – shrinks all open modules down to their minimum size. The
monitor graphs are still visible.
Expand – Expands all enabled modules to their maximum graphical size.
Un-Solo – Turns off the solo function for all MIDI outputs.
Mute – Disables (Mutes) all MIDI output.
Radio Reset – Tells the Receiver to cancel the link with the currently used
Hot Hand Ring and begin searching for a new Ring.
Burn – Writes the current software settings to the flash memory of the USB
Receiver. Burning can be done to 128 possible memory locations. Select a memory
slot to use when Burn is pressed. *See MIDI Control Section
Hardware Info block – Displays information about Hot Hand USB
receivers that are currently connected to the computer. Use the “Scan”
function to refresh the list of connected hardware. Use the drop down
menu to select which USB Receiver you would like to connect to and
edit. Up to four receivers can be used at a time.
File Menu: Here’s a brief description of the extra functions found in the File menu.
• Rename writes a name to the flash on the USB Receiver. Making it easier to tell one
Receiver from another.
• Identify In case multiple receivers are being used this will blink the LEDs on the current
receiver so that you can see which is currently in use.
• Firmware Update In the case that we have made changes or feature improvements to the
firmware on the USB Receiver, you can update the firmware using this function. You can
view the current version of firmware on your Receiver and check the web for a new version
or load a specific file instead.
