OHM107VD
English
1. Identify what the polarity the vehicle Dome
Light circuit is. * Refer to section 6 : "9. Polarity
Switch" on Page 16 and set this switch correctly.
2. To prevent short circuits, remove the key
from the ignition and disconnect he terminal of
battery.
3. Disconnect the original dome light.

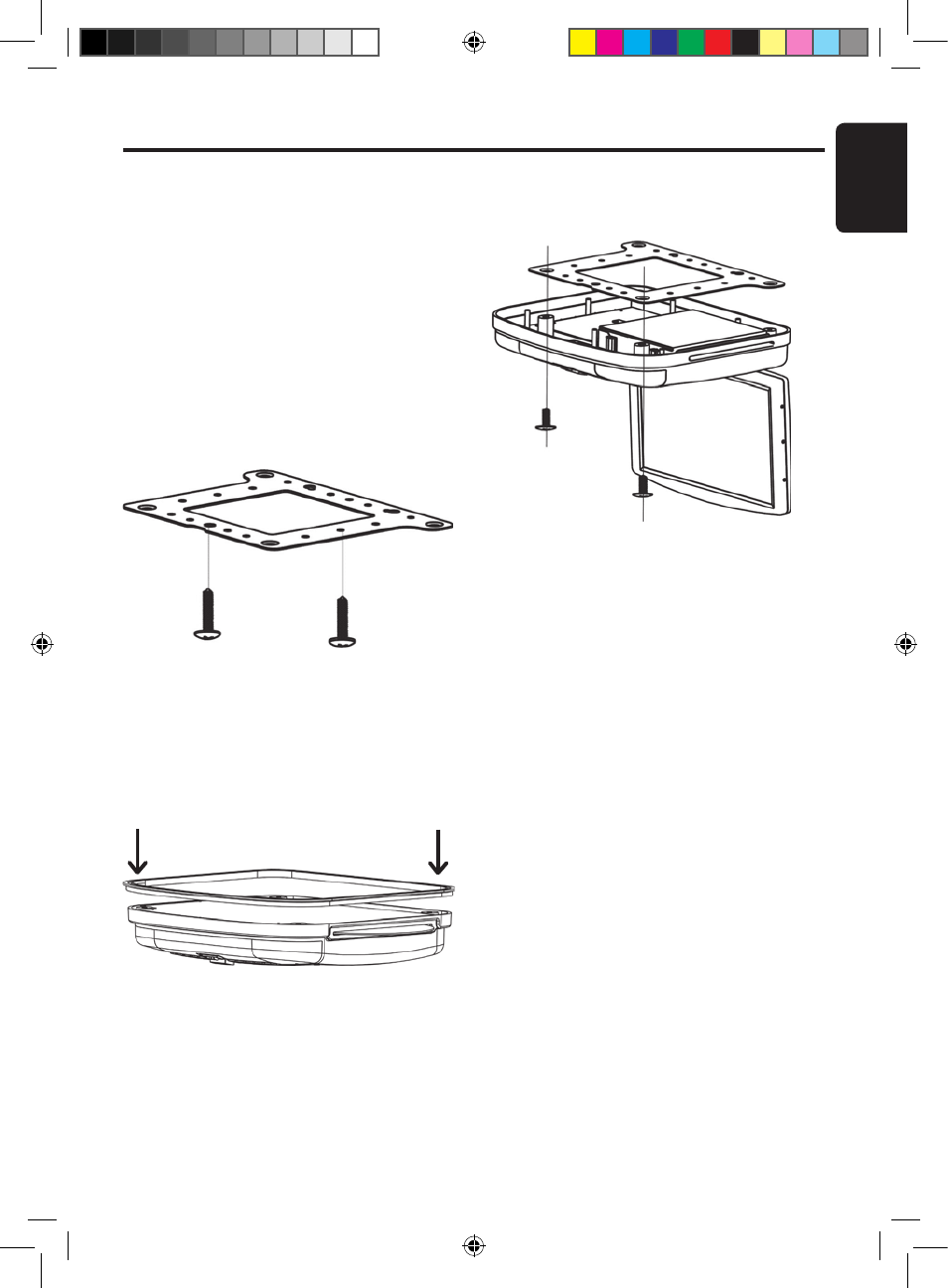

4. Attach the metal mounting plate to the roof
Using the ST4.2*16 screws.
Note: Do not to cover the original dome light
opening.
5. Pull out the original dome light Power wire
and signal/power cable through the original
dome light opening.
6. Place the rubber on the player surround
7. Connect input and output cables.
8. Connect the wire harness in the following or-
der: Ground wire (Black), Battery wire (Yellow),
+ACC wire (Red) and Door wire (Green).
9. Attach the DVD player to the metal mounting
plate using the CM 4x10 screws.
10. Reconnect the terminal of the battery.
Notes:
• Remember to connect the red wire to the ACC
of the ignition switch. Or the battery charge
might be drained prematurely.
• If the fuse is opened, first make sure that the
cables have not caused a short circuit, and
then replace the old fuse with a new one of the
same ratings.
• Do not have unconnected cables or termi-
nals touch the metal on the car or any other
conducting material.
• To prevent short circuits, do not remove the
caps from unused terminals or from the ends of
the unconnected cables.
• After the display unit is installed, check and
make sure the brake lights, blinkers, wiper, etc.
on the vehicle are working properly.
• Insulate unconnected wires with vinyl tape or
other similar material.
• Make sure that cords and other items do not
get caught in the panel when you close it.
For your safety, be sure to close the LCD panel
when not use it.
Installing the player
