3. Removing element for service/maintenance.
A. Carefully remove retaining nut and washer over top plate. Lift off the top
plate and remove the element.
B. Clean sealing surfaces of housing, top plate and element end caps so that
they are free of dirt or any other particulate.
*WARNING*
Failure to comply with these instructions
may result in system or equipment
contamination.
4. Securing Element.
A. Place new or cleaned element evenly on base plate. Be sure element
seats properly on base and there is no dirt or particulate present on
sealing surfaces. With multiple element stacks place elements in line with
base element and ensure elements seat properly.
B. Place top plate on element by centering on tap bolt.
C. Secure washer and hex nut to top plate and tap bolt. Element must be
tightly secured. Note: Do NOT over tighten!

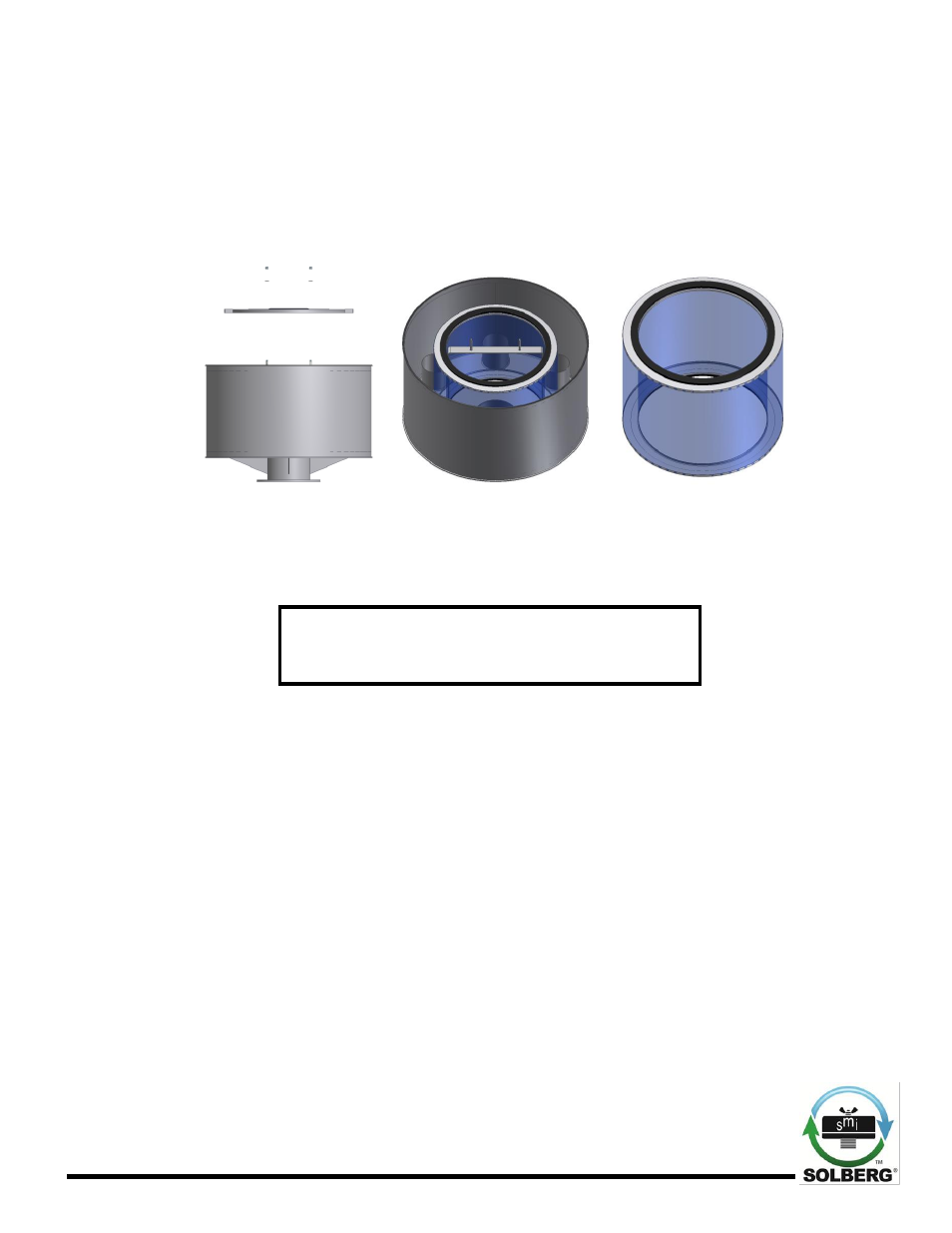

Figure C.3.1: Removal of hex
nut, washer, and top plate. Figure C.3.3: Element with gaskets. Figure C.3.2: Element sitting
in housing base.
