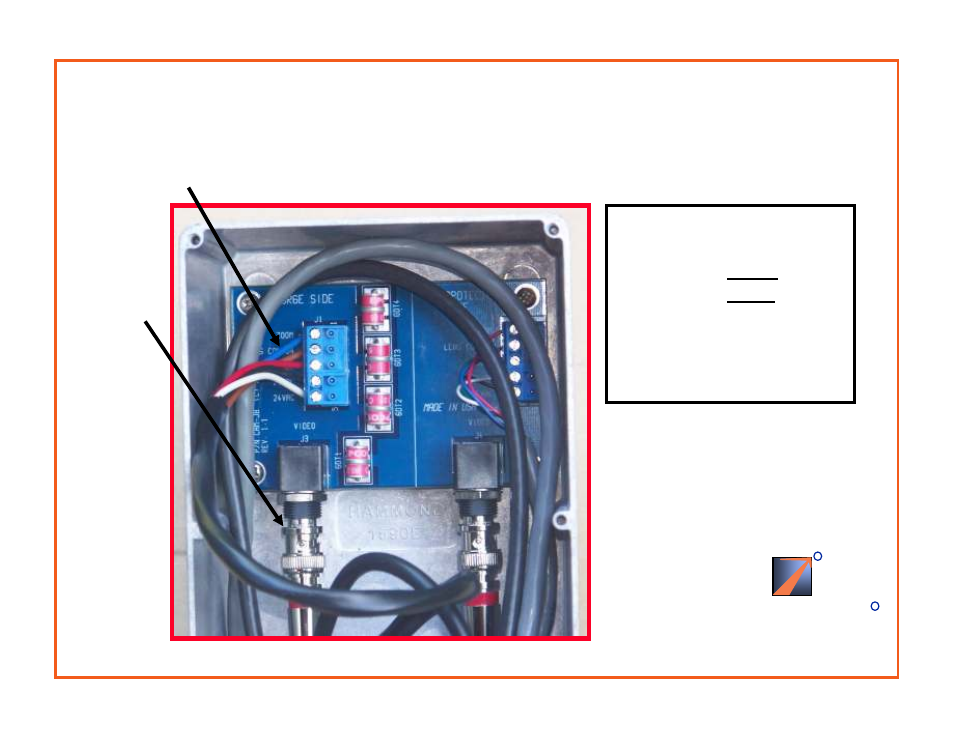

Connecting a Five Conductor Home Run to the SVS Junction Box
Home Run
Power and Control
Five Conductor Home Run
24 VAC (White )
24 VAC (Black )
Focus Control (
Red
)
Lens Common (
Brown
)
Zoom Control (
Blue
)
Home Run
Video BNC
