Sigtronics 900092 - Manual (Page 2)

D-FFKDS 1 -2,54
A
B
C
D
E
F
D-FFKDS 1 -2,54
A
B
C
D
E
F
D
Handset
Plug this connector into
your manpack radio.
Plug your handset into the
900092 adapter.
The wire color below is for Sigtronics
emergency wiring connections.

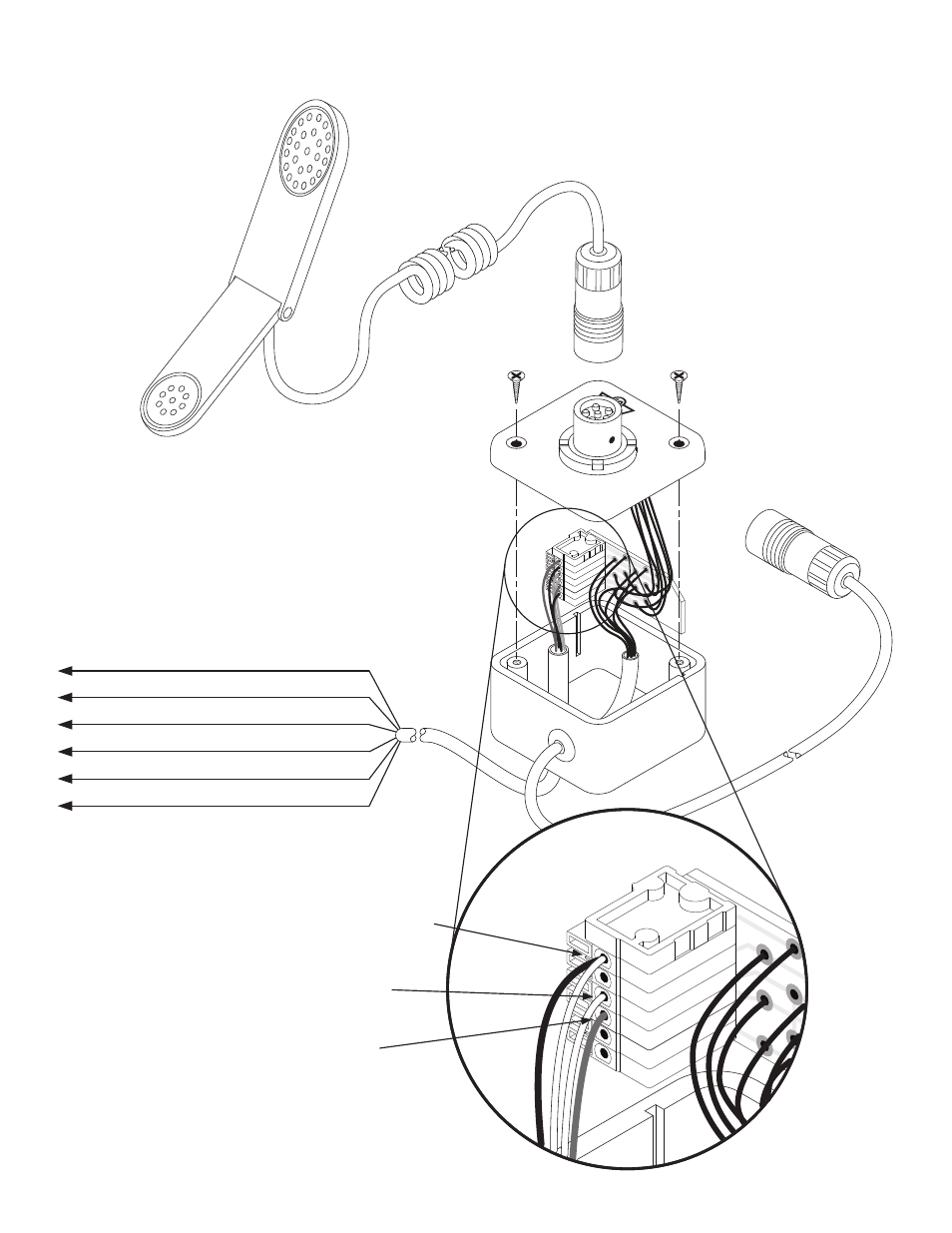

900092
“Y” Adapter
Terminal Block B: Speaker High
Terminal Block A: Mic Low, PTT Low, Speaker Low
Terminal Block C: PTT High
Terminal Block D: Mic High
Terminal Block E: Exp
Terminal Block F: Ext
Either White: PTT Low. To terminal block C
Brown: Mic High. To terminal block D
Black & White: Mic & PTT Low. To terminal block A
2-10-2014 900092.pdf
Sigtronics 900092 “Y” Adapter
