Headsets and mobile radios not included with intercom system.
Radio Transmit
Dual PTT Switches
and a Headset Jack
(2 positions)
Headset Jack
(2 positions)
Up to 8 headset positions, 4 with radio
transmit (5 with pump panel option).
This system will allow transmissions from
2 headset positions on 2 different radios
at the same time.
Mounting Hardware and Hookup Wire
included with system.
SE-48
Headset

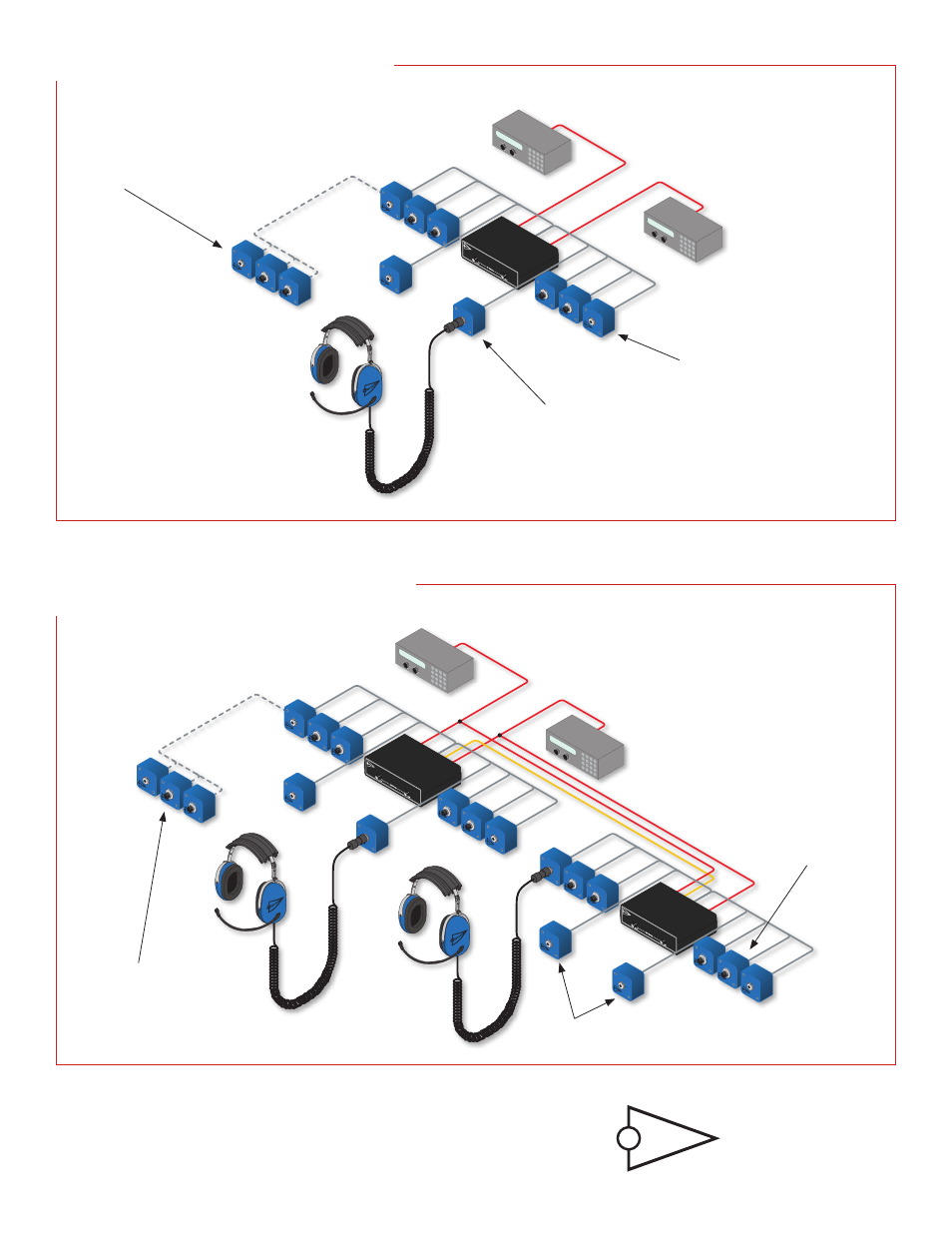

UltraSound CFR Crash Fire Rescue Intercom
PTT & Headset Jack
Mounting Boxes
1⁵⁄16˝ x 2˝ x 2˝
UltraSound CFR ST Crash Fire Rescue Intercom
Simultaneous Transmit
User supplied
mobile radios.
Pump Panel Option
Dual PTT Switches
Headset Jack
Up to 4 headset positions, 2 with radio
transmit (3 with pump panel option).
Mounting Hardware and Hookup Wire
included with system.
User supplied
mobile radios.
Headset Jack
(4 positions)
Radio Transmit
Dual PTT Switches
and a Headset Jack
(4 positions)
Pump Panel Option
Dual PTT Switches
Headset Jack
Headsets
For use with helmets:
• SE-8: Standard Dual Ear Cup
For use without helmets:
• SE-18: Single Ear Cup
• SE-48: Standard Dual Ear Cup
Accessories
• Belt PTT Headset Extension Cable
• Foot Operated PTT Switch
SE-48
Headset
