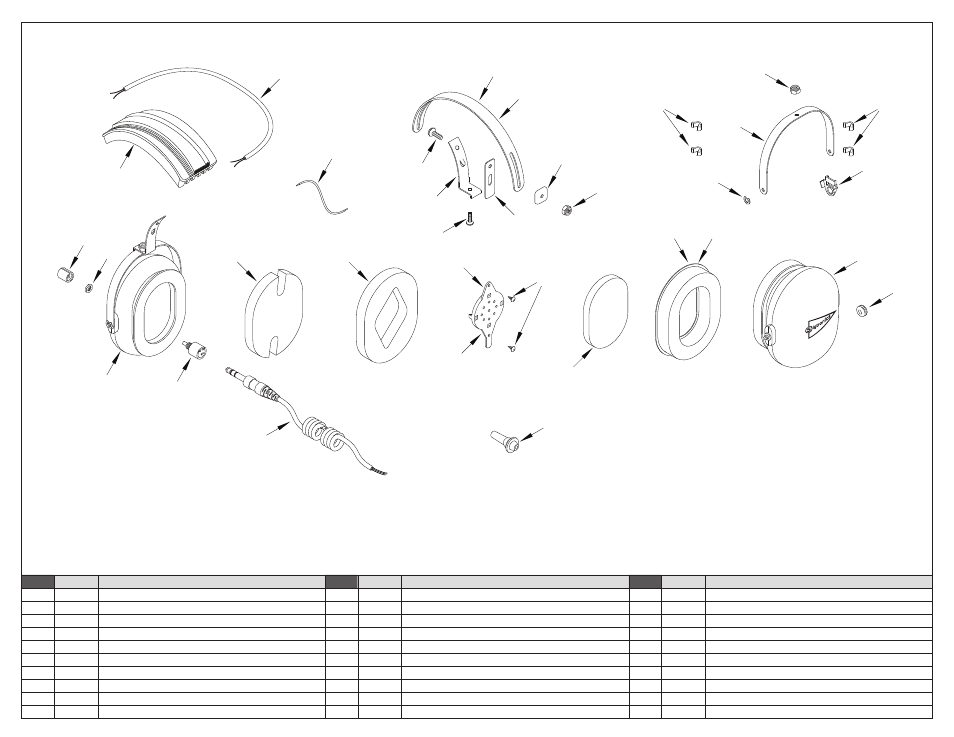

SIGTRONICS SEH-40 HEADPHONE PARTS IDENTIFICATION BREAKDOWN
ITEM P/N DESCRIPTION ITEM P/N DESCRIPTION ITEM P/N DESCRIPTION
1 100049 GROMMET, 5/16 INCH, RUBBER 11 100364 SCREW, 8-32 X 3/8, PHILLIPS HEAD 21 100258 CLIP, HEADBAND GUIDE, PLASTIC
2 100063 KNOB, 3/8 INCH, BLACK 12 100366 WIRE, 2 CONDUCTOR, #24, BLACK, 28 INCHES 22 100393 CLIP, ANTI-ROTATION, YOKE, PLASTIC
3 100077 POTENTIOMETER 13 100367 YOKE, EAR CUP MOUNT, METAL 23 100383 HEADBAND, METAL, STANDARD
4 100079 RECEIVER, 300 OHM, MONO 14 100369 EAR SEAL, FOAM FILLED 24 100384 BRACKET, YOKE SUPPORT WITH TANG
5 100108 SCREW, 4-40 X 1/4, THREAD FORMING 15 100370 RECEIVER MOUNT, HEADSET 25 800035 CABLE, HEADSET, STEREO, COILED
6 100251 E-RING, EAR CUP TO YOKE RETAINER 16 100221 WIRE, #22, 19 STRAND, 4 INCH 26 800048 HEADBAND , WITH CUSHION, SE-40
7 100252 NUT, HEX, 8-32, LOCKING 17 100373 SLIDE, YOKE BRACKET, LONG, NYLON 27 100568 STRAIN RELIEF, CABLE
8 100361 EAR CUP, PRINTED AND DRILLED, MIC & NON MIC SIDE 18 100374 FOAM, SOUND ATTENUATING. NOTCHED, 1/2 INCH 28 100257 OPTIONAL – HEADBAND, METAL, LARGE
9 100362 CLIP, CROSS-OVER, WIRE, PLASTIC 19 100376 FOAM, SOUND ATTENUATING. RECEIVER HOLE, 1/2 INCH 29 100402 OPTIONAL – EAR SEAL, GEL FILLED
10 100363 SCREW, 8-32 X 1/2, PHILLIPS HEAD 20 100379 FOAM, SOUND ATTENUATING, RECEIVER COVER, 1/4 INCH
