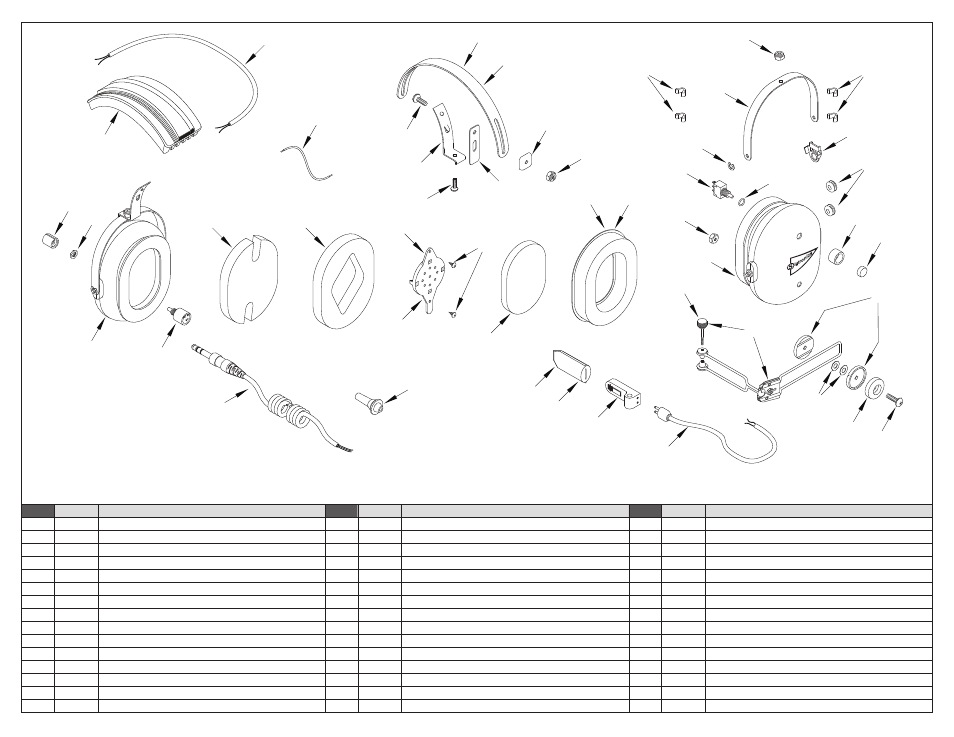

SIGTRONICS SE-40P HEADSET PARTS IDENTIFICATION BREAKDOWN
ITEM
P/N
DESCRIPTION
ITEM
P/N
DESCRIPTION
ITEM
P/N
DESCRIPTION
1
100049
GROMMET, 5/16 INCH, RUBBER
16
100369
EAR SEAL, FOAM FILLED
31
800039
CABLE, MICROPHONE BOOM, 12 INCH
2
100063
KNOB, 3/8 INCH, BLACK
17
100370
RECEIVER MOUNT, HEADSET
32
800048
HEADBAND , WITH CUSHION, SE-40
3
100077
POTENTIOMETER
18
100221
WIRE, #22, 19 STRAND, 4 INCH
33
800082
MICROPHONE, ELECTRET, M-80
4
100079
RECEIVER, 300 OHM, MONO
19
100373
SLIDE, YOKE BRACKET, LONG, NYLON
34
100568
STRAIN RELIEF, CABLE
5
100108
SCREW, 4 X 1/4, THREAD FORMING
20
100374
FOAM, SOUND ATTENUATING. NOTCHED, 1/2 INCH
35
100156
SCREW, THUMB, MICROPHONE BOOM, 2-56 X 1
6
100249
BOOM, ELECTRET MICROPHONE SUPPORT, SWIVEL
21
100376
FOAM, SOUND ATTENUATING. RECEIVER HOLE, 1/2 INCH
36
900084
WINDSCREEN, MICROPHONE, FOAM, PACKAGED
7
100251
E-RING, EAR CUP TO YOKE RETAINER
22
100379
FOAM, SOUND ATTENUATING, RECEIVER COVER, 1/4 INCH
37
100415
WINDSCREEN, MICROPHONE, FOAM, BULK
8
100252
NUT, HEX, 8-32, LOCKING
23
100366
WIRE, 2 CONDUCTOR, #24, BLACK, 28 INCHES
38
100232
SWITCH, SPDT, MOMENTARY
9
100361
EAR CUP, PRINTED AND DRILLED, MIC & NON MIC SIDE
24
100258
CLIP, HEADBAND GUIDE, PLASTIC
39
100625
O-RING, PTT, HEADSET
10
100362
CLIP, CROSS-OVER, WIRE, PLASTIC
25
100393
CLIP, ANTI-ROTATION, YOKE, PLASTIC
40
100428
SWITCHGUARD, PTT, BLACK
11
100363
SCREW, 8-32 X 1/2, PHILLIPS HEAD
26
100383
HEADBAND, METAL, STANDARD
41
100317
BUTTON, SWITCH, PTT, RED
12
100364
SCREW, 8-32 X 3/8, PHILLIPS HEAD
27
100384
BRACKET, YOKE SUPPORT WITH TANG
42
100257
OPTIONAL – HEADBAND, METAL, LARGE
13
100377
SCREW, 8-32 X 5/8, PHILLIPS HEAD
28
100385
WASHER, SPRING, BOOM ADAPTER
43
100402
OPTIONAL – EAR SEAL, GEL FILLED
14
100367
YOKE, EAR CUP MOUNT, METAL
29
100408
WASHER, GROOVED BOOM
15
100368
KNOB, MICROPHONE BOOM ADAPTER, PLASTIC
30
800035
CABLE, HEADSET, STEREO, COILED
