Sigtronics SE-8 - Manual (Page 2)






























 


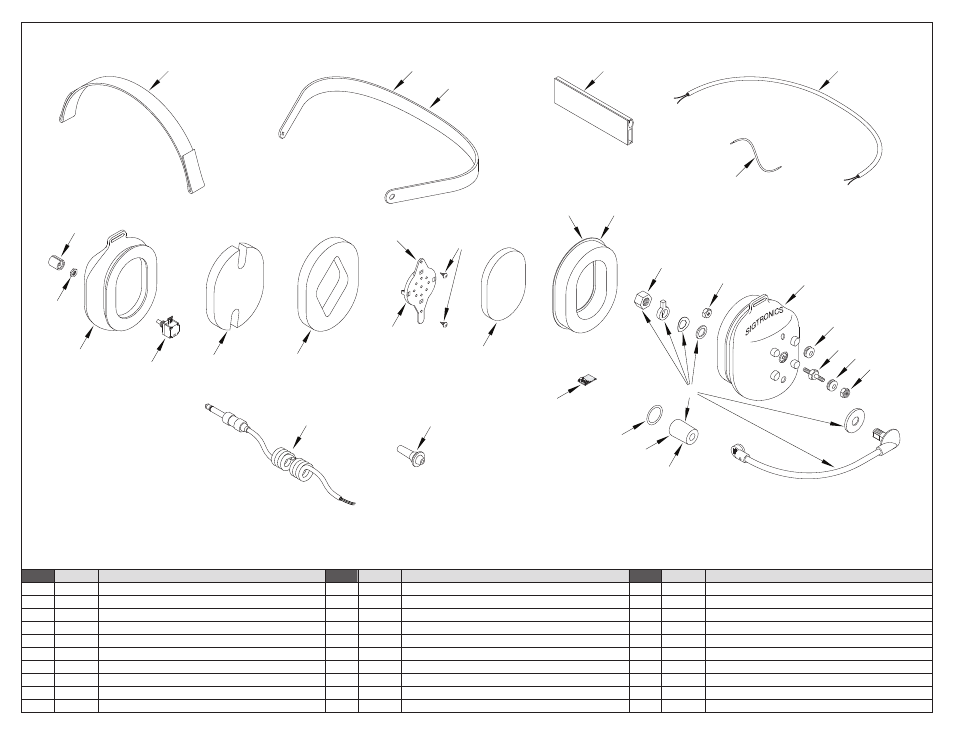

SIGTRONICS SE-8 HEADSET PARTS IDENTIFICATION BREAKDOWN
ITEM P/N DESCRIPTION ITEM P/N DESCRIPTION ITEM P/N DESCRIPTION
1 100049 GROMMET, 5/16 INCH, RUBBER 11 100369 EAR SEAL, FOAM FILLED 21 800220 HEADBAND, METAL, BLACK, WITH GROMMETS, SE-8
2 100063 KNOB, 3/8 INCH, BLACK, VOLUME 12 100370 RECEIVER MOUNT, HEADSET 22 100607 HEADBAND EXTRUSION, 4 IN., SE-8
3 100077 POTENTIOMETER 13 100374 FOAM, SOUND ATTENUATING. NOTCHED, 1/2 INCH 23 100567 GROMMET, SE-8 STUD
4 100079 RECEIVER, 300 OHM, MONO 14 100376 FOAM, SOUND ATTENUATING. RECEIVER HOLE, 1/2 INCH 24 100451 STUD, SE-8, EAR CUP TO BAND MOUNT
5 100108 SCREW, 4 X 1/4, THREAD FORMING 15 100568 STRAIN RELIEF, CABLE 25 800035 CABLE, HEADSET, STEREO, COILED
6 100221 WIRE, #22, 19 STRAND, 4 INCH 16 100379 FOAM, SOUND ATTENUATING, RECEIVER COVER, 1/4 INCH 26 900111 WINDSCREEN, MICROPHONE, FOAM, PACKAGED
7 800193 MICROPHONE & FLEX BOOM ASSEMBLY 17 800192 PREAMP 27 100611 WINDSCREEN, MICROPHONE, FOAM, BULK
8 100252 NUT, HEX, 8-32, LOCKING 18 100612 O-RING, WINDSCREEN RETAINER, SE-8 28 100675 OPTIONAL – HEADBAND, METAL, BLACK, LARGE
9 100366 WIRE, 2 CONDUCTOR, #24, BLACK, 22 INCHES 19 100409 EAR CUP, PRINTED AND DRILLED, MIC & NON MIC SIDE 29 100402 OPTIONAL – EAR SEAL, GEL FILLED
10 100597 NUT, HEX, 3/8-24, FLEX BOOM ADAPTER 20 100411 STRAP, HEADSET, SE-8, BLACK
11-3-2011
P/N 700096
