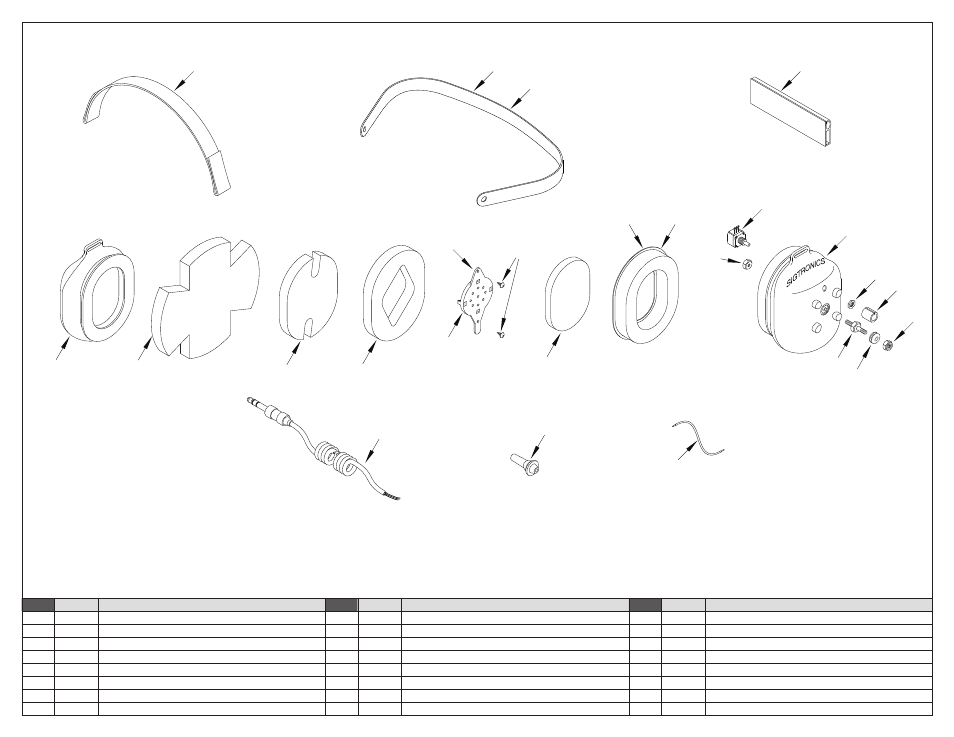

SIGTRONICS SEH-2S HEADPHONE PARTS IDENTIFICATION BREAKDOWN
ITEM P/N DESCRIPTION ITEM P/N DESCRIPTION ITEM P/N DESCRIPTION
1 100567 GROMMET, SE-2 STUD 9 100369 EAR SEAL, FOAM FILLED 17 800220 HEADBAND, METAL, BLACK, WITH GROMMETS, SE-2
2 100063 KNOB, 3/8 INCH, BLACK, VOLUME 10 100370 RECEIVER MOUNT, HEADSET 18 100413 HEADBAND EXTRUSION, 4 IN., SE-2
3 100077 POTENTIOMETER 11 100684 FOAM, SOUND ATTENUATING, FOR SLOTTED EAR CUP ONLY 19 100451 STUD, SE-2, EAR CUP TO BAND MOUNT
4 100079 RECEIVER, 300 OHM, MONO 12 100374 FOAM, SOUND ATTENUATING. NOTCHED, 1/2 INCH 20 800035 CABLE, HEADSET, STEREO, COILED
5 100108 SCREW, 4-40 X 1/4, THREAD FORMING 13 100376 FOAM, SOUND ATTENUATING. RECEIVER HOLE, 1/2 INCH 21 100675 OPTIONAL – HEADBAND, METAL, BLACK, LARGE
6 100221 WIRE, #22, 19 STRAND, 4 INCH 14 100379 FOAM, SOUND ATTENUATING, RECEIVER COVER, 1/4 INCH 22 100402 OPTIONAL – EAR SEAL, GEL FILLED
7 100252 NUT, HEX, 8-32, LOCKING 15 100409 EAR CUP, PRINTED AND DRILLED, MIC & NON MIC SIDE
8 100568 STRAIN RELIEF, CABLE 16 100411 STRAP, HEADSET, SE-2, BLACK
