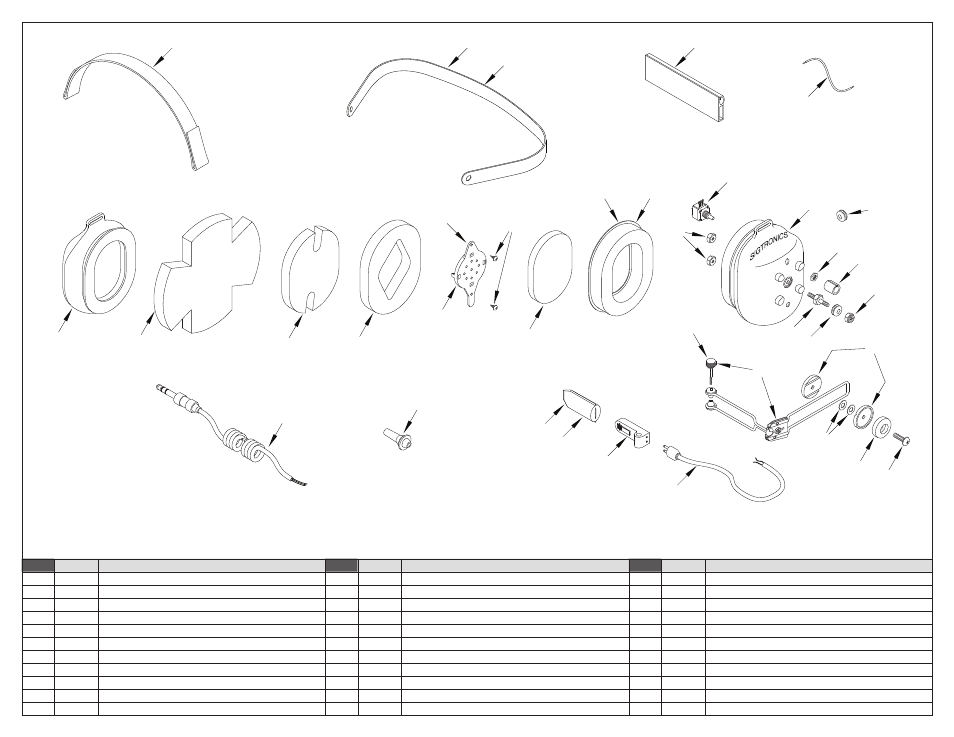

SIGTRONICS SE-2S HEADSET PARTS IDENTIFICATION BREAKDOWN
ITEM P/N DESCRIPTION ITEM P/N DESCRIPTION ITEM P/N DESCRIPTION
1 100049 GROMMET, 5/16 INCH, RUBBER 12 100370 RECEIVER MOUNT, HEADSET 23 100156 SCREW, THUMB, MICROPHONE BOOM, 2-56 X 1
2 100063 KNOB, 3/8 INCH, BLACK, VOLUME 13 100684 FOAM, SOUND ATTENUATING, FOR SLOTTED EAR CUP ONLY 24 100451 STUD, SE-2, EAR CUP TO BAND MOUNT
3 100077 POTENTIOMETER 14 100374 FOAM, SOUND ATTENUATING. NOTCHED, 1/2 INCH 25 800035 CABLE, HEADSET, STEREO, COILED
4 100079 RECEIVER, 300 OHM, MONO 15 100376 FOAM, SOUND ATTENUATING. RECEIVER HOLE, 1/2 INCH 26 800039 CABLE, MICROPHONE BOOM, 12 INCH
5 100108 SCREW, 4-40 X 1/4, THREAD FORMING 16 100379 FOAM, SOUND ATTENUATING, RECEIVER COVER, 1/4 INCH 27 800082 MICROPHONE, ELECTRET, M-80
6 100221 WIRE, #22, 19 STRAND, 4 INCH 17 100385 WASHER, SPRING, BOOM ADAPTER 28 900084 WINDSCREEN, MICROPHONE, FOAM, PACKAGED
7 100249 BOOM, ELECTRET MICROPHONE SUPPORT, SWIVEL 18 100408 WASHER, GROOVED BOOM 29 100415 WINDSCREEN, MICROPHONE, FOAM, BULK
8 100252 NUT, HEX, 8-32, LOCKING 19 100409 EAR CUP, PRINTED AND DRILLED, MIC & NON MIC SIDE 30 100567 GROMMET, SE-2 STUD
9 100568 STRAIN RELIEF, CABLE 20 100411 STRAP, HEADSET, SE-2, BLACK 31 100377 SCREW, 8-32 X 5/8, PHILLIPS HEAD
10 100368 KNOB, MICROPHONE BOOM ADAPTER, PLASTIC 21 800220 HEADBAND, METAL, BLACK, WITH GROMMETS, SE-2 32 100675 OPTIONAL – HEADBAND, METAL, BLACK, LARGE
11 100369 EAR SEAL, FOAM FILLED 22 100413 HEADBAND EXTRUSION, 4 IN., SE-2 33 100402 OPTIONAL – EAR SEAL, GEL FILLED
