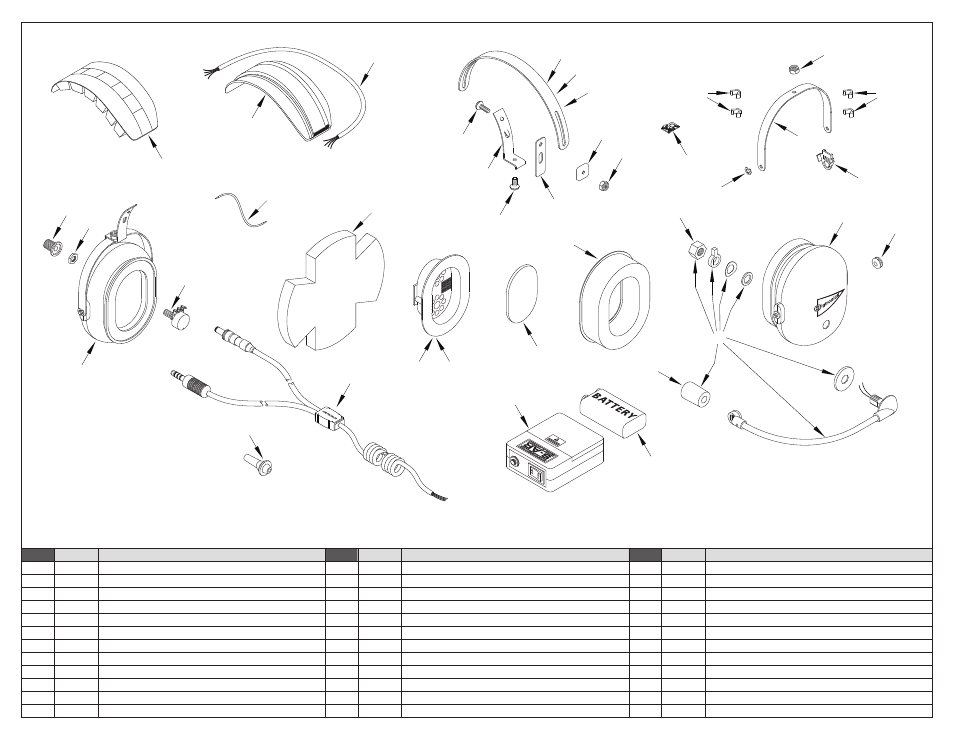

SIGTRONICS S-ARH HEADSET PARTS IDENTIFICATION BREAKDOWN
ITEM P/N DESCRIPTION ITEM P/N DESCRIPTION ITEM P/N DESCRIPTION
1 100049 GROMMET, 5/16 INCH, RUBBER 13 100679 WIRE, 4 CONDUCTOR, 28.5 INCHES 25 100604 BRACKET, YOKE SUPPORT WITH TANG, BLACK
2 100360 KNOB, BLACK, VOLUME 14 100603 YOKE, EAR CUP MOUNT, METAL, BLACK 26 100252 NUT, HEX, 8-32, LOCKING
3 100365 POTENTIOMETER, 2K 15 100686 EAR SEAL, GEL / FOAM FILLED 27 800113 CABLE, HEADSET, MONAURAL, COILED
4 100754 RECEIVER MODULE — VOLUME SIDE 16 900111 WINDSCREEN, MIC, 8 SERIES 28 100687 HEAD BAND EXTRUSION, 6.25 IN., S-AR
5 100755 RECEIVER MODULE — MICROPHONE SIDE 17 100373 SLIDE, YOKE BRACKET, LONG, NYLON 29 100602 HEADBAND, METAL, BLACK, STANDARD
6 800193 MICROPHONE & FLEX BOOM ASSEMBLY 18 100179 BATTERY, 9 VOLT 30 100610 CUSHION, HEADBAND, FOAM FILLED
7 100251 E-RING, EAR CUP TO YOKE RETAINER 19 100684 FOAM, SOUND ATTENUATING 31 100221 WIRE, JUMPER, #22, 4 INCHES
8 100597 NUT, HEX, 3/8-24, FLEX BOOM ADAPTER 20 100685 SOUND ATTENUATING, RECEIVER COVER 32 800114 POWER MODULE, BATTERY
9 100683 EAR CUP, PRINTED AND DRILLED, MIC & NON MIC SIDE 21 100569 STRAIN RELIEF, CABLE 33 100613 OPTIONAL – HEADBAND, METAL, BLACK, LARGE
10 100362 CLIP, CROSS-OVER, WIRE, PLASTIC 22 100258 CLIP, HEADBAND GUIDE, PLASTIC 34 100672 OPTIONAL – HEADBAND, METAL, BLACK, YOUTH
11 100363 SCREW, 8-32 X 1/2, PHILLIPS HEAD 23 100393 CLIP, ANTI-ROTATION, YOKE, PLASTIC
12 100364 SCREW, 8-32 X 3/8, PHILLIPS HEAD 24 800192 PREAMP
