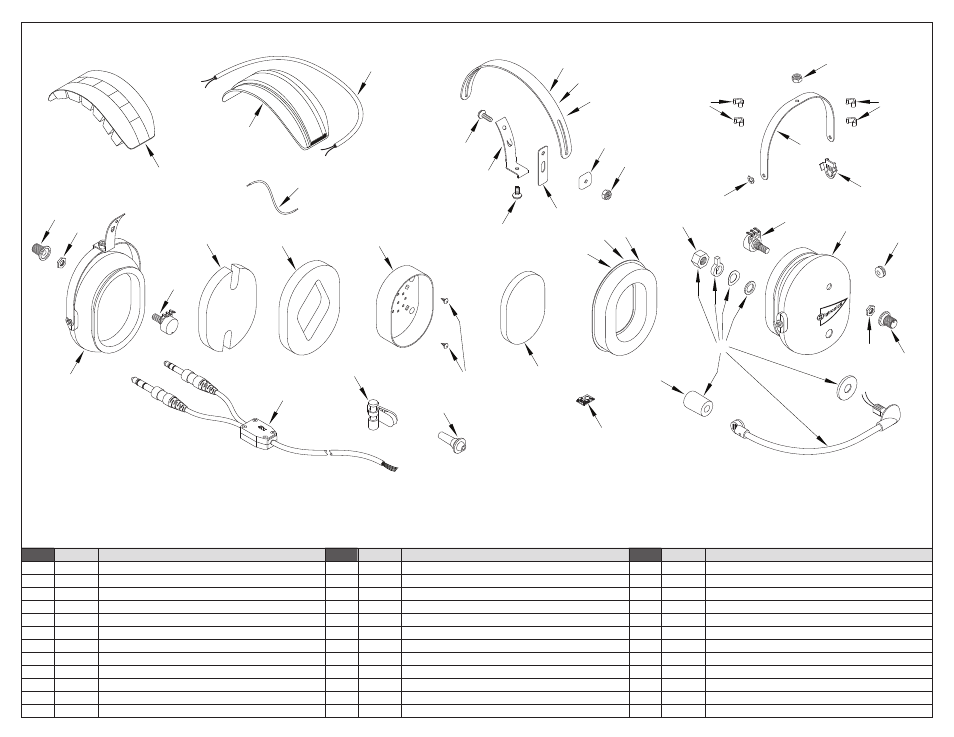

SIGTRONICS S-68S HEADSET PARTS IDENTIFICATION BREAKDOWN
ITEM P/N DESCRIPTION ITEM P/N DESCRIPTION ITEM P/N DESCRIPTION
1 100049 GROMMET, 5/16 INCH, RUBBER 13 100521 SCREW, 8-32 X 3/8, PHILLIPS HEAD, GOLD 25 100610 CUSHION, HEADBAND, FOAM FILLED
2 100360 KNOB, BLACK, VOLUME 14 100522 SCREW, 8-32 X 1/2, PHILLIPS HEAD, GOLD 26 100606 HEAD BAND EXTRUSION, 6.25 IN., S-68
3 100365 POTENTIOMETER, 2K 15 100524 NUT, HEX, 8-32, LOCKING, GOLD 27 100402 EAR SEAL, GEL FILLED
4 100763 RECEIVER / RECEIVER MOUNT, 300 OHM, STEREO 16 100516 BRACKET, YOKE SUPPORT WITH TANG, GOLD 28 100366 WIRE, 2 CONDUCTOR, #24, BLACK, 28 INCHES
5 100374 FOAM, SOUND ATTENUATING. NOTCHED, 1/2 INCH 17 100514 HEADBAND, METAL, GOLD, STANDARD 29 100221 WIRE, JUMPER, #22, 4 INCHES
6 100376 FOAM, SOUND ATTENUATING. RECEIVER HOLE, 1/2 INCH 18 100515 YOKE, EAR CUP MOUNT, METAL, GOLD 30 800219 CABLE, HEADSET, STEREO / MONO
7 100379 FOAM, SOUND ATTENUATING, RECEIVER COVER, 1/4 INCH 19 100520 E-RING, EAR CUP TO YOKE RETAINER, GOLD 31 100569 STRAIN RELIEF, CABLE
8 100597 NUT, HEX, 3/8-24, FLEX BOOM ADAPTER 20 100616 EAR CUP, PRINTED AND DRILLED, MIC & NON MIC SIDE 32 100579 CLIP, CLOTHING, HEADSET CABLE
9 800193 MICROPHONE & FLEX BOOM ASSEMBLY 21 100373 SLIDE, YOKE BRACKET, LONG, NYLON 33 100674 OPTIONAL – HEADBAND, METAL, GOLD, LARGE
10 900111 WINDSCREEN, MIC, 8 SERIES 22 100258 CLIP, HEADBAND GUIDE, PLASTIC 34 100673 OPTIONAL – HEADBAND, METAL, GOLD, YOUTH
11 800192 PREAMP 23 100393 CLIP, ANTI-ROTATION, YOKE, PLASTIC 35 100369 OPTIONAL – EAR SEAL, FOAM FILLED
12 100108 SCREW, 4-40 X 1/4, THREAD FORMING 24 100362 CLIP, CROSS-OVER, WIRE, PLASTIC 36 100686 OPTIONAL – EAR SEAL, ULTRA-GEL

 


 




































