- 11 -
www.SCEPTRE.com
SCEPTRE X505 HDTV User Manual
Identifying Front and Rear Panel

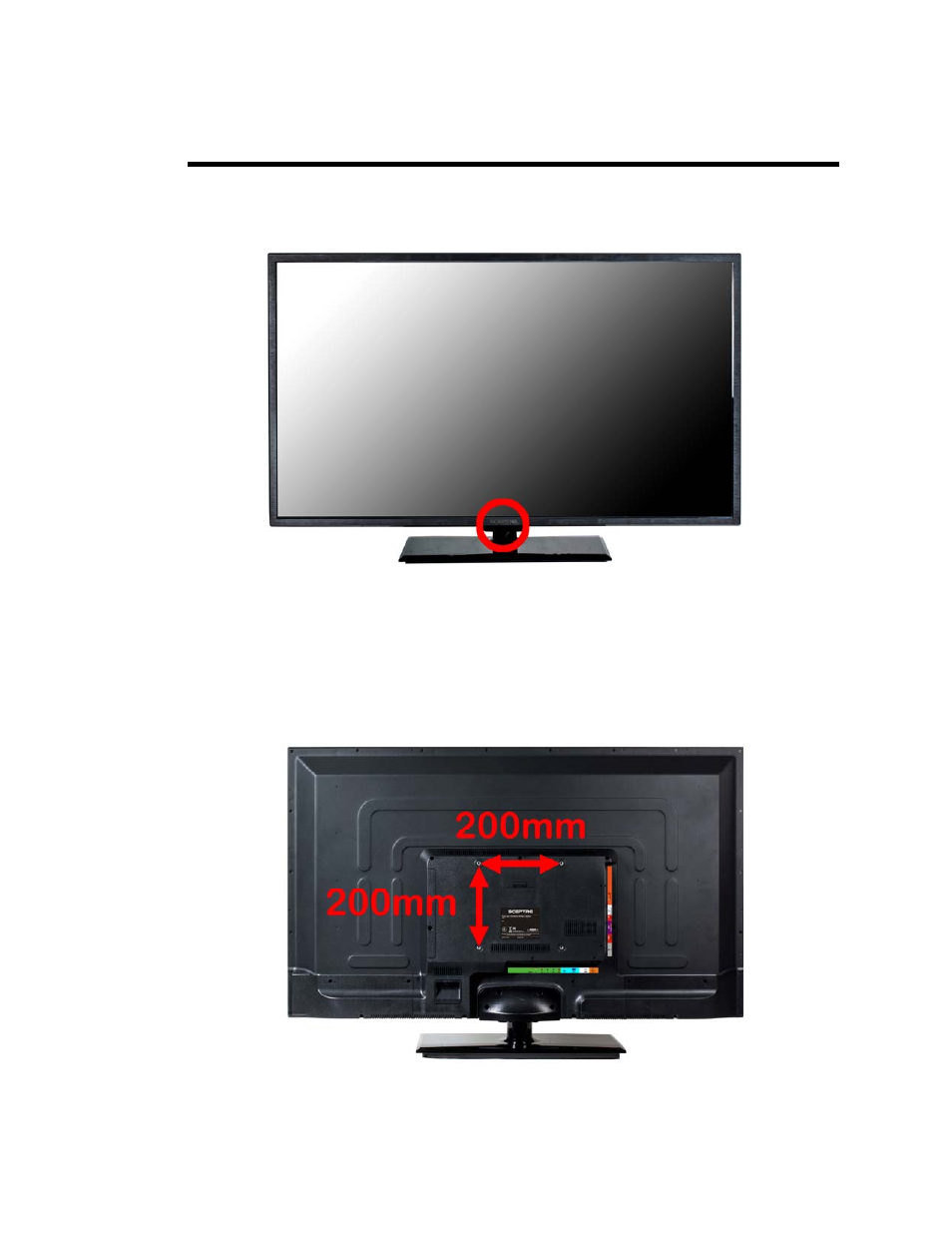

Front View
INDICATOR LIGHT – The light is red when power is plugged in but the TV is not turned on. The
light turns blue when the TV is turned on. The TV might take 10 – 12 seconds to power on. This
is considered to be normal.
REMOTE SENSOR – The remote sensor receives all the commands from the remote control.
Rear View Mounting Pattern
Mounting Specification: 200mm x 200mm using screw size M6. Length of screw should not exceed
16mm for the top 2 screws. The bottom 2 screws should not exceed 8mm.
