Carson SA-450-80 PG - Manual (Page 7)

TB0329B Page 7 of 7 10/18/03

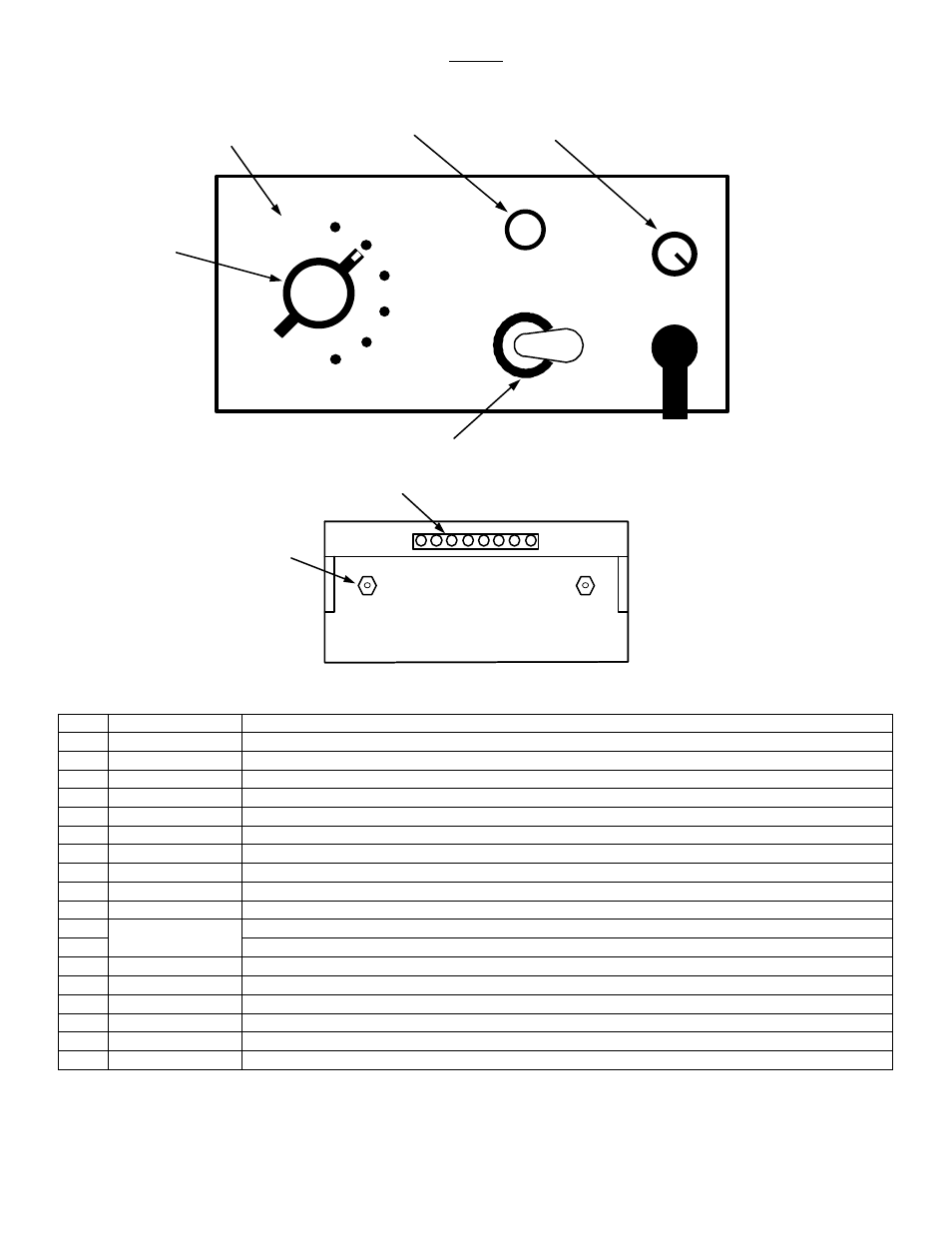

PARTS
RADIO RADIO
HORN HORN
MAN MAN
WAIL WAIL
YELP YELP
PHASER PHASER
SIREN SIREN
PA PA
VOL VOL
SA450 SA450
ON ON OFF OFF
4
9
1
7
3
5
6
8
10
2
Item Part # Description
CP3966 Bolt, mounting, 1/4-20 X 3/8 (2 required)
CP3676 Bracket, mounting
1 #8941 Button, red (C&K #894103000) (for pushbutton switch)
CP3886 Cable, wiring harness
2 640584-1 Connector, power (AMP #640584-1)
3 CP3547 Control, PA volume (350 ohm)
CP3675-1 Cover
4 CP4852 Knob, rotary function switch
5 CP4853 Knob, PA volume control
6 CP3840 Label, front panel for SA-450-80 Backlit
Lamp, T-1-3/4 14V Mini Wedge Base (JKL #73) (plugs into socket) #73 LAMP or
CM7382
Lamp, T-1-3/4 14V Bi-pin (Chicago Miniature Lamp, Inc. #7382) (used on older versions)
CP3691 Microphone (Replace with CP3570 microphone)
CP3633 Microphone clip with mounting screws
7 L111132MV02Q Switch, pushbutton siren (C&K # L111132MV02QA)
8 2FA53-73 Switch, toggle power (Carling Switch #2FA53-73)
9 CP3548 Switch, rotary function (top tabs folded and soldered)
10 CP4119 Transistor, output (2 required) (Industry standard TIP36C, Not Texas Instruments)
