Santec TH_Assembly User Manual
Page 2
THERMOSTATIC VALVE EXTENSION ASSEMBLY
2

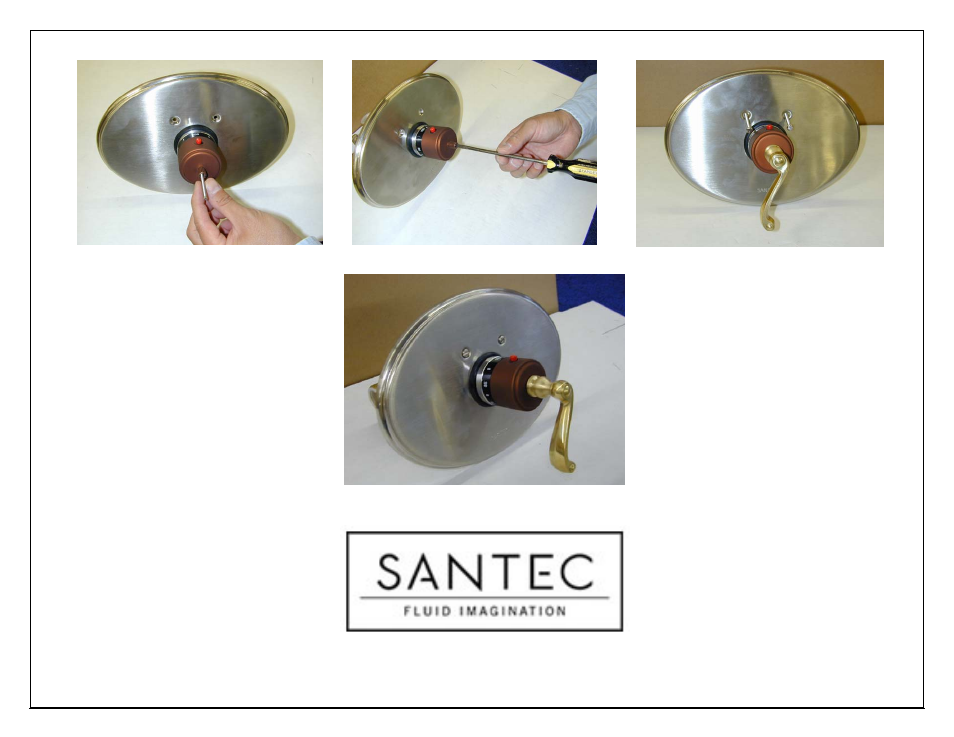

Insert the thermostatic extension screw through the
concentric hole.
Screw goes in to the blind hole so you need to use a thin
screwdriver to drive it in.
Put on the plate screws on the thermostatic plate.
Tighten up the screws and put on the handle. Also tighten up the
setscrew for the handle. Assembly is like shown in this figure.
