TRIM INSTALLATION
- Place trim plate over all thread.
- Keep handle set at position “I”, thread handle assembly onto all-thread by using escutcheon, being cautions
not to over tighten.
NOTE:
When attaching handle assembly it may be necessary to trim back broach and all-thread to close spacing.
INSTALLATION INSTRUCTIONS
PAGE 02

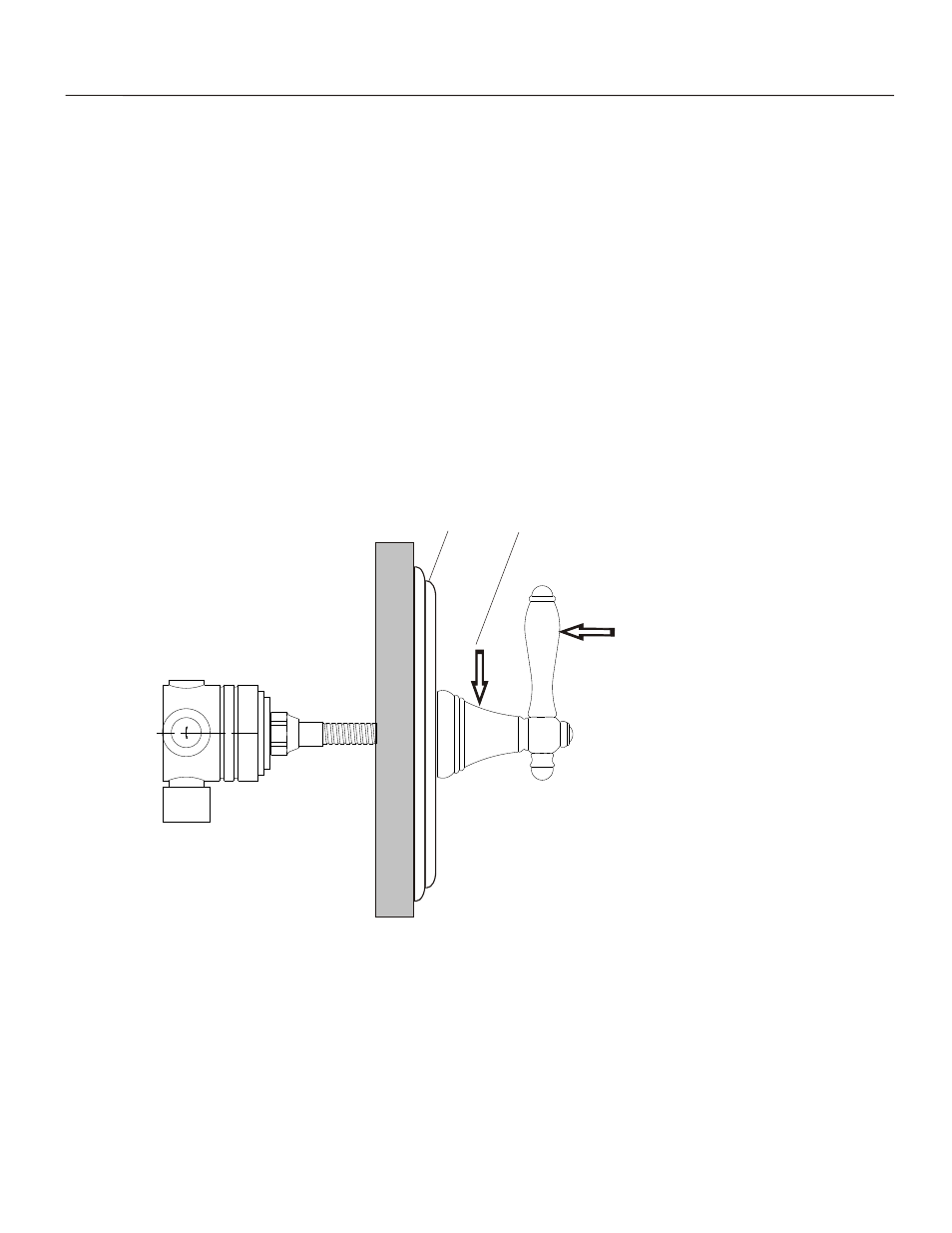

Handle
Trim Plate Escutcheon
DT-CO/ML/VL/PL/BL/GL/-_ _
