*Illustration may not depict actual products

0 3

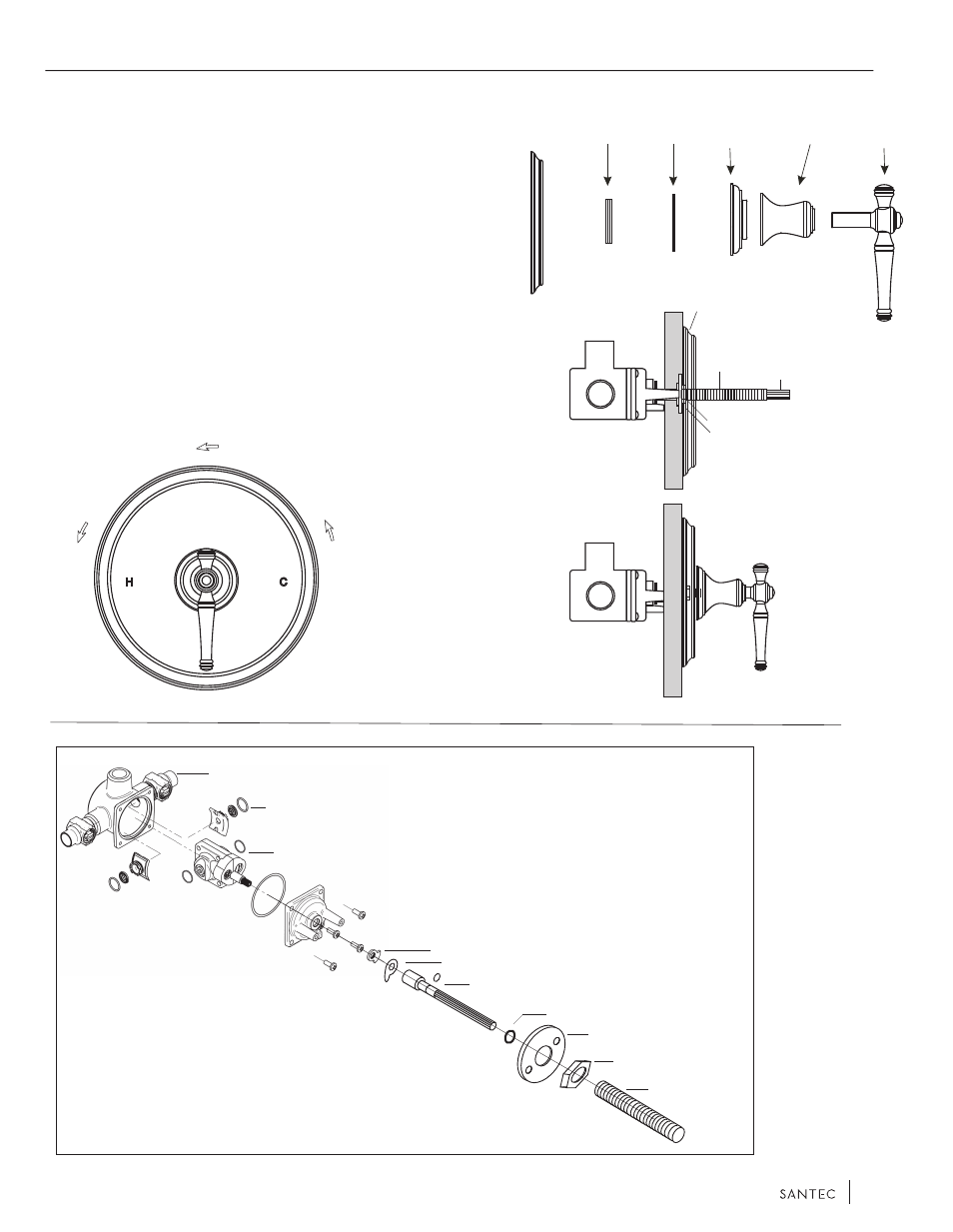

TRIM INSTALLATION

- Place the shower plate on the all thread.

- Screw the handle flange onto the handle bell and tighten it firmly.

- Screw the handle bell with handle flange, washer and adapter

onto the all thread and mark the position. Remove the handle bell

from the all thread and cut off the excess thread.

Reinsert the handle bell onto the all thread.

- Insert the handle onto the stem. Measure the excess between

the handle bell and the handle. Take off the handle and cut the

excess stem.

- Reinsert the handle onto the stem and tighten.

INSTALLATION INSTRUCTIONS

9531KL, KR, KT _ _

FLANGE WASHER HANDLE FLANGE HANDLE BELL HANDLE

Stem

All Thread

Lock Nut

Lock Plate

Trim Plate

COLD

WARM

WARMER

HOT

ILLUSTRATION B

PM-280 - SERVICE VALVE (OPTIONAL)

VALVE CARTRIDGE - TE010

MECHANICAL STOP- TE013

LIMIT STOP- TE014

PM-010 - STEM

TEFLON WASHER

PM-009 - LOCK PLATE

PM-012 - LOCK NUT

PM-011 - ALL THREAD

FILTER SCREEN

FLANGE ADAPTER

PLATE
