Santec 9009TX User Manual
9009tx, Modena collection, Angle stop with “tx” handle
MODENA COLLECTION
MODENA COLLECTION
ANGLE STOP WITH “TX” HANDLE
ANGLE STOP WITH “TX” HANDLE
9009TX __ - __
ITEM NUMBER
KEEP THIS INSTRUCTION BOOKLET FOR FUTURE REFERENCE
PAGE 01

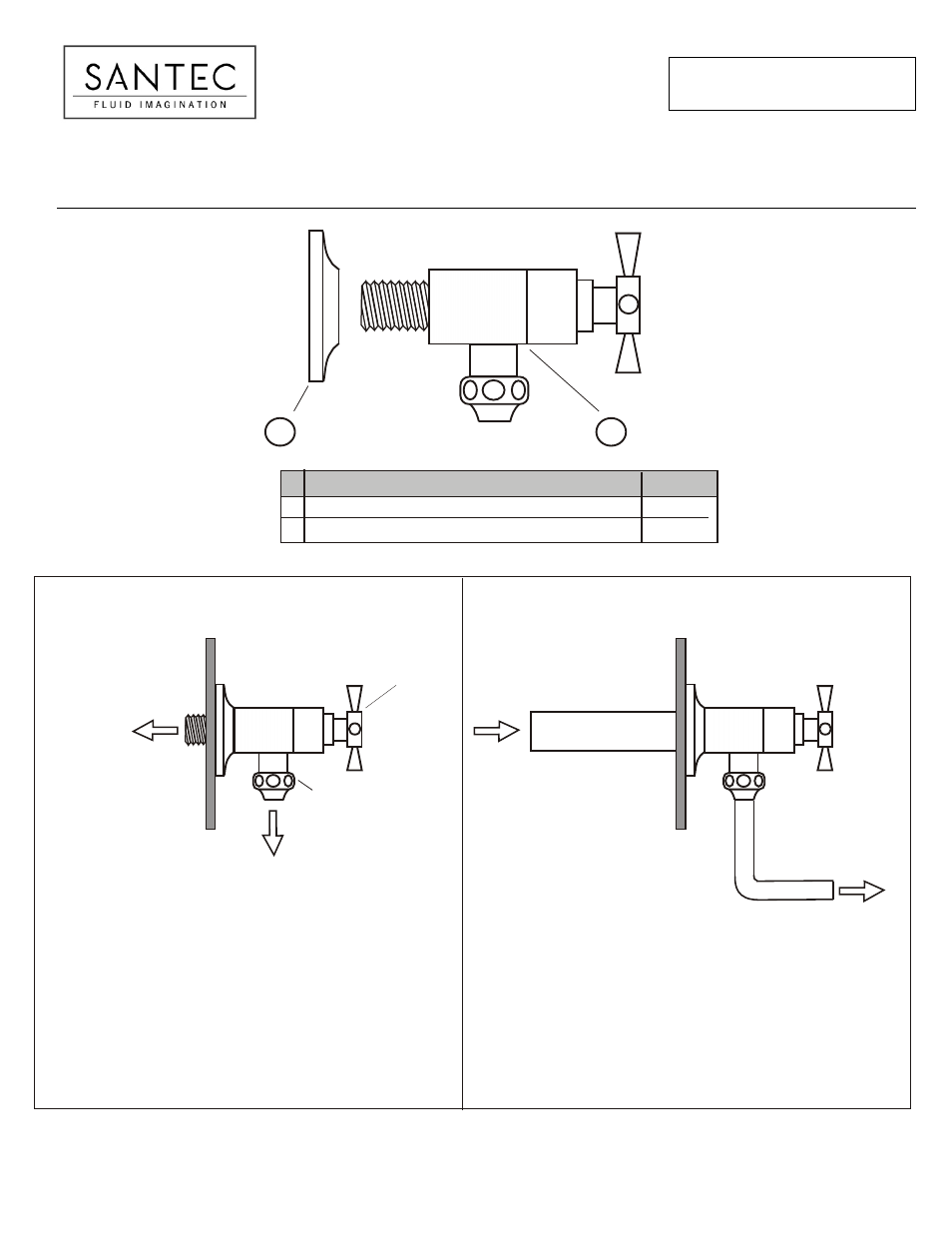

1
2
Flange Shut-off Valve*
Angle Stop/ Shut-off Corner Valve Assembly*
KB 290-3
KB 290-1
Part Description
#
Part #
* Please Specify the finish when you order this part
1
2
Wall
To water
inlet pipe
Water Outlet Pipe
Installation Steps:
-
Thread on the flange on the Angle stop shank.
- Place it against the wall, as shown in the figure.
- Extended Shank fits in to the wall. ½ Inch nipple for
inlet water connects to the shank.
- Body Shower hose connects to the shutoff valve
lock nut.
Lock Nut
- Firmly tighten up the connections.
- Assembly looks as shown in the figure.
½ Inch water
inlet pipe
Handle
Wall
Water Outlet
