Page 02

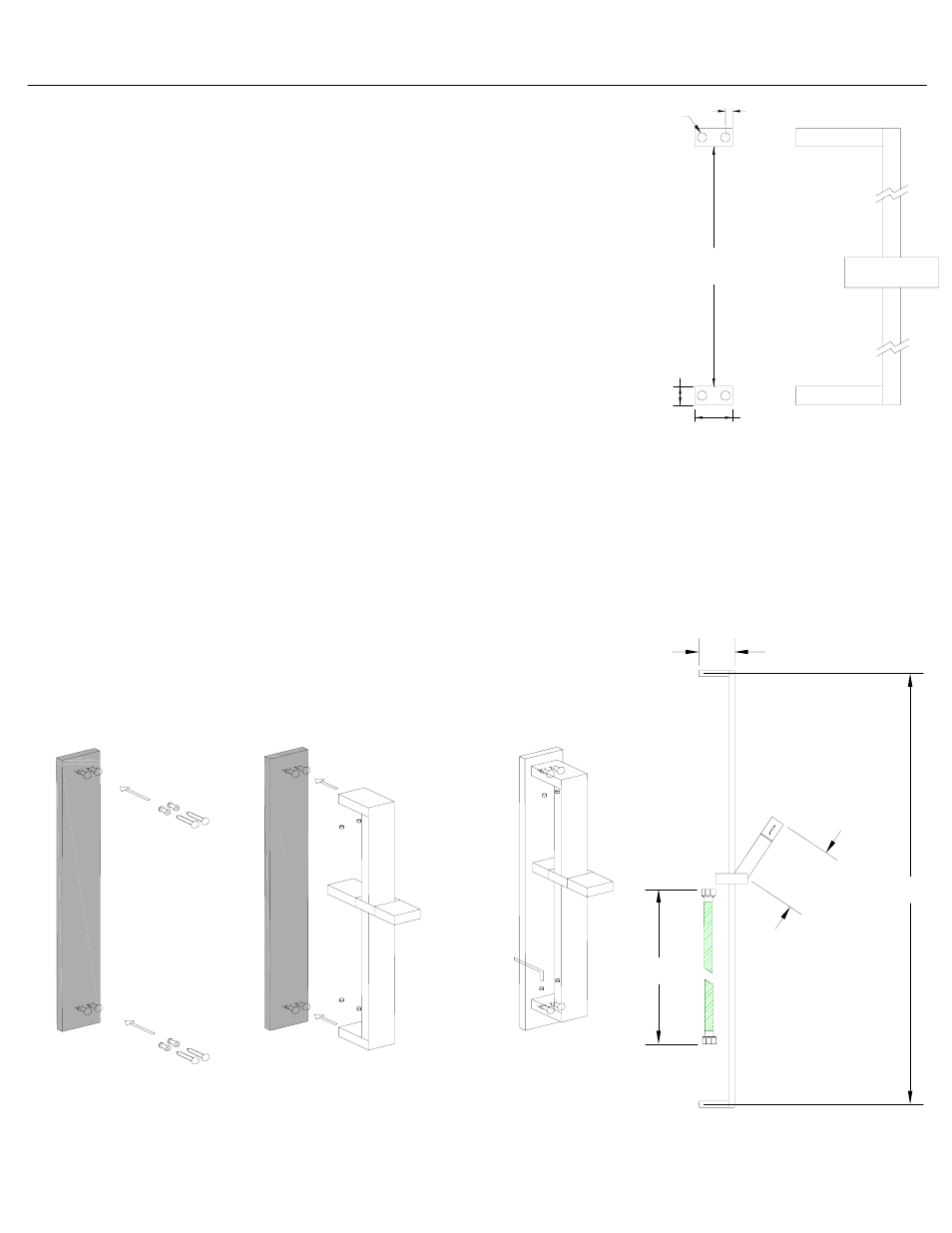

INSTALLATION INSTRUCTIONS
M ARKING
1. Mark the vertical distance of 22 and ¾ inch on the wall.
This is the center distance between the two rectangular
holders at the two ends of the slide bar.
2. Draw two circles having their center as two marked points.
3. Insert the screw into its collar and thread the screws
through the two small holes in the pedestal.
4. Tighten them firmly.
A
SSEMBLY
1. Using the Allen key provided, loosen the bar posts’ set screws.
2. Slip the left bar post onto the left mounting hardware post.
3. Align the bar post and secure it by tightening the set screws.
4. Align the right bar post and tighten the set screws firmly.
5. Check both handle posts to make sure they are firmly
secured. If not, tighten the set screws with the Allen key.
6. Put on the Personal hand held spray assembly in the slotted
groove as shown in the figure.
COLLECTION
Slide bar with Personal Shower
Ø0.355"
0.090"
1.175"
0.465"
22.75"
3.000"
6.
75
0"
23.500"
57"
W
A
L
L
W
A
L
L
W
A
L
L
A .
B . C .
