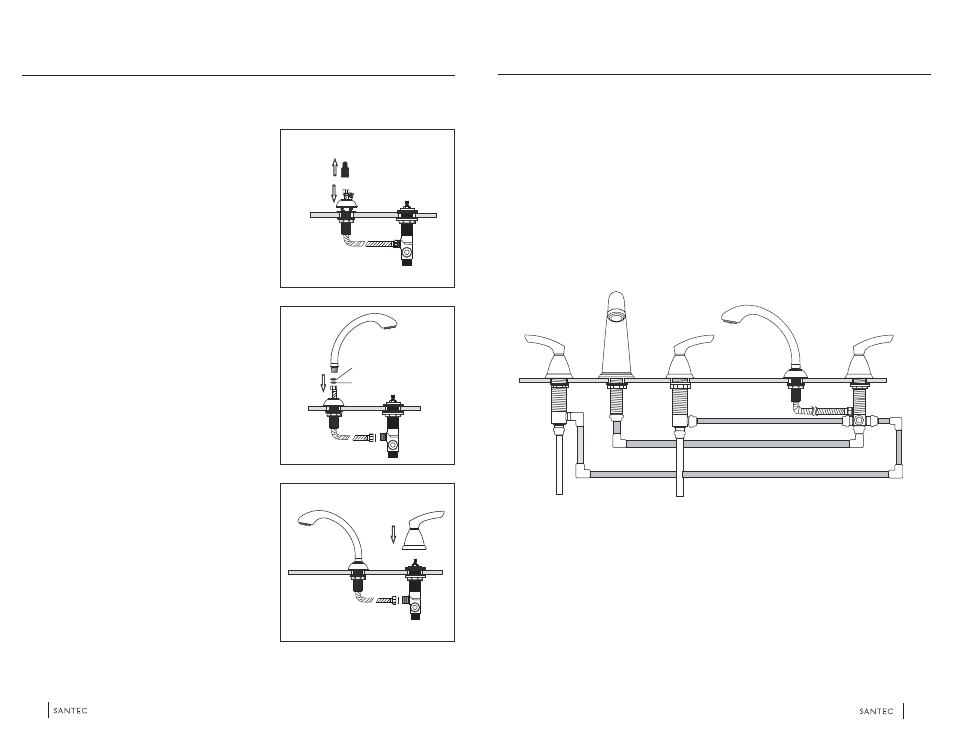

H a n d H e l d S h o w e r T r i m

3 . I n s t a l l a t i o n

Slip the flange through the hose and screw it onto the
shower flange mount.

After all the connections have been made, remove the spout’s aerator housing, basket, and washer.

Turn on the water on both hot and cold sides and flush the lines for 45 seconds.

Turn off the water and reinsert the washer, basket, and housing.

Turn on the water and check for leaks at all joints. If water leaks from any of the connections tighten the
connection until the leakage stops.

Pull tab cap

Flange mount

Diverter

Red washer

Rubber washer

Take off the slip tab cap.

Take off the rubber band with rubber washers and red
washers. MAKE SURE THAT THE HOSE DOES NOT
FALL INTO THE FLANGE MOUNT.

Install the hand held shower unit with the rubber
washers and the red washers onto the hose.

H a n d H e l d S h o w e r T r i m

4 . W a t e r T e s t & F l u s h t h e L i n e

SANTEC

Screw the handle trim onto the diverter’s base ring.
Make sure the handle lever is aligned properly.

Diverter

SANTEC

Hot

Valve

Cold

Valve

From Diverter
to Hand Shower

4-Port
Diverter

Hot Water

Supply

Cold Water

Supply

L A Y O U T O F C O M P L E T E L Y I N S T A L L E D R O M A N T U B F I L L E R W I T H H A N D H E L D S H O W E R

FROM DIVERTER TO SPOUT

FROM COLD VALVE TO DIVERTER
