TRIM PLATE & PLATE COVER
P r e s s u r e B a l a n c e d S h o w e r

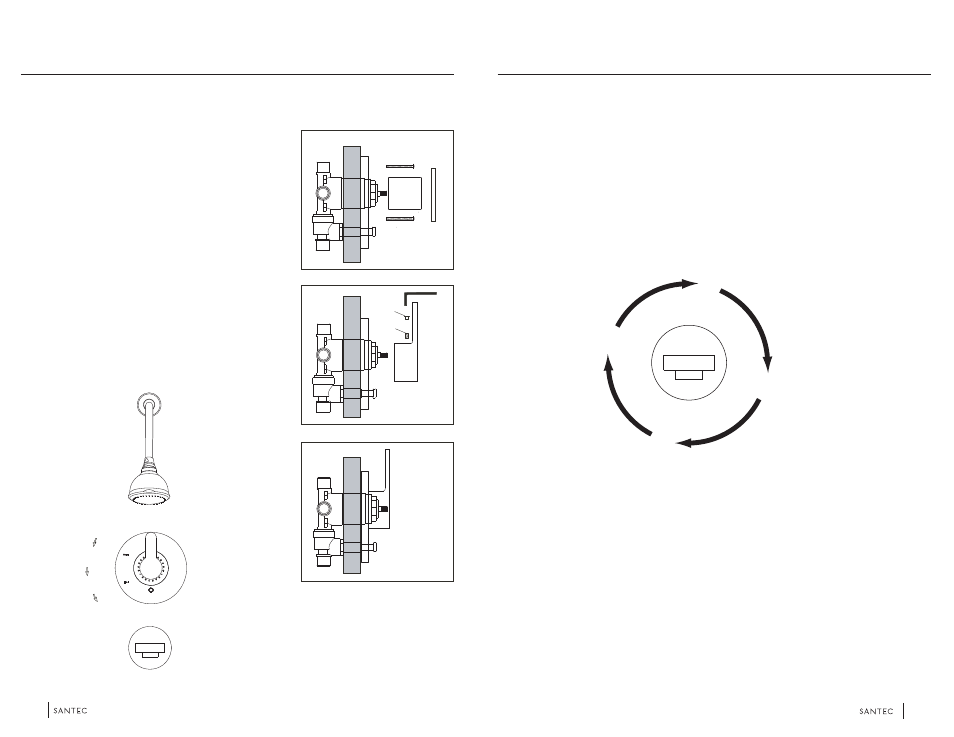

1. Trim Plate & Handle Installation
Fit sleeve onto valve until it bottoms out.
Place foam strip around the inner edge of the shower plate.
Press the shower plate against the wall.
Screw the 2 plate screws through the plate holes and onto the
valve’s screw holes. Tighten both screws firmly.
Fit the plate cover over the sleeve and press it all the way into
the trim plate. -
-
-
-
-
HANDLE
Insert the handle onto the valve stem. Turn the handle
clockwise until it reaches the end. Reposition the handle to
the desired position. The handle should be facing up at 12
o’clock position.
Using the provided Allen key, insert the set screw onto the
handle and press against the valve’s stem. Tighten it firmly.
Adjust the height of the handle if it is scraping against the
shower plate.
Insert the plug into the handle set screw hole. -
-
-
-
Plate cover
Handle
Set screw
Allen key
Plug
Trim plate
Sleeve
Finished wall
Plate screws
Trim plate
C OLD
WARM
WARMER
HOT
Pressure Balanced Shower
2. Tub Spout Installation
NOTE: The length of threaded pipe coming out from the finish wall should be no longer than 1/2”.
Wrap the pipe threading for the spout with Teflon tape. Then thread the spout onto the pipe until it is
secured with the spout facing downward.
WARNING: Do not use excessive force when threading the spout.
