INSTALLATION INSTRUCTIONS
COLLECTION
WALL MOUNT WIDESPREAD
HANDLE TRIM INSTALLATION
FLUSH BOTH SUPPLY LINES BEFORE INSTALLATION.
AFTER FLUSHING, SHUT OFF BOTH SUPPLY LINES.
MINIMUM HOLE SIZE FOR THE HANDLE TRIMS IS 1 5/8” AND MAXIMUM OF 1 3/4”
INSTALLING THE VALVE WITHOUT THE TRIM
If the valve is installed first without the trim, please leave
3 1/8” to 3 1/2” space between the center of the inlet and
the finished wall. This will leave enough thread leghth to
be adjusted when the trim is installed.
WARNING.
When tile construction is planned for the finished walls, allow
for extra thickness dimension when roughing the valves.

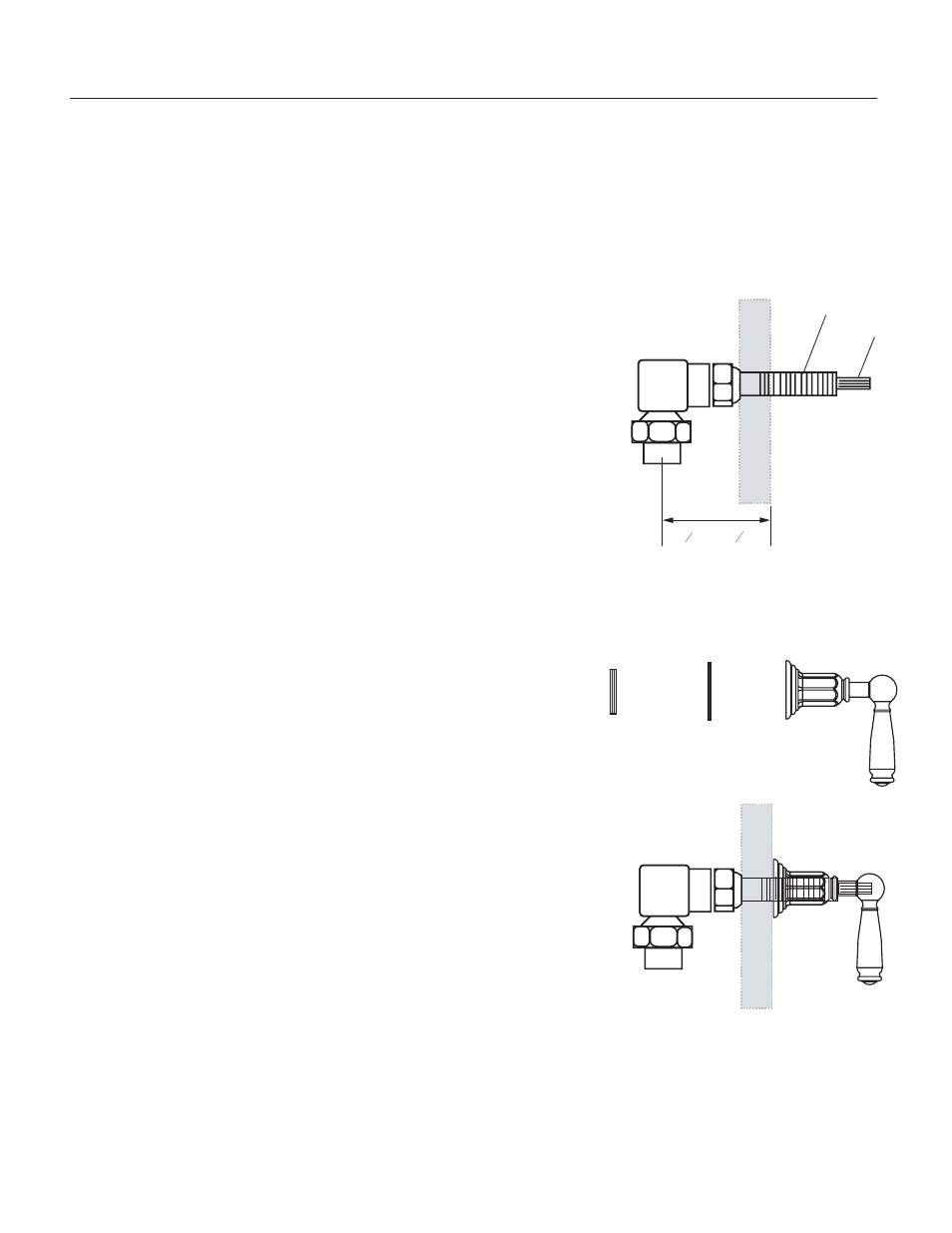

INSTALLING THE VALVE WITH THE TRIM
Install the valve onto the wall with 2” space between the
center of the valve inlet and the finished wall.
Thread handle set with the washer and adapter onto all
thread with the stem and mark the position.
Take off the handle assembly and cut off the excess thread
and stem.
Reinsert the handle trim assembly onto the all thread.
ALL THREAD
STEM
3 ~ 3
1
8
"
1
2
"
Finished wall
center of IN port
HANDLE TRIMS ARE READY FOR DROP IN INSTALLATION.
DO NOT DISASSEMBLE.
FLANGE WASHER
HANDLE BELL
HANDLE
FLANGE ADAPTER
Page 03
