Drain Plug
Drain Flange
Lift Rod Strap
Ball Rod
Drain Tube
Ball Rod Nut
Ball Rod Clip
Thumb Screw
Lock Nut
Washer
Gasket
Side hole
Lift Rod & Knob
INSTALLATION INSTRUCTIONS
PAGE 03
4322MG _ _
A B

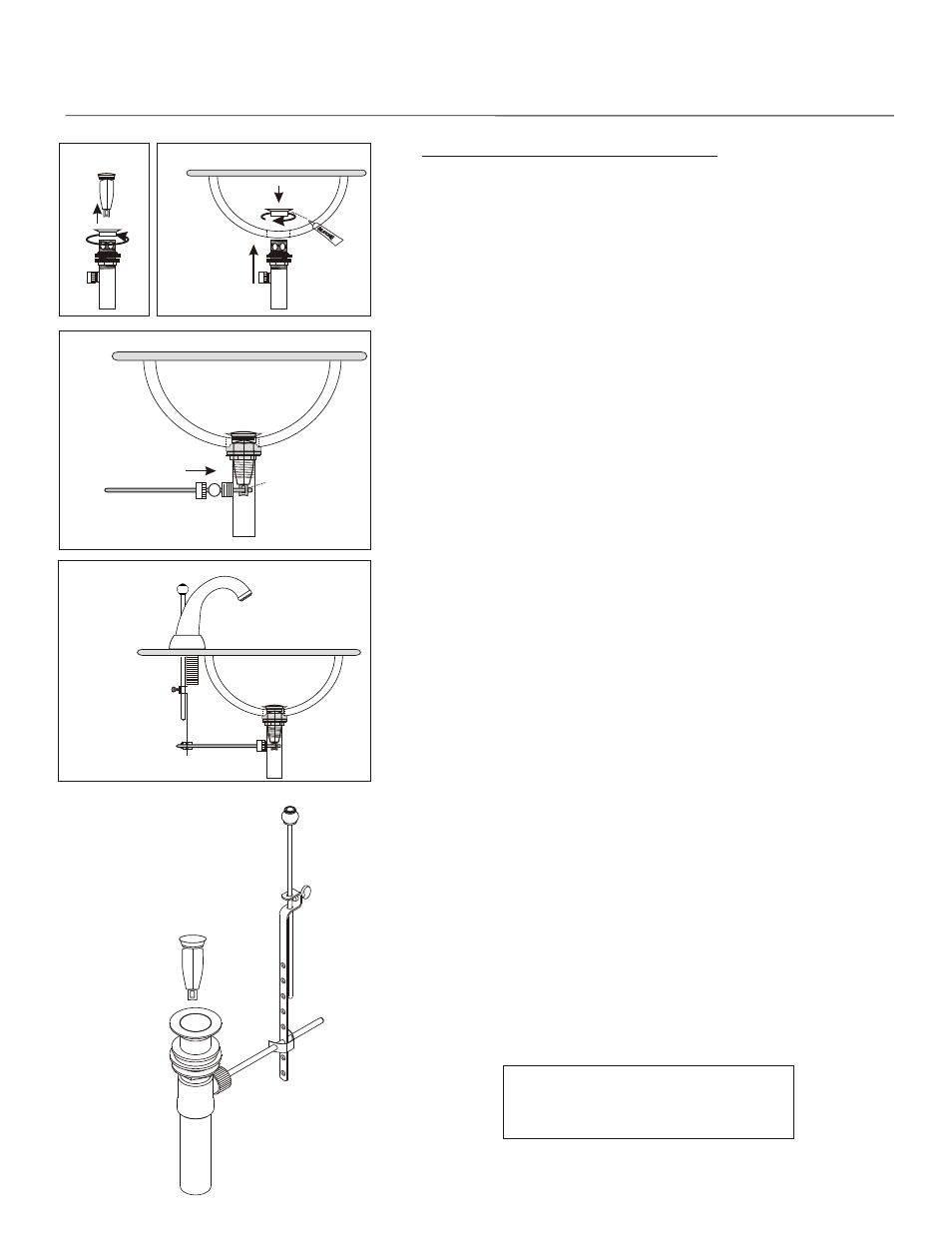

POP-UP DRAIN INSTALLATION
A
- Remove the drain flange and drain plug from pop-up assembly.
- Do not remove the gasket, washer and lock nut.
B
- Apply a ring of silicone caulking underneath the drain flange.
Do not use plumbers' putty.
- Insert the threaded end of the assembly up from the under the sink.
Completely thread the drain flange onto the top of the drain tube.
- Tighten the locknut from under the sink.
C
- Position the drain tube so the side hole in the pop-up faces you.
Place the drain plug into the drain tube, align its bottom hole with the side
hole.
- Place the short end of the ball rod into the side hole of the drain tube and
through the hole in the drain plug and tighten the ball rod nut so the ball rod
moves freely. NOTE: Do not over tighten.
D
- Rotate the pop-up so the ball rod faces the back wall and tighten the lock
nut giving it an extra 1/4 turn. Hand tighten the nut at the connection with
P-trap. Test the rod to make sure it raises and lowers freely.
- Slip your faucet's pop-up lift rod through the holes at the top of the lift rod
strap and hand tighten the thumb screw. Push the ball rod down so the
drain plug is in the up position.
- Slip the one leg of the ball rod clip onto the ball rod and then slide the lift
rod strap onto the ball rod using the nearest hole. Then slide the second
leg of the clip onto the rod. Test the pop-up for smooth operation and
adjust the strap if necessary.
C
D
ball rod
drain plug hole
lift rod strap
ball rod clip
thumb screw
