Installation instructions, Trim installation – Santec 4132BL User Manual
Page 3

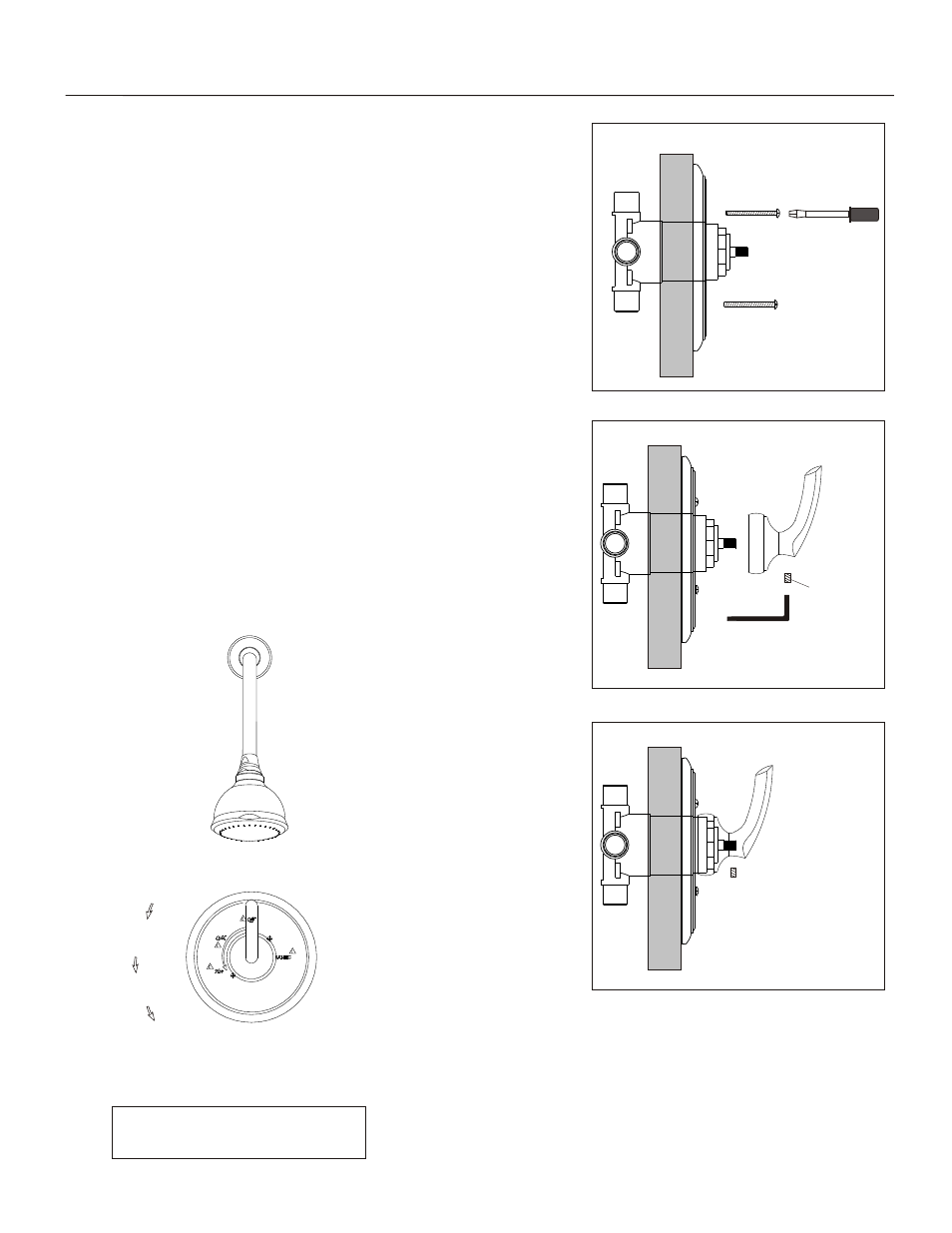

TRIM INSTALLATION
TRIM PLATE
- Place foam strip around the inner edge of the shower plate.
- Press the shower plate against the wall.
- Screw the 2 plate screws through the plate holes and onto the valve’s
screw holes. Tighten both screws firmly.
HANDLE
- Insert the Handle onto the Valve Stem. Turn the handle clockwise
until it reaches the end. Reposition the handle to the desired
position. The handle should be facing up at 12 o’clock position.
- Using the provided Allen Key, insert the Handle Set Screw onto the
Handle and press against the valve’s stem. Tighten it firmly.
- Adjust the height of the Handle if it is scraping against the shower
plate.
INSTALLATION INSTRUCTIONS
PAGE 03
TRIM PLATE
FINISHED WALL
PLATE SCREWS
TRIM PLATE
HANDLE
Santec Inc.
3501 Challenger Street, Torrance, CA 90503
Tel: (310) 542-0063 Fax (310) 542-5681
www.santecfaucet.com
08/07
HANDLE
SET SCREW
ALLEN KEY
4132BL _ _ - TM
COLD
WARM
WARMER
HOT
