INSTALLATION INSTRUCTIONS
PAGE 02

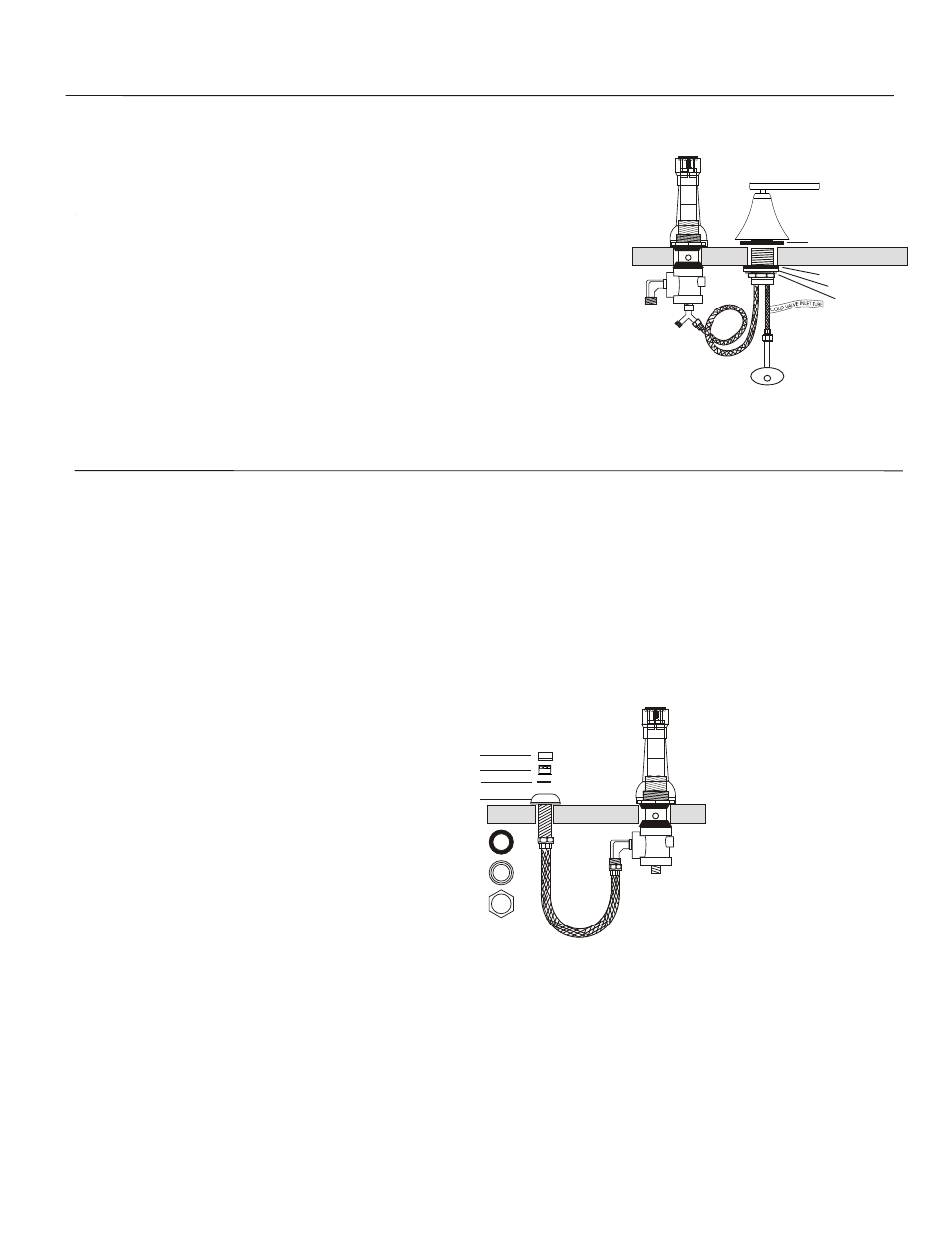

HANDLE TRIM INSTALLATION
HANDLE TRIM IS READY FOR DROP IN INSTALLATION.
DO NOT DISSASEMBLE.
- Remove the valve body mounting hardware from valve body.
Hot valve assembly “Red” to be mounted on left.
Cold valve assembly “Blue” to be mounted on right.
- Apply a ring of silicone caulking around the handle hole on bidet top.
DO NOT USE PLUMBERS' PUTTY, WHICH CAN DAMAGE FINISH.
- Slip valve through appropriate hole on top of bidet. Reinstall valve body mounting
hardware, fiber washer and valve body locknut. Align handles with respect to the bidet,
and tighten valve body locknut until secure.
- Aim outlet hoses towards bidet wye and attach securely to avoid leakage.
SANTEC SANTEC
Rubber washer
Rubber washer
Metal washer
Brass lock nut
INLET HOSE INLET HOSE
SPRITZER INSTALLATION
- Apply a ring of silicone caulking around hole designated for spritzer application.
DO NOT USE PLUMBERS' PUTTY, WHICH CAN DAMAGE FINISH.
- Drop spritzer through the appropriate hole in bidet, attach mounting hardware and
tighten to avoid leakage.
- Attach 24” hose from spritzer to bidet elbow and tighten to avoid leakage.
Aerator Connecting hose
Aerator Shank Lock Nut
Metal Washer
Black Rubber Washer
Aerator base
Aerator Washer
Aerator Basket
Aerator Housing
