INSTALLATION INSTRUCTIONS
PAGE 03

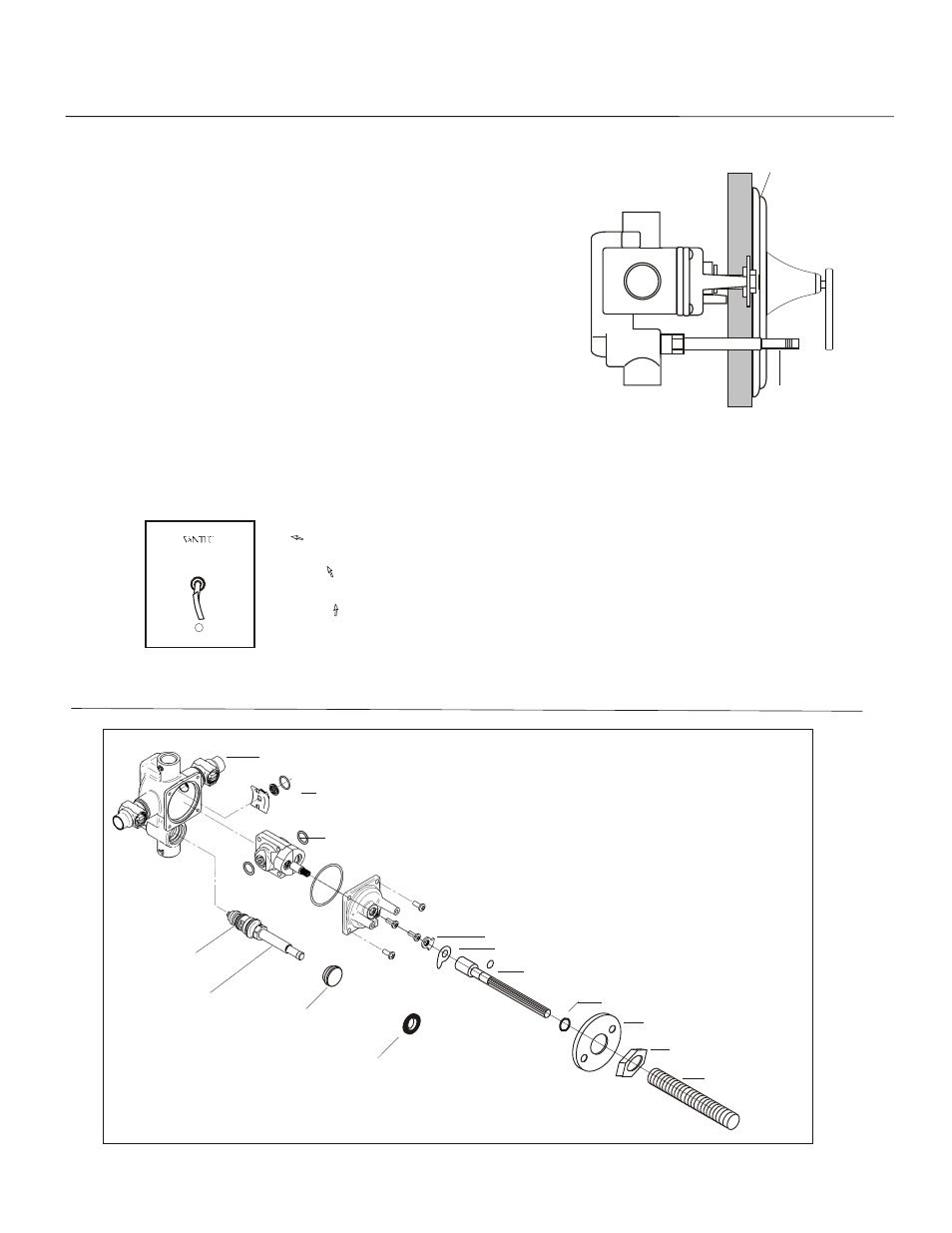

ILLUSTRATION C
PM-280 - SERVICE VALVE (OPTIONAL)
VALVE CARTRIDGE - TE010
MECHANICAL STOP- TE013
LIMIT STOP- TE014
PM-007-1 - STEM
TEFLON WASHER
PM-009 - LOCK PLATE
PM-012 - LOCK NUT
PM-011 - ALL THREAD
FILTER SCREEN - TE012
DIVERTER CARTRIDGE- TE050
PM-460 - DIVERTER SLEEVE
DIVERTER KNOB-P0258
PLATE GROMMET- PM-465
Pressure Balanced Tub/Showe
Trim Only
Trim Plate
S
T
Diverter Rod
H H C C
COLD
WARM
WARMER
HOT
TRIM INSTALLATION
-Place the shower plate on the all thread.
-Keeping handle set at the 6 o’clock position, thread handle assembly
onto all-thread by using escutcheon being caution not to over tighten.
-Place the Trim Plate Grommet onto the designated hole for the
diverter Rod on the Trim Plate.
-Screw the Diverter Knob onto the Diverter Rod.
NOTE:
When attaching handle assembly it may be necessary to trim back broach and all the thread to close spacing.
